TRANSMISSION
LS650F SAVAGE 1995 (S) USA (E03)

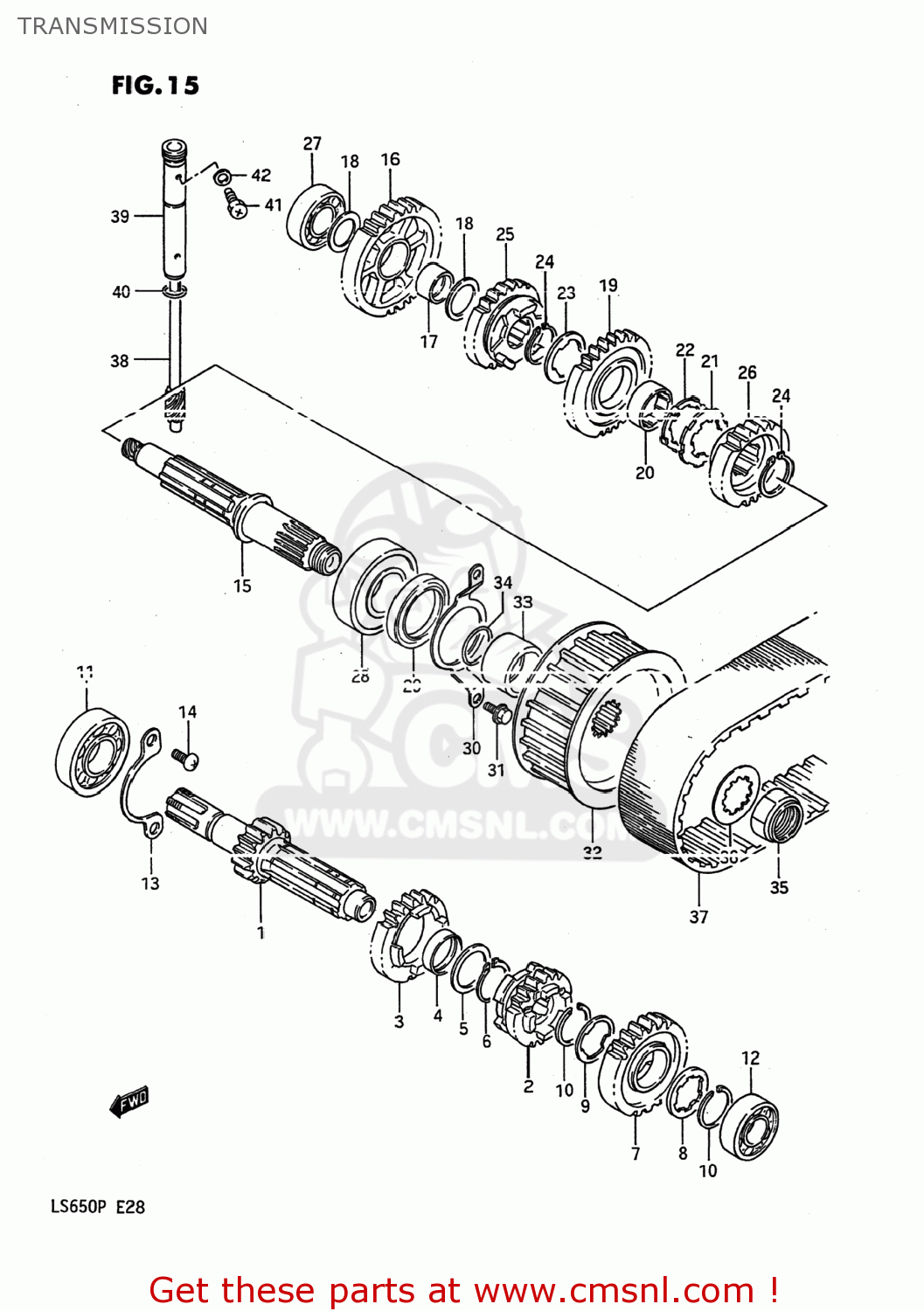

Transmission diagram LS650F SAVAGE 1995 (S) USA (E03)
TRANSMISSION LS650F SAVAGE 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412124B02
ref: 1
COUNTER SHAFT
€ 162.50
2
2422124B02
ref: 2
GEAR,SECOND DRIVE
€ 54.00
3
2423124B01
ref: 3
GEAR,THIRD DRIVE
€ 67.00
4
0930025020
ref: 4
BUSH(25X29X8)
€ 10.00
5
0821125351
ref: 5
WASHER
€ 3.00
6
0938025003
ref: 6
RING,SNAP
€ 3.00
7
2424124B02
ref: 7
GEAR,FOURTH DRIVE
€ 47.00
8
0916725020
ref: 8
WASHER
€ 6.00
9
0916725012
ref: 9
WASHER,LOCK
€ 3.50
10
0938025010
ref: 10
CIRCLIP
€ 3.00
11
0926222014
ref: 11
09262-22028
BEARING
€ 59.50
12
0926217027
ref: 12
BEARING(17X40X12)
€ 25.00
13
2474124B00
ref: 13
RETAINER,CNTR SHAFT BEARING
€ 6.00
14
0211206126
ref: 14
02112-0612A
SCREW
€ 1.50
15
2413024B01
ref: 15
SHAFT,DRIVE
€ 140.00
16
2431124B00
ref: 16
GEAR,1ST DRIVEN
€ 100.50
17
0930020032
ref: 17
BUSH(20X24X13)
€ 10.00
18
0821120301
ref: 18
WASHER
€ 3.00
19
2432124B00
ref: 19
GEAR,SECOND DRIVEN
€ 71.50
20
2433224500
ref: 20
24332-24510
BUSHING
€ 9.50
21
0916925001
ref: 21
WASHER
€ 2.00
22
0916725013
ref: 22
WASHER,LOCK
€ 2.50
23
0916725016
ref: 23
WASHER,LOCK
€ 3.00
24
0938025003
ref: 24
RING,SNAP
€ 3.00
25
2433124B02
ref: 25
GEAR,THIRD DRIVEN
€ 80.50
26
2434124B01
ref: 26
GEAR,FOURTH DRIVEN
€ 67.50
27
0926220086
ref: 27
09262-20106
BALL BEARING 20X42X12
€ 20.50
28
0926225083
ref: 28
09262-25125
BALL BEARING 25X62X17
€ 49.00
29
0928336003
ref: 29
SEAL,OIL(36X50X6)
€ 12.00
30
2475124B00
ref: 30
RETAINER,DRIVE SHAFT OIL SEAL
€ 4.50
31
0154706127
ref: 31
BOLT
€ 2.00
32
2751024B01
ref: 32
PULLEY,FR
€ 81.50
33
2753124B00
ref: 33
SPACER,FR PULLEY
€ 18.50
34
0928024008
ref: 34
09280-24010
O-RING
€ 5.50
35
0915920004
ref: 35
NUT
€ 12.00
36
0916725014
ref: 36
09167-25019
WASHER
€ 2.50
37
2761124B00133
ref: 37
BELT,DRIVE
€ 416.50
38
2613124B00
ref: 38
GEAR,SPEEDOMETER DRIVEN
€ 21.50
39
2648124B01
ref: 39
SLEEVE,TACHOMETER DRIVEN GEAR
€ 28.50
40
0928010001
ref: 40
O RING(D:1.3,ID:9.6)
€ 2.00
41
0913506002
ref: 41
09135-06501
BOLT
€ 2.50
42
0916806004
ref: 42
GASKET(6.2X11X1).2 (NAS)
€ 1.50
