FRAME
LS650P SAVAGE 1987 (H) USA (E03)

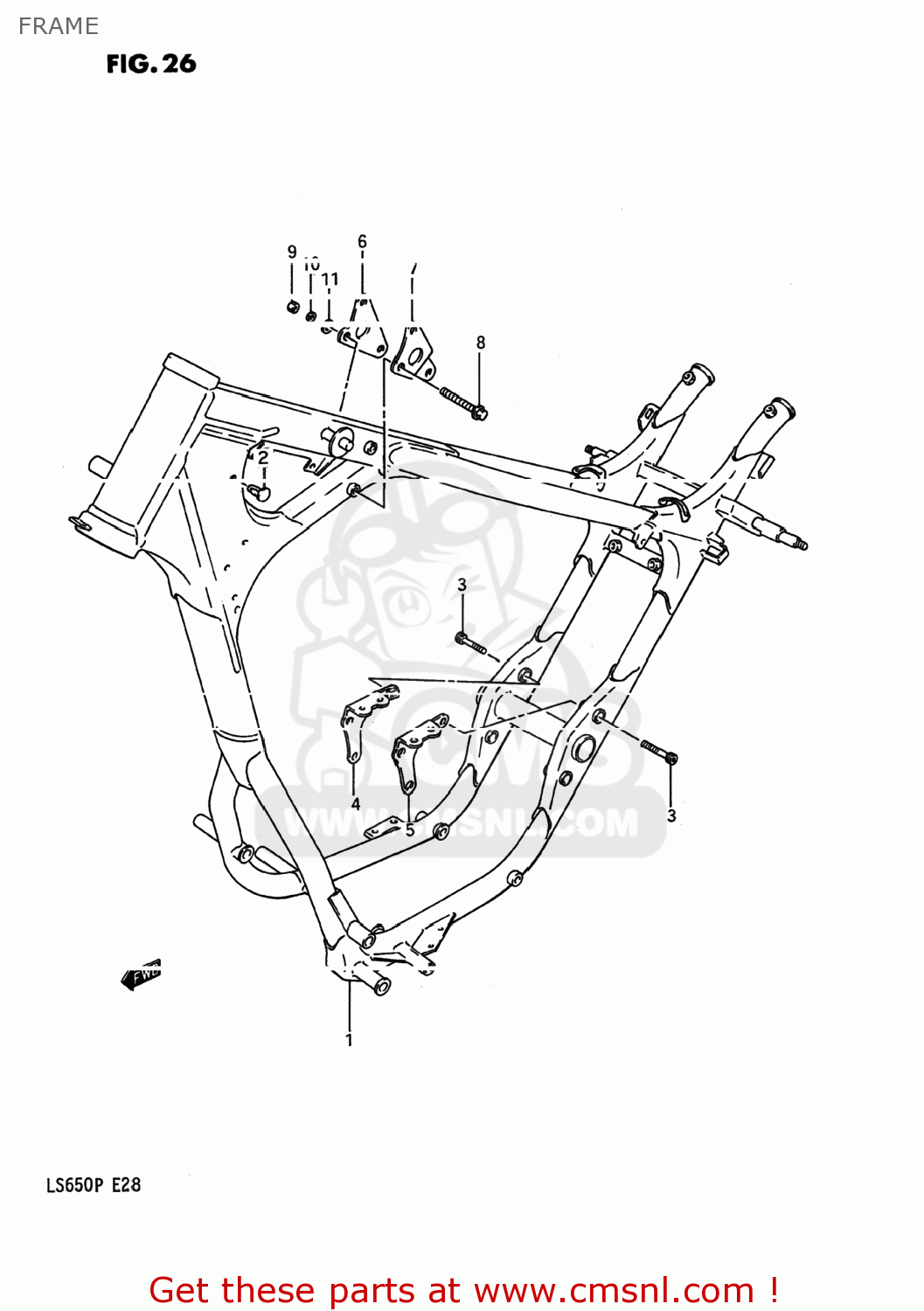

Frame diagram LS650P SAVAGE 1987 (H) USA (E03)
FRAME LS650P SAVAGE 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110024B00019
ref: 1-1
41100-24B01-019
FRAME
€ 562.50
1-2
4110024B01019
ref: 1-2
FRAME(BLACK)
€ 562.50
2
0940906306
ref: 2
CLIP
€ 2.00
3
0910608074
ref: 3
BOLT(8X40)
€ 3.50
4
4197024B00019
ref: 4
PLATE,ENGINE MOUNT NO.4,R
€ 10.50
5
4198024B00019
ref: 5
PLATE,ENGINE MOUNT NO.4,L
€ 10.50
6
4199124B00019
ref: 6
PLATE,ENGINE MOUNT NO.5,R
€ 7.50
7
4199224B00019
ref: 7
PLATE,ENGINE MOUNT NO.5,L
€ 7.50
8
0910308037
ref: 8
BOLT(8X67)
€ 6.50
9
0831921086
ref: 9
08319-2108A
NUT,T/F SHIFT LEVER
€ 1.50
10
0832121086
ref: 10
08321-0108A
WASHER,LOCK,8.
€ 2.50
11
0832211086
ref: 11
08322-0108A
WASHER 8MM
€ 1.50
