HEADLAMP HOUSING - FRONT FENDER

LS650P SAVAGE 1987 (H) USA (E03)

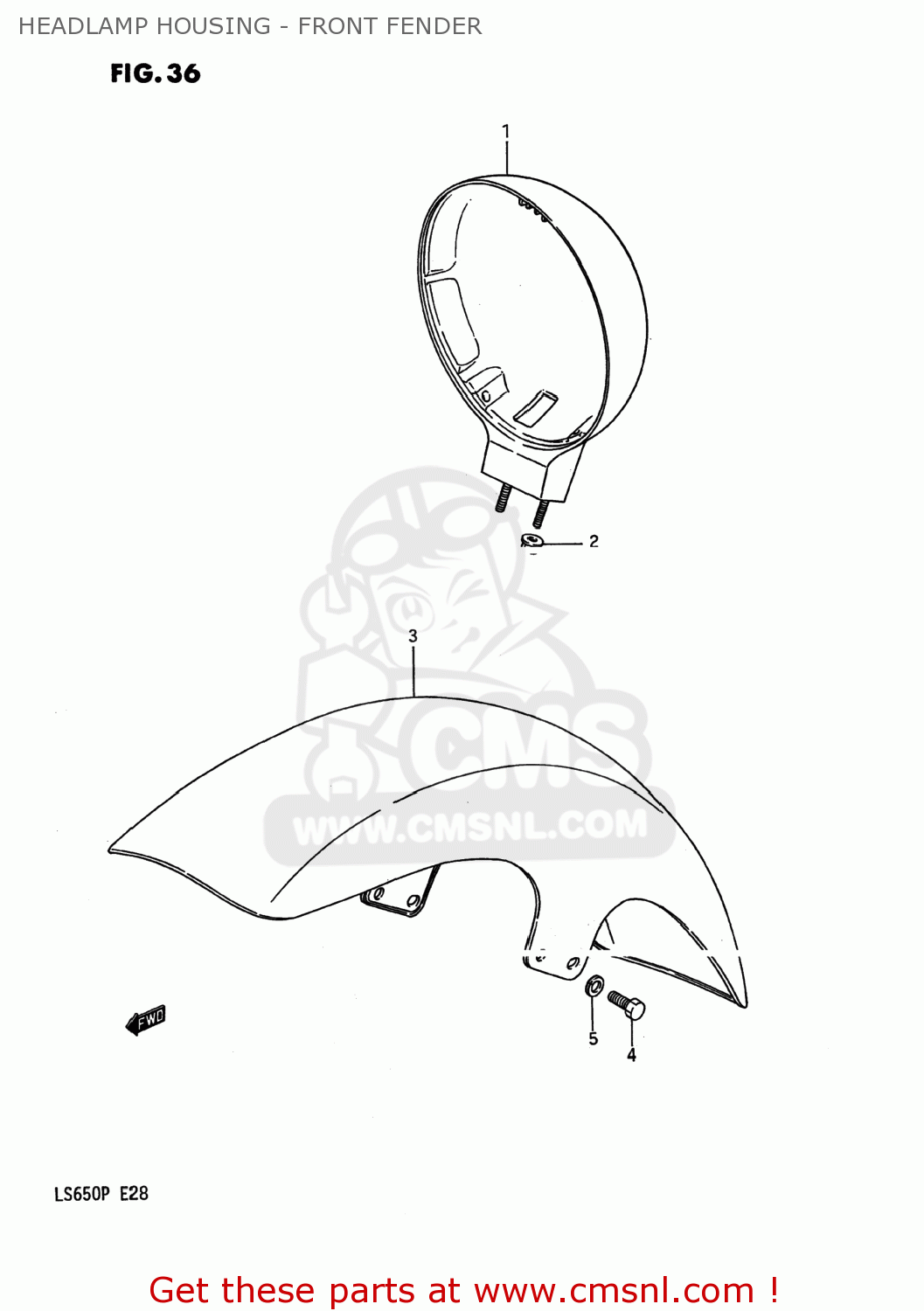

Headlamp housing - front fender diagram LS650P SAVAGE 1987 (H) USA (E03)

prices are in EUR

ref

part #

description

quantity

5181038A01
ref: 1
51810-38A03

HOUSING,HEADLAMP

€ 111.00

0831931067
ref: 2

NUT

€ 2.50

3-1

5311024B0100J
ref: 3-1
53110-24B01-13L

FENDER,FRONT

€ 208.50

3-2

5311024B0113Z
ref: 3-2
53110-24B01-33J

FENDER,FRONT

€ 259.50

3-3

5311024B0124V
ref: 3-3
53110-24B01-13L

FENDER,FRONT

€ 208.50

3-4

FENDER,FRONT

€ 208.50

3-5

5311024B0133H
ref: 3-5
53110-24B01-13L

FENDER,FRONT

€ 208.50

4-1

0110706167
ref: 4-1
01500-06167

BOLT

€ 3.00

4-2

0113706167
ref: 4-2
01570-06167

BOLT

€ 2.50

0832121067
ref: 5
08321-01067

WASHER,LOCK

€ 2.50

all assemblies
