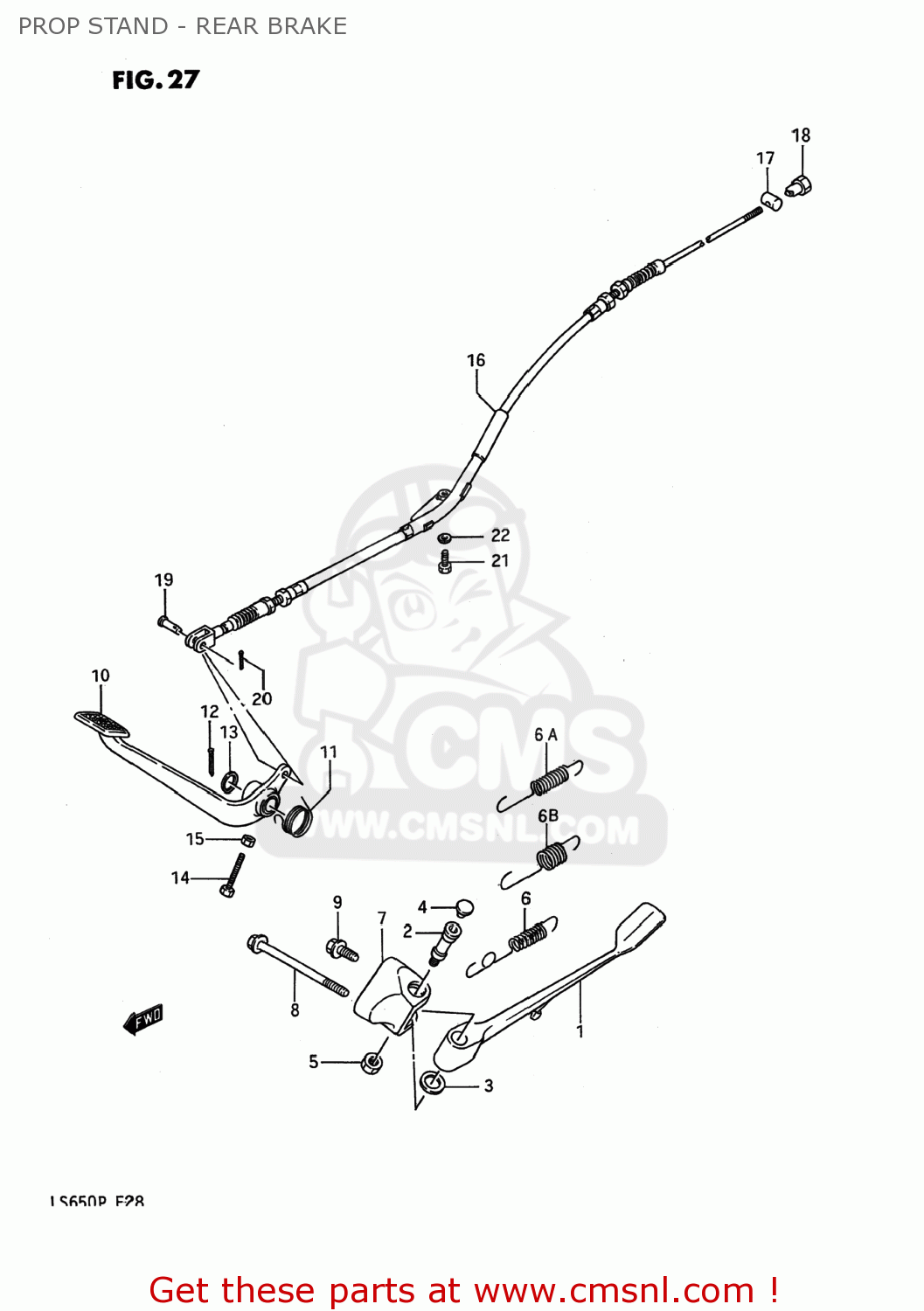

PROP STAND - REAR BRAKE - LS650P SAVAGE 1987 (H) USA (E03)

ref

part #

description

quantity

1-1

4231138A10
ref: 1-1

STAND,PROP

€ 64.00

1-2

4231024B00
ref: 1-2
42310-24B01

STAND,PROP

€ 92.00

2-1

4234138A00
ref: 2-1
42341-38B01

BOLT,PROP STAND

€ 9.00

2-2

4234138B01
ref: 2-2

BOLT,PROP STAND

€ 9.00

3

0822115245
ref: 3
09181-15158

THRUST WASHER

€ 2.50

4

4357524B00
ref: 4

CAP,PROP STAND BOLT

€ 7.00

5

0831022107
ref: 5
08310-00107

NUT

€ 2.50

6

0944315027
ref: 6
09443-15027-XC0

SPRING

€ 7.00

6A

0944315034
ref: 6A

SPRING

€ 18.50

6B

0944318020
ref: 6B

SPRING

€ 18.00

7

4233124B00
ref: 7

BRACKET,PROP STAND

€ 61.00

8

0910310087
ref: 8

BOLT(10X105)

€ 6.50

9

0151710208
ref: 9
01550-1020A

BOLT 10X25

€ 2.50

10-1

4311024B01
ref: 10-1
43110-24B10

PEDAL,BRAKE

€ 58.50

10-2

4311024B10
ref: 10-2

PEDAL,BRAKE

€ 58.50

11

0944832017
ref: 11

SPRING

€ 23.00

12

0411130308
ref: 12
04111-3030A

COTTER PIN

€ 1.50

13

0910006133
ref: 13
09100-06150

BOLT

€ 1.50

14

0831011067
ref: 14
08310-00067

NUT 6MM

€ 2.50

15

0916016015
ref: 15
09160-16043

WASHER (16.5X42X2.6)

€ 2.00

16-1

5851024B00
ref: 16-1
58510-24B10

CABLE COMP,REAR BRAKE

€ 73.00

16-2

5851024B10
ref: 16-2

CABLE,RR BRAKE

€ 73.00

17

0920913005
ref: 17
09209-13018

PIN

€ 3.50

18

0915006009
ref: 18
09150-06010

NUT (6MM)

€ 3.50

19

0920005001
ref: 19

PIN(L:17.5)

€ 1.50

20

0411120158
ref: 20
04111-2015A

PIN

€ 1.50

21

0110706165
ref: 21
01500-0616A

BOLT 6X16

€ 2.00

22

0832121064
ref: 22
08321-0106A

WASHER,LOCK

€ 2.00

PROP STAND - REAR BRAKE

all assemblies
