CAM SHAFT/VALVE
LS650P SAVAGE 1998 (W) USA (E03)

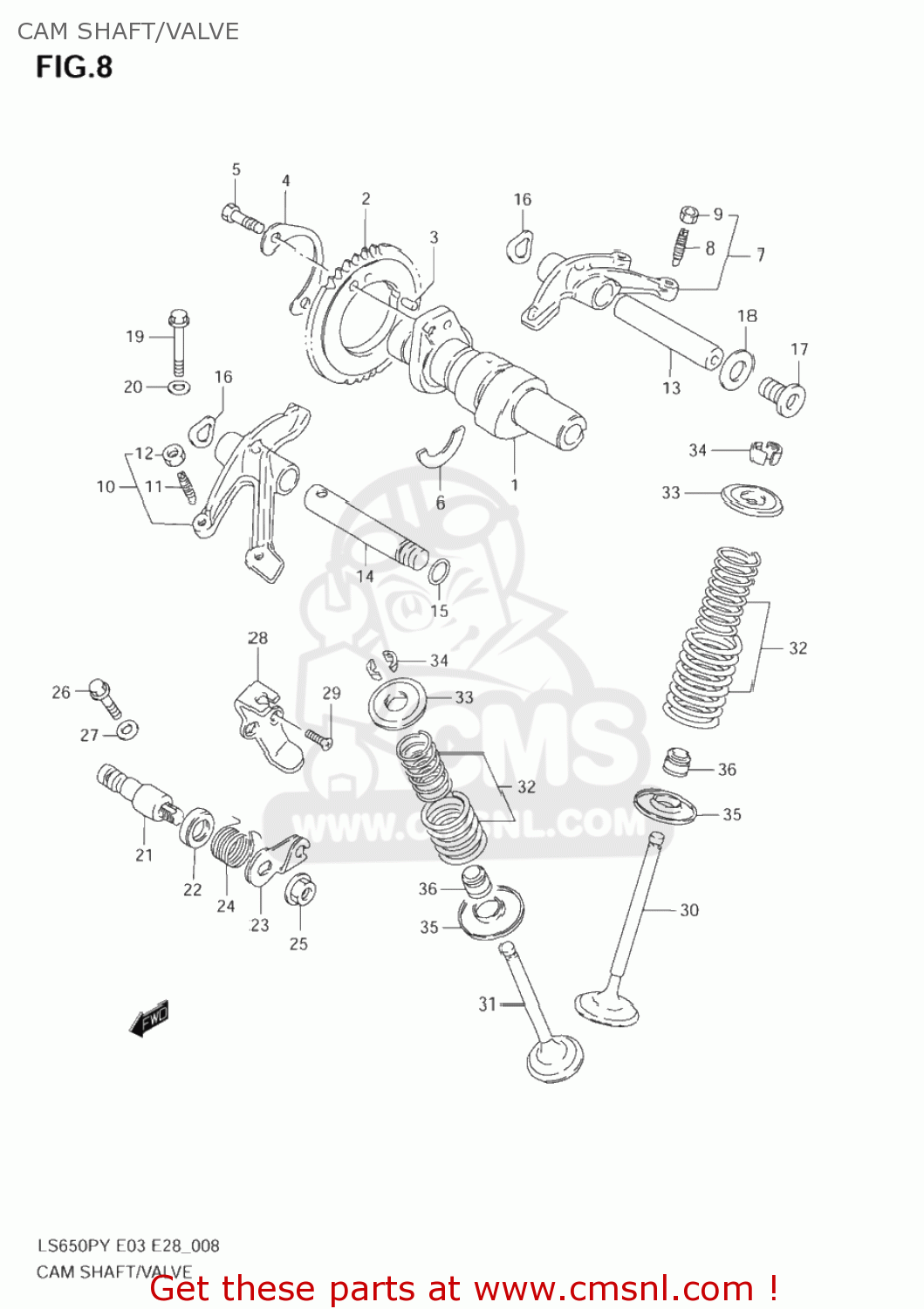

Cam shaft/valve diagram LS650P SAVAGE 1998 (W) USA (E03)
CAM SHAFT/VALVE LS650P SAVAGE 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1271124B10
ref: 1-1
12711-24B11
CAMSHAFT
€ 189.50
1-2
1271124B11
ref: 1-2
CAMSHAFT
€ 189.50
2
1274124B00
ref: 2
SPROCKET,CAMSHAFT
€ 35.50
3
0926105009
ref: 3
PIN(5X12.9)
€ 1.50
4
1274744000
ref: 4
12747-44001
WASHER,CAM CHAIN SPROCKET
€ 2.00
5
0911106053
ref: 5
BOLT(6X16)
€ 4.00
6
0939025003
ref: 6
C RING
€ 2.50
7-1
1284037401
ref: 7-1
12840-07F00
ARM,VALVE ROCKER,INTAKE
€ 80.50
7-2
1284007F00
ref: 7-2
ARM,INTAKE VALVE ROCKER
€ 80.50
7-3
1284024B10
ref: 7-3
ARM,INTAKE VALVE ROCKER
€ 66.00
8
1284232411
ref: 8
SCREW,TAPPET ADJUSTING
€ 5.00
9
1284332400
ref: 9
NUT,ADJUSTING SCREW
€ 2.50
10-1
1285024B01
ref: 10-1
12850-07F00
ARM,VALVE ROCKER,EXHAUST
€ 80.50
10-2
1285007F00
ref: 10-2
ARM,EXHAUST VALVE ROCKER
€ 80.50
10-3
1285024B10
ref: 10-3
ARM,EXHAUST VALVE ROCKER
€ 66.00
11
1284232411
ref: 11
SCREW,TAPPET ADJUSTING
€ 5.00
12
1284332400
ref: 12
NUT,ADJUSTING SCREW
€ 2.50
13
1286112D00
ref: 13
SHAFT,VALVE ROCKER ARM INTAKE
€ 19.50
14
1287114A00
ref: 14
SHAFT,EXHAUST VALVE ROCKER ARM
€ 20.00
15
0928009005
ref: 15
O RING(D:1.9,ID:8.6)
€ 4.00
16
0916412018
ref: 16
WASHER
€ 1.50
17
0924814005
ref: 17
PLUG,14X12
€ 5.00
18
0916814002
ref: 18
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
19
0216206303
ref: 19
02162-0630A
BOLT (GREEN)
€ 1.50
20
0916806023
ref: 20
GASKET(5.8X13X1.2) (NAS)
€ 2.00
21
1294124B01
ref: 21
SHAFT,DECOMP,L
€ 20.50
22
0928210012
ref: 22
SEAL,OIL(10X20X6)
€ 7.50
23
1294224B00
ref: 23
LEVER,DECOMP SHAFT,L
€ 3.50
24
0944817020
ref: 24
SPRING
€ 21.50
25-1
0831610087
ref: 25-1
NUT
€ 2.50
25-2
0831610083
ref: 25-2
08316-1008B
NUT
€ 3.00
26
0910306090
ref: 26
BOLT(6X16)
€ 2.00
27
0916806023
ref: 27
GASKET(5.8X13X1.2) (NAS)
€ 2.00
28
1294424B00
ref: 28
HOLDER,DECOMP CABLE,L
€ 8.50
29
0212205103
ref: 29
02122-0510A
SCREW
€ 1.00
30
1291124B01
ref: 30
VALVE,INTAKE
€ 28.50
31
1291224B01
ref: 31
VALVE,EXHAUST
€ 57.00
32
1292037402
ref: 32
SPRING SET,VALVE
€ 12.50
33
1293145000
ref: 33
12931-45001
RETAINER,VALVE SPRING
€ 6.00
34
1293282000
ref: 34
COTTER,VALVE
€ 2.00
35
1293337400
ref: 35
SEAT,VALVE SPRING
€ 3.50
36
0928907002
ref: 36
SEAL,OIL(7X14.4X9)
€ 3.00
