HANDLE SWITCH (MODEL T/V/W/X/Y/K1/K2/K3)

LS650P SAVAGE 1998 (W) USA (E03)

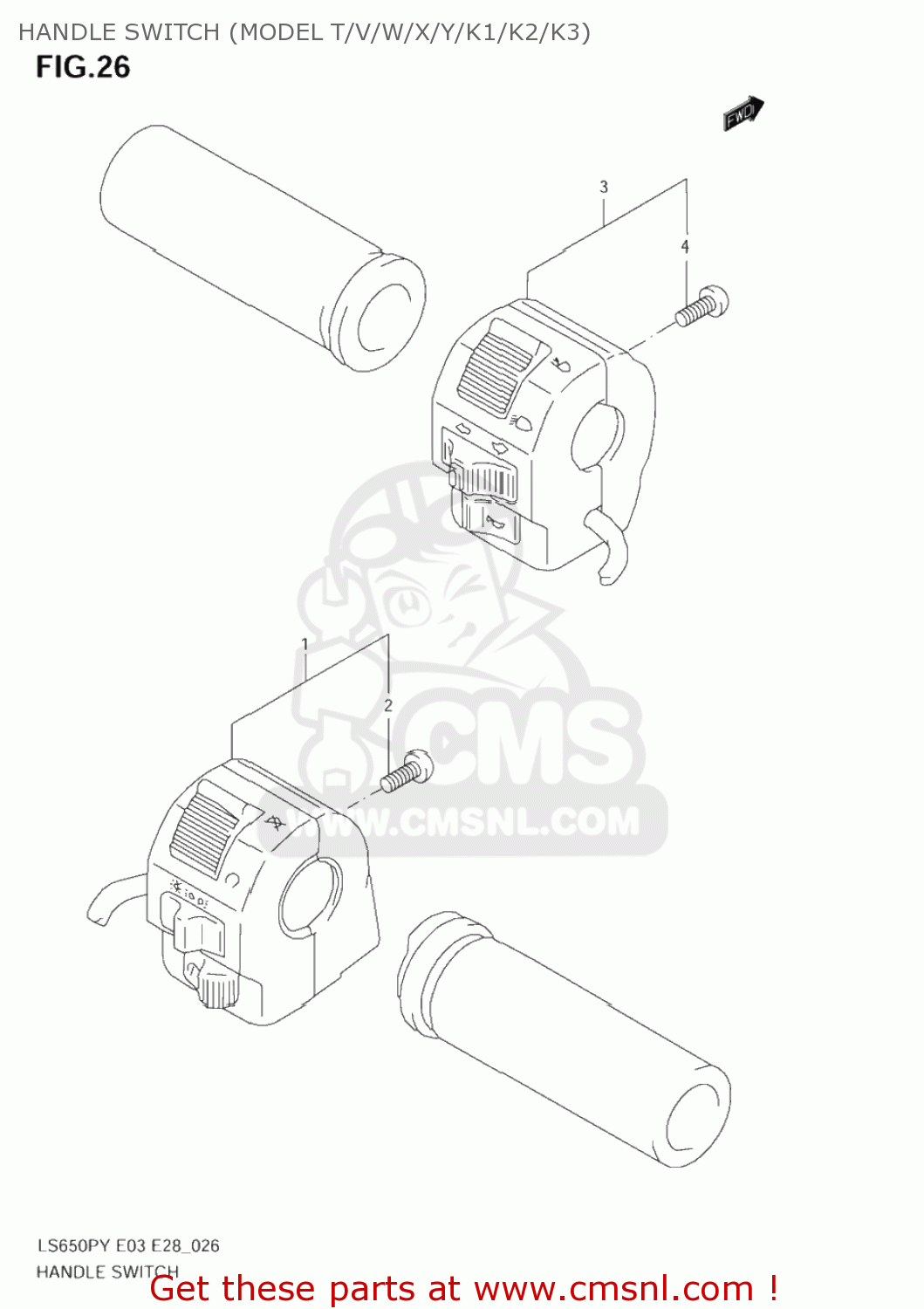

Handle switch (model t/v/w/x/y/k1/k2/k3) diagram LS650P SAVAGE 1998 (W) USA (E03)

HANDLE SWITCH (MODEL T/V/W/X/Y/K1/K2/K3) LS650P SAVAGE 1998 (W) USA (E03)

HANDLE SWITCH (MODEL T/V/W/X/Y/K1/K2/K3) LS650P SAVAGE 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3720024BC0
ref: 1

SWITCH ASSY,HANDLE,R

€ 0.00

2

0211205167
ref: 2

SCREW

€ 2.50

3

3740024BC0
ref: 3

SWITCH ASSY,HANDLE,L

€ 181.50

4

0211205167
ref: 4

SCREW

€ 2.50
