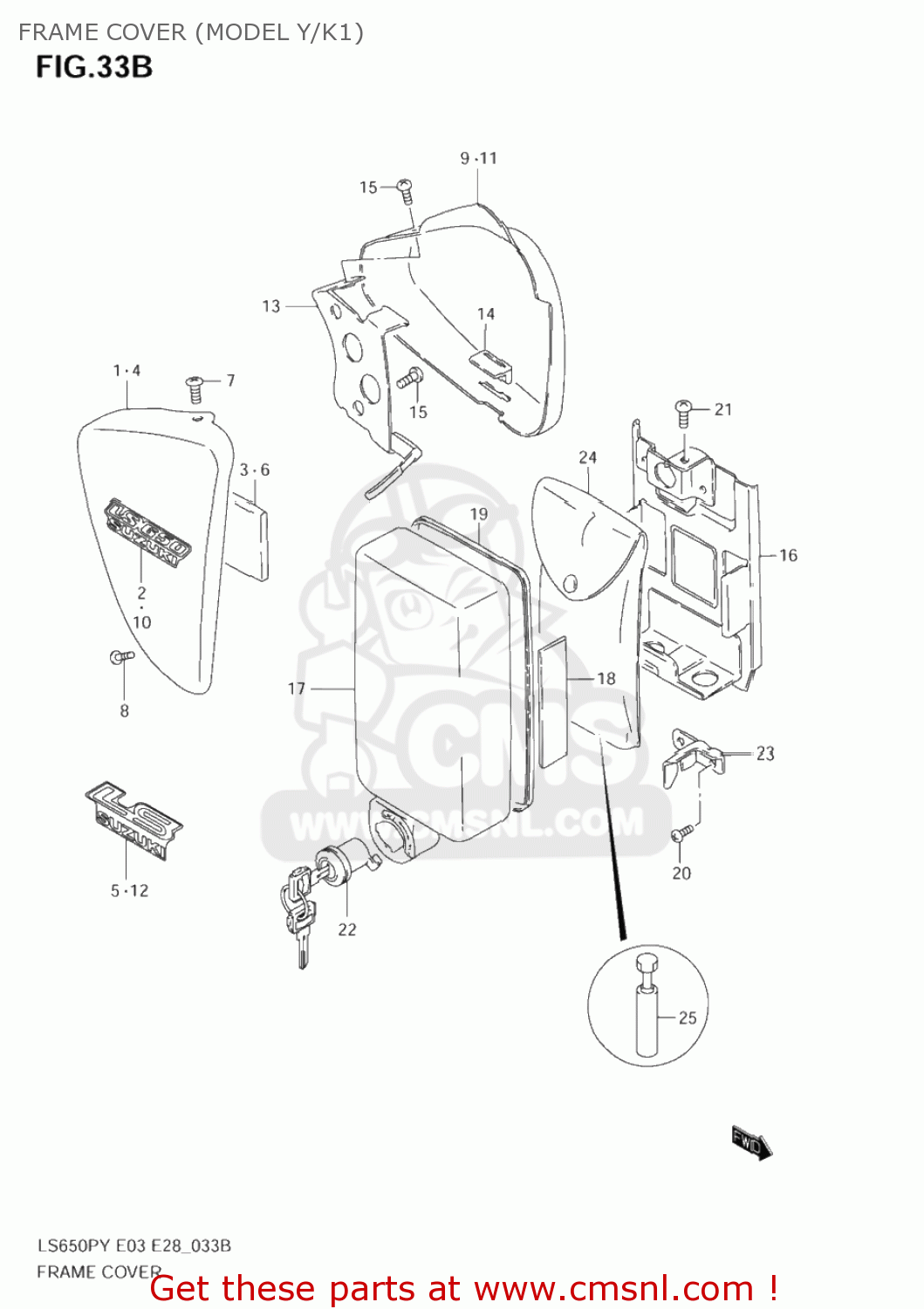

FRAME COVER (MODEL Y/K1)

ref

part #

description

quantity

1-1

4710024B30Y7G
ref: 1-1

COVER ASSY,FRAME,R(GREEN)

€ 84.00

1-2

4710024B30Y9F
ref: 1-2

COVER ASSEMBLY,FRAME,RIGHT

€ 79.00

2-1

6813124B30BM4
ref: 2-1

EMBLEM,FUEL TANK

€ 0.00

2-2

6813124B30BM5
ref: 2-2

EMBLEM,FRAME LEVER

€ 13.00

3

1371984150
ref: 3

PAD

€ 2.50

4-1

4710024B4033J
ref: 4-1

COVER, FRAME RH (BLACK)

€ 88.50

4-2

4710024B40YD7
ref: 4-2

COVER, FRAME RH (SILVER)

€ 0.00

5-1

6813124B40FC4
ref: 5-1

EMBLEM

€ 0.00

5-2

6813124B40FC5
ref: 5-2

EMBLEM,FRAME COVER

€ 0.00

6

1371984150
ref: 6

PAD

€ 2.50

7

0214205103
ref: 7
02142-0510B

SCREW

€ 2.50

8

0211275163
ref: 8
02112-7516A

SCREW

€ 2.50

9-1

4720024B30Y7G
ref: 9-1

COVER ASSY,FRAME,L(GREEN)

€ 90.50

9-2

4720024B30Y9F
ref: 9-2

COVER ASSY,FRAME,L(YELLOW)

€ 84.00

10-1

6813124B30BM4
ref: 10-1

EMBLEM,FUEL TANK

€ 0.00

10-2

6813124B30BM5
ref: 10-2

EMBLEM,FRAME LEVER

€ 13.00

11-1

4720024B4033J
ref: 11-1

COVER ASSY,FRAME,L(BLACK)

€ 101.00

11-2

4720024B40YD7
ref: 11-2

COVER ASSY,FRAME,L(SILVER)

€ 0.00

12-1

6813124B40FC4
ref: 12-1

EMBLEM

€ 0.00

12-2

6813124B40FC5
ref: 12-2

EMBLEM,FRAME COVER

€ 0.00

13

4718024B03
ref: 13

BRACKET,FRAME COVER,L

€ 13.00

14

4711745000
ref: 14

CUSHION,FRAME COVER

€ 1.50

15

0212206123
ref: 15
02122-0612A

SCREW

€ 3.00

16

4743024B01
ref: 16

HOLDER,TOOL

€ 11.00

17

4744024B10
ref: 17
47440-24B20

COVER COMP,TOOL HOLDER

€ 36.00

18

3365207D00
ref: 18

PROTECTOR(80X80X2)

€ 4.50

19

4744524B00
ref: 19

MOLDING

€ 2.50

20

0214205103
ref: 20
02142-0510B

SCREW

€ 2.50

21

0211206103
ref: 21
02112-0610B

SCREW

€ 1.50

22

9570024870
ref: 22
95700-24871

LOCK SET,TOOL HOLDER

€ 45.00

23

4743424B00
ref: 23

PLATE,TOOL HOLDER LOCK

€ 2.50

24

0980021012
ref: 24

TOOL ASSY

€ 40.00

25

9622024B00
ref: 25

GAUGE ASSY,TENSION

€ 21.50
