FRONT CALIPER

LS650P SAVAGE 2003 (L3) USA (E03)

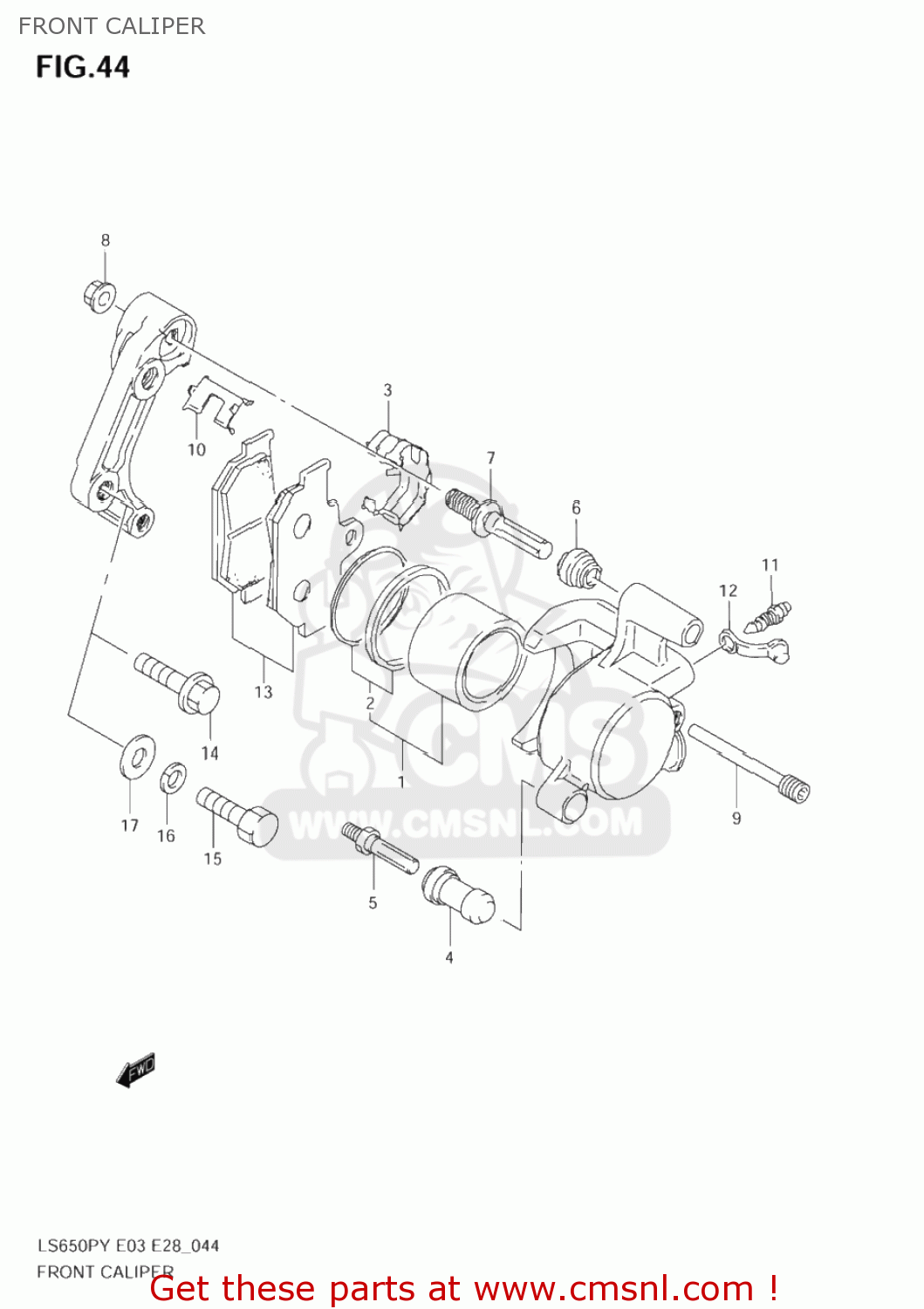

Front caliper diagram LS650P SAVAGE 2003 (L3) USA (E03)

FRONT CALIPER LS650P SAVAGE 2003 (L3) USA (E03)

FRONT CALIPER LS650P SAVAGE 2003 (L3) USA (E03)

prices are in EUR

ref

part #

description

quantity



5930024B30999
ref:

CALIPER ASSY,FR

€ 500.50

1

5930024820
ref: 1

PISTON SET

€ 58.00

2

5930024810
ref: 2

SEAL SET,PISTON

€ 14.00

3

5931514600
ref: 3

SPRING

€ 6.50

4

5938613A00
ref: 4

BOOT

€ 6.50

5

5938227C30
ref: 5

BOLT

€ 7.50

6

5930314500
ref: 6

BOOT

€ 5.50

7

5930514500
ref: 7

PIN,SLIDE

€ 12.50

8

5930614500
ref: 8

NUT,SLIDE PIN

€ 2.50

9

5934514600
ref: 9

PIN,HANGER

€ 10.50

10

5931624B10
ref: 10

RETAINER

€ 6.00

11

5912101A00
ref: 11

BLEEDER

€ 8.50

12

5912201A00
ref: 12

CAP,BLEEDER

€ 4.50

13

5930024830
ref: 13

PAD SET (NAS)

€ 41.50

14

0911810049
ref: 14
09104-10029

BOLT 10X38

€ 3.50

15

0910410029
ref: 15

BOLT(10X38)

€ 3.50

16

0916210008
ref: 16

WASHER,LOCK

€ 3.00

17

0832201107
ref: 17

WASHER

€ 2.50
