REAR COMBINATION LAMP
LS650P SAVAGE 2003 (L3) USA (E03)

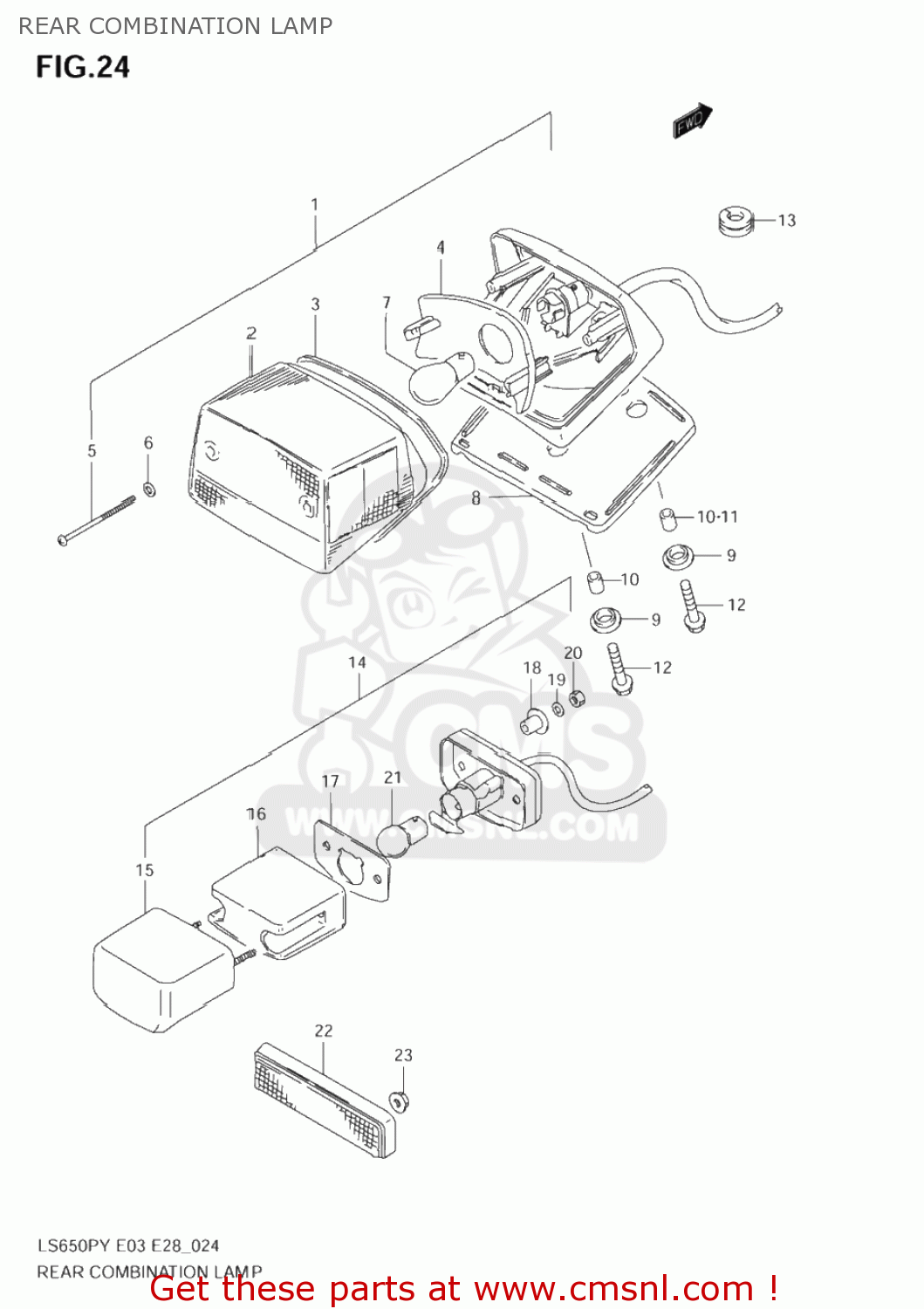

Rear combination lamp diagram LS650P SAVAGE 2003 (L3) USA (E03)
REAR COMBINATION LAMP LS650P SAVAGE 2003 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571024B10
ref: 1
LAMP ASSY,RR COMBINATION
€ 0.00
2
3571224B30
ref: 2
LENS
€ 28.50
3
3571338A00
ref: 3
35713-31D00
GASKET (NAS)
€ 9.50
4
3571438A00
ref: 4
REFLECTOR
€ 16.50
5
3572344130
ref: 5
SCREW
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
0947112128
ref: 7
BULB(12V21/5W,BF141-49642A)
€ 6.00
8
3576524B00
ref: 8
CUSHION
€ 12.00
9
3576426470
ref: 9
CUSHION
€ 2.50
10
3576637190
ref: 10
SPACER
€ 2.00
11
3576640640
ref: 11
SPACER
€ 0.00
12
0911606093
ref: 12
BOLT(6X25)
€ 2.00
13-1
0930809013
ref: 13-1
GROMMET
€ 2.00
13-2
0930809004
ref: 13-2
GROMMET
€ 0.00
14
3591024B30999
ref: 14
LAMP ASSY,LICENSE
€ 142.50
15
3591738A20
ref: 15
COVER,LICENSE LAMP
€ 121.50
16
3591238A30
ref: 16
LENS
€ 11.50
17
3591338A30
ref: 17
GASKET,LICENSE LAMP (NAS)
€ 2.00
18
3576624B30
ref: 18
SPACER
€ 2.00
19
0832101043
ref: 19
08321-0104A
WASHER,LOCK
€ 2.00
20
0831000047
ref: 20
NUT
€ 2.00
21
0947112141
ref: 21
BULB(12V8W)
€ 7.00
22
3597038A00
ref: 22
REFLEX REFLECTOR ASSY,RR
€ 25.50
23
0831000053
ref: 23
08310-0005A
NUT
€ 2.50
