Buy Suzuki LS Parts Online


TURN SIGNAL LAMP (MODEL K4)

LS650P SAVAGE 2003 (L3) USA (E03)

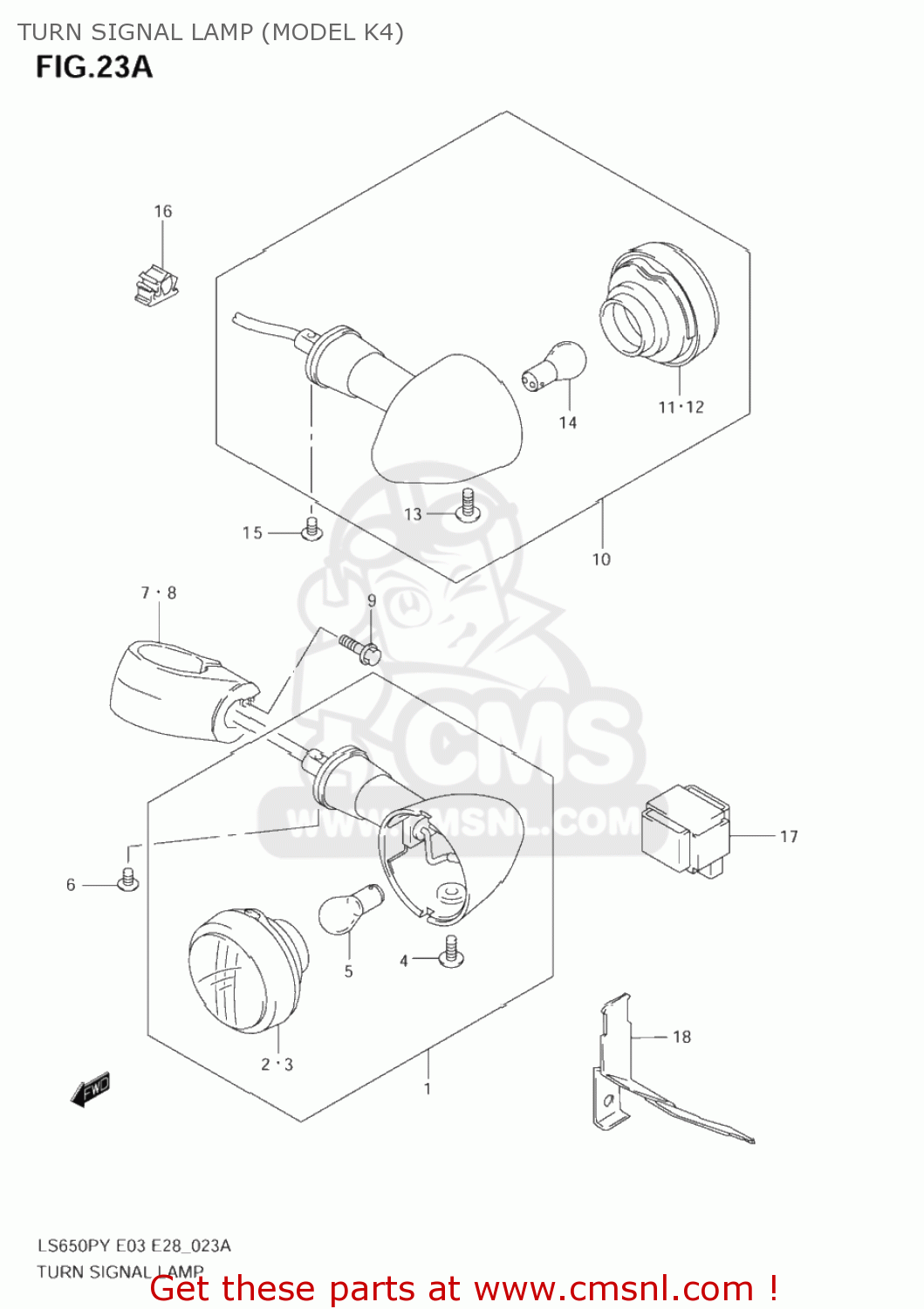

Turn signal lamp (model k4) diagram LS650P SAVAGE 2003 (L3) USA (E03)

TURN SIGNAL LAMP (MODEL K4) LS650P SAVAGE 2003 (L3) USA (E03)
TURN SIGNAL LAMP (MODEL K4) LS650P SAVAGE 2003 (L3) USA (E03)
TURN SIGNAL LAMP (MODEL K4) LS650P SAVAGE 2003 (L3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
3560138AB0
ref: 1-1
LAMP ASSY,FR TURN SIGNAL,R
3560138AB0
€ 99.50
1-2
3560238AB0
ref: 1-2
LAMP ASSY,FR TURN SIGNAL,L
3560238AB0
€ 99.50
2
3561038AA0
ref: 2
LENS
3561038AA0
€ 19.50
3
3563038AA0
ref: 3
LENS
3563038AA0
€ 19.50
4
3562338AA0
ref: 4
SCREW(4X10)
3562338AA0
€ 4.00
5
0947112083
ref: 5
09471-12128
BULB(12V21/5W)
0947112083
€ 6.00
6
0214206107
ref: 6
SCREW
0214206107
€ 2.00
7
3567124B00
ref: 7
BRACKET,FR TURNSIGNAL LAMP,R
€ 45.50
8
3568124B00
ref: 8
BRACKET,FR TURNSIGNAL LAMP,L
3568124B00
€ 45.50
9
0154705257
ref: 9
BOLT
0154705257
€ 2.00
10-1
3560338AA0
ref: 10-1
LAMP ASSY,RR TURNSIGNAL,R
3560338AA0
€ 83.50
10-2
3560438AA0
ref: 10-2
LAMP ASSY,RR TURNSIGNAL,L
3560438AA0
€ 75.50
11
3563038AA0
ref: 11
LENS
3563038AA0
€ 19.50
12
3561038AA0
ref: 12
LENS
3561038AA0
€ 19.50
13
3562338AA0
ref: 13
SCREW(4X10)
3562338AA0
€ 4.00
14
0947112045
ref: 14
BULB(12V21W)
0947112045
€ 5.00
15
0214206167
ref: 15
SCREW
0214206167
€ 2.00
16
0940307315
ref: 16
CLAMP
€ 3.50
17
3861026E00
ref: 17
RELAY ASSY
3861026E00
€ 47.00
18
3862124B10
ref: 18
BRACKET,TURNSIGNAL RELAY
€ 0.00
