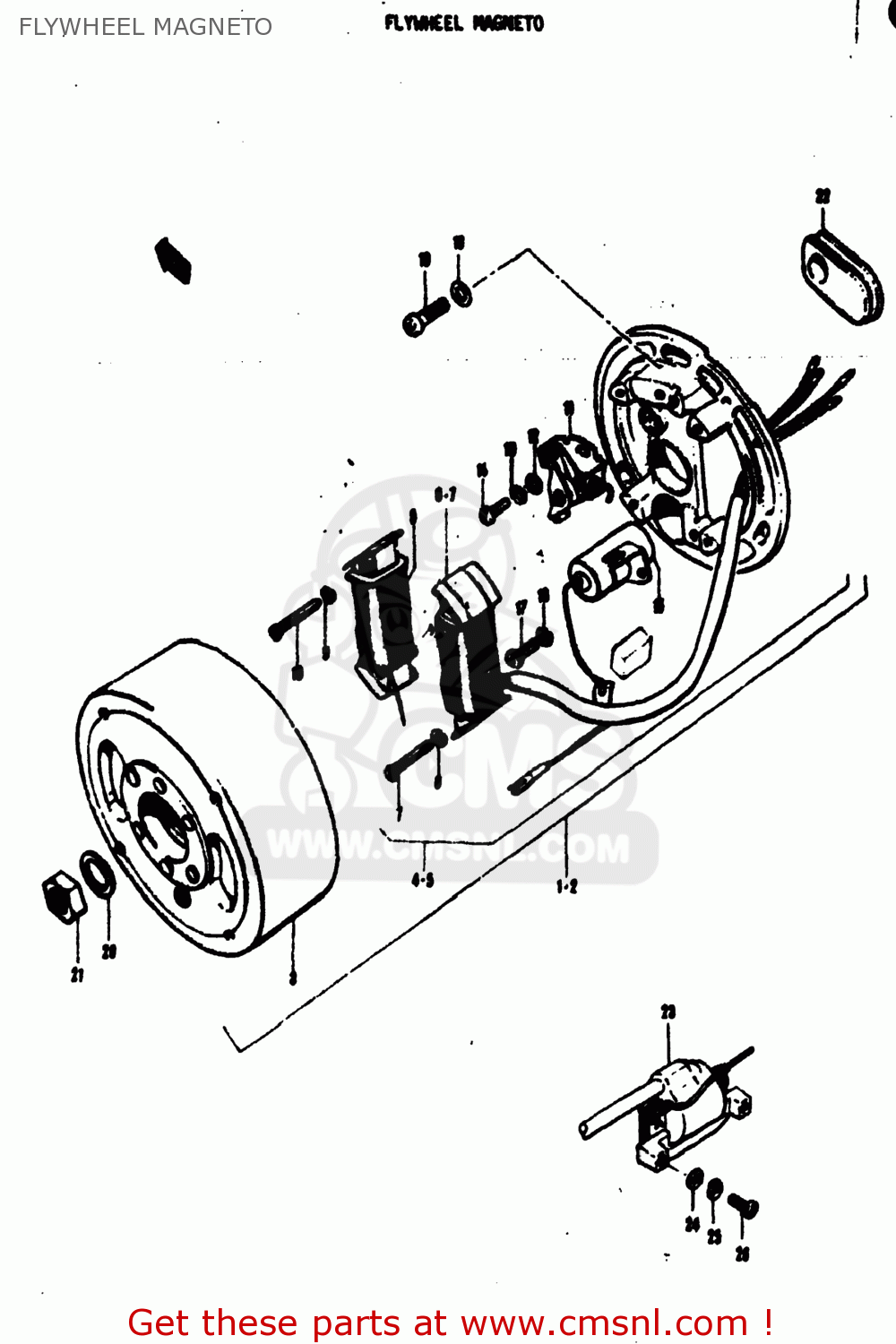

FLYWHEEL MAGNETO

ref

part #

description

quantity

1

3210026610
ref: 1

MAGNETO ASSEMBLY

€ 0.00

2

3210022010
ref: 2
32100-43010

MAGNETO ASSEMBLY

€ 164.50

3

3210222010
ref: 3

ROTOR ASSEMBLY

€ 45.50

4

3210126610
ref: 4

STATOR ASSEMBLY

€ 0.00

5

3210122010
ref: 5
32101-22011

STATOR ASSEMBLY

€ 50.50

6

3212026610
ref: 6

COIL,LIGHTING

€ 13.00

7

3212003110
ref: 7

COIL,LIGHTING

€ 43.00

8

3214003110
ref: 8
32140-26612

COIL

€ 45.50

9

0832121048
ref: 9
08321-0104A

LOCK WASHER

€ 2.00

10

0211104258
ref: 10

SCREW

€ 2.00

11

3224028010
ref: 11
32240-43012

POINT ASSEMBLY,CONTACT

€ 18.50

12

0832221048
ref: 12
08322-01047

WASHER

€ 2.00

13

0832121048
ref: 13
08321-0104A

LOCK WASHER

€ 2.00

14

0231104108
ref: 14
02112-0410A

.SCREW

€ 1.00

15

3234103110
ref: 15

CONDENSER

€ 21.50

16

0832121048
ref: 16
08321-0104A

LOCK WASHER

€ 2.00

17

0231104108
ref: 17
02112-0410A

.SCREW

€ 1.00

18

0832221058
ref: 18
08322-01057

WASHER

€ 2.50

19

0211205168
ref: 19
02112-05167

SCREW

€ 2.50

20

0832121108
ref: 20
08321-01107

LOCK WASHER

€ 2.00

21

0831111108
ref: 21
08310-00107

NUT

€ 2.50

22

0930909006
ref: 22
09309-09007

GROMMET

€ 2.50

23

3341022220
ref: 23
33410-22221

COIL ASSEMBLY,IGNITION

€ 184.50

24

0832221058
ref: 24
08322-01057

WASHER

€ 2.50

25

0832121058
ref: 25
08321-0105A

LOCK WASHER

€ 2.00

26

0211105127
ref: 26
02112-05127

Screw

€ 2.50

all assemblies
