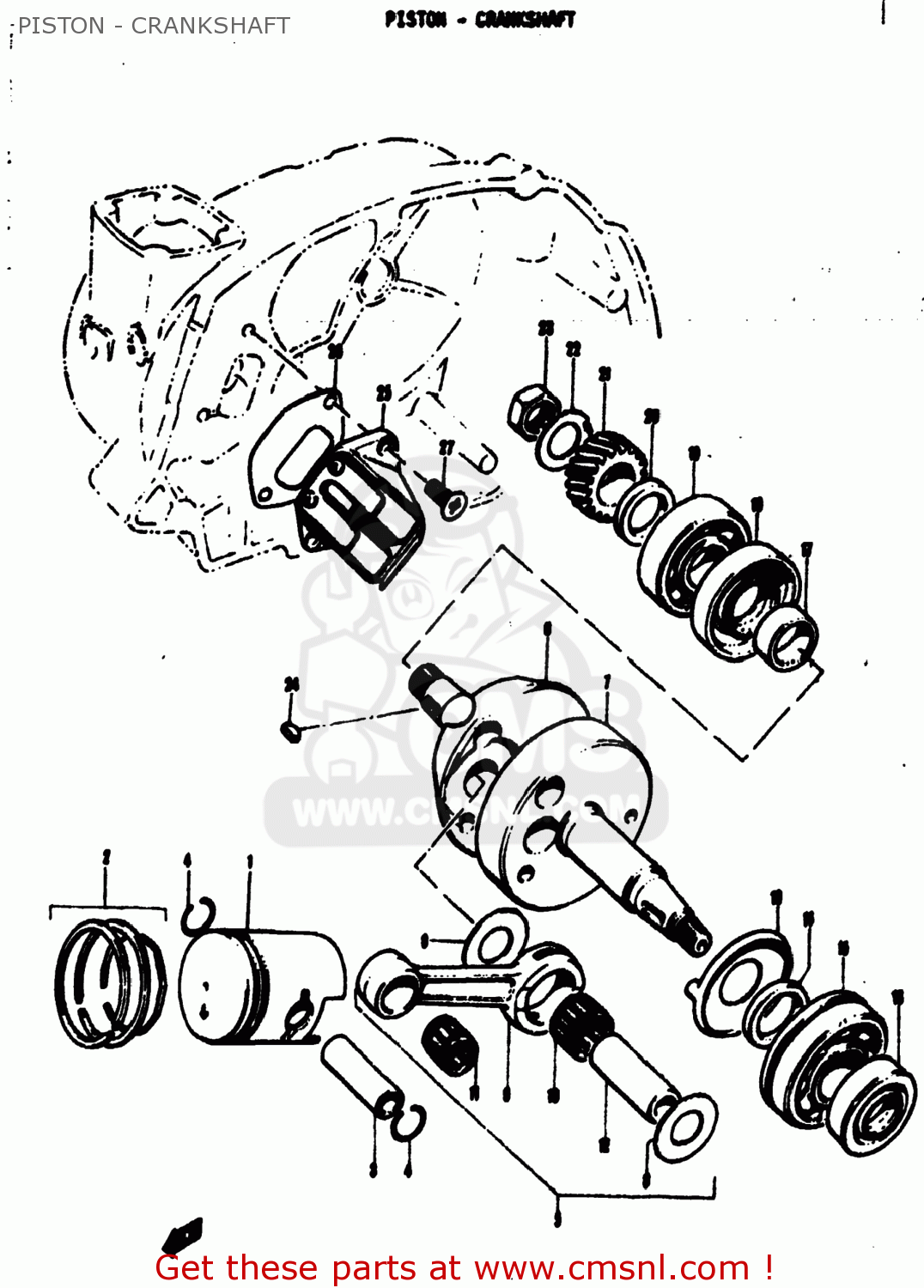

PISTON - CRANKSHAFT - MT50 TRAILHOPPER 1973 (K) USA (E03)

ref

part #

description

quantity

1-1

1211019600
ref: 1-1
12100-92820

PISTON (41.00MM)

€ 70.50

1-2

1211019720
ref: 1-2
12103-35810-050

PISTON SET(OS:0.5)

€ 83.50

1-3

1211019730
ref: 1-3
12103-35810-100

PISTON SET(OS:1.0)

€ 93.00

2-1

1214005823
ref: 2-1

RING SET, PISTON

€ 0.00

2-2

1214005829
ref: 2-2
12140-05100-050

RING SET, PISTON

€ 26.00

2-3

1214005830
ref: 2-3
12140-05100-100

RING SET,PISTON

€ 21.00

3

1215102000
ref: 3
12151-04700

PIN,PISTON

€ 9.00

4

0938112001
ref: 4

RING,SNAP

€ 1.50

5

1200019803
ref: 5

CRANKSHAFT ASSY

€ 267.00

6

1222119001
ref: 6

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

7

1226119000
ref: 7

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8

0916016011
ref: 8

WASHER(16X32X1)

€ 5.00

9

1216113100
ref: 9
12161-04710

CONNECTING ROD

€ 52.50

10

0926316002
ref: 10
09263-16034

BEARING

€ 19.00

11

0926312003
ref: 11
09263-12023

BEARING

€ 9.00

12

1221119000
ref: 12

PIN,CRANK

€ 15.00

13

1251106100
ref: 13

PLATE,CSHAFT OIL GUIDE

€ 8.00

14

0918020017
ref: 14

SPACER(20X28X4.5)

€ 3.50

15

0926920006
ref: 15

BEARING(20X47X14)

€ 21.50

16

0928320011
ref: 16
09283-20034

OIL SEAL

€ 6.00

17

0918017026
ref: 17

SPACER(17X23X9)

€ 6.00

18

0928323001
ref: 18

SEAL,OIL(22.2X47X8)

€ 6.50

19

0811363030
ref: 19

BEARING

€ 15.50

20

0918017027
ref: 20

SPACER(17.2X27X4.5)

€ 4.00

21-1

2111119501
ref: 21-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

21-2

2111119002
ref: 21-2

GEAR,PRIMARY DRIVE NO.21

€ 29.00

22

0916614008
ref: 22

WASHER

€ 2.50

23

0914014002
ref: 23

NUT

€ 4.00

24

0834131039
ref: 24

KEY

€ 2.00

25

1315019013
ref: 25

REED VALVE ASSY

€ 46.00

26

1315619001
ref: 26

GASKET,REED VALVE

€ 3.50

27

0212105167
ref: 27
02122-05167

SCREW

€ 2.00

PISTON - CRANKSHAFT

all assemblies
