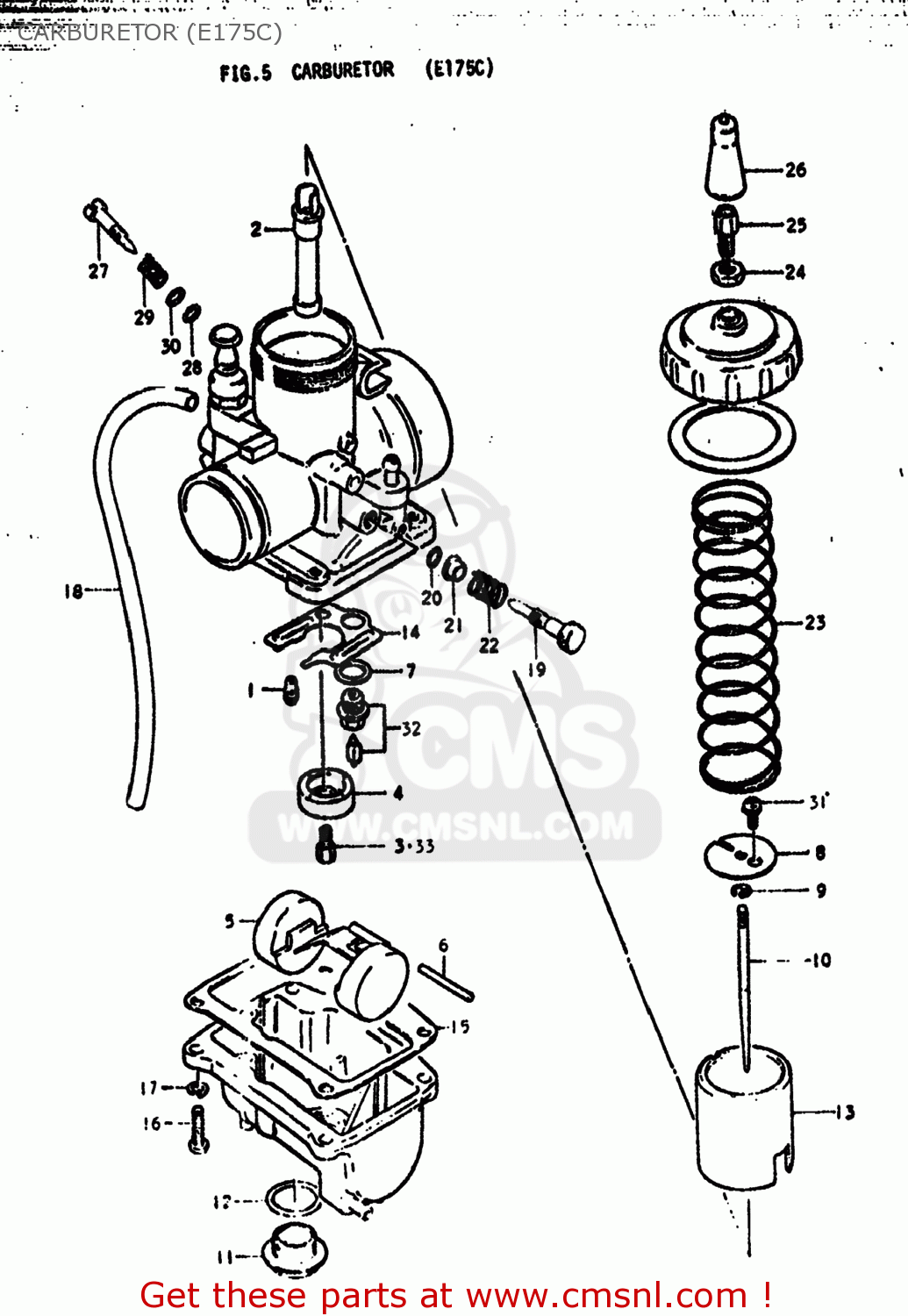

CARBURETOR (E175C)

ref

part #

description

quantity

0

1320041500
ref: 0
13200-41501

CARBURETOR ASSEMBLY

€ 110.00

1

0949225003
ref: 1
09492-25005

JET

€ 6.50

2

0949400176
ref: 2

JET,NEEDLE

€ 6.00

3

0949138003
ref: 3
09491-38009

JET

€ 10.00

4

1333116510
ref: 4

RING

€ 1.50

5

1325232010
ref: 5

FLOAT

€ 25.50

6

1325401010
ref: 6

PIN,FLOAT

€ 3.00

7

1339216600
ref: 7

GASKET,MAIN JET HOLDER (NAS)

€ 3.00

8

1358116600
ref: 8

PLATE,THROTTLE VALVE

€ 4.00

9

1339410010
ref: 9

CLIP

€ 4.50

10

1338341500
ref: 10
13383-41510

NEEDLE JET

€ 17.00

11

1324732210
ref: 11

SCREW,GUIDE

€ 13.00

12

1324941310
ref: 12

O RING,DRAIN PLUG

€ 5.00

13

1355116611
ref: 13

VALVE,THROTTLE

€ 26.50

14

1325941310
ref: 14

PLATE

€ 2.50

15

1325130110
ref: 15

GASKET,FLOAT CAHMBER (NAS)

€ 8.50

16

0211205168
ref: 16
02112-05167

SCREW

€ 2.50

17

0832121058
ref: 17
08321-0105A

LOCK WASHER

€ 2.00

18

1368341740
ref: 18
13683-45070

HOSE

€ 10.00

19

1326741500
ref: 19

ADJUSTER

€ 7.00

20

1329430010
ref: 20
13278-02340

O-RING

€ 1.50

21

1329134010
ref: 21

COVER

€ 5.50

22

1326831011
ref: 22

SPRING,THROTTLE STOP

€ 7.50

23

1357316600
ref: 23
13573-16601

SPRING

€ 1.50

24

1366116600
ref: 24

NUT

€ 5.00

25

1357703010
ref: 25
13577-48110

ADJUSTER,CABLE

€ 8.00

26

1368116601
ref: 26

CAP

€ 7.00

27

1326941640
ref: 27

SCREW,PILOT AIR

€ 11.50

28

1327845010
ref: 28

O RING

€ 5.00

29

1327196110
ref: 29

SPRING

€ 3.50

30

1329141640
ref: 30
13606-18E00

WASHER,PILOT AIR SCREW

€ 3.50

31

0211104067
ref: 31
02112-0406B

SCREW

€ 2.00

32

1337041500
ref: 32

VALVE ASSY,NEEDLE

€ 61.50

33-1

0949132002
ref: 33-1

JET,MAIN(160)

€ 6.50

33-2

0949134002
ref: 33-2

JET,MAIN(170)

€ 7.00

33-3

0949136003
ref: 33-3
09491-36006

JET

€ 15.00

33-4

0949140004
ref: 33-4
09491-40006

JET

€ 11.50

33-5

0949142001
ref: 33-5
09491-42005

JET,MAIN (210)

€ 11.00

all assemblies
