REAR SWINGING ARM (PE175N)
PE175 1979 (N) USA (E03)

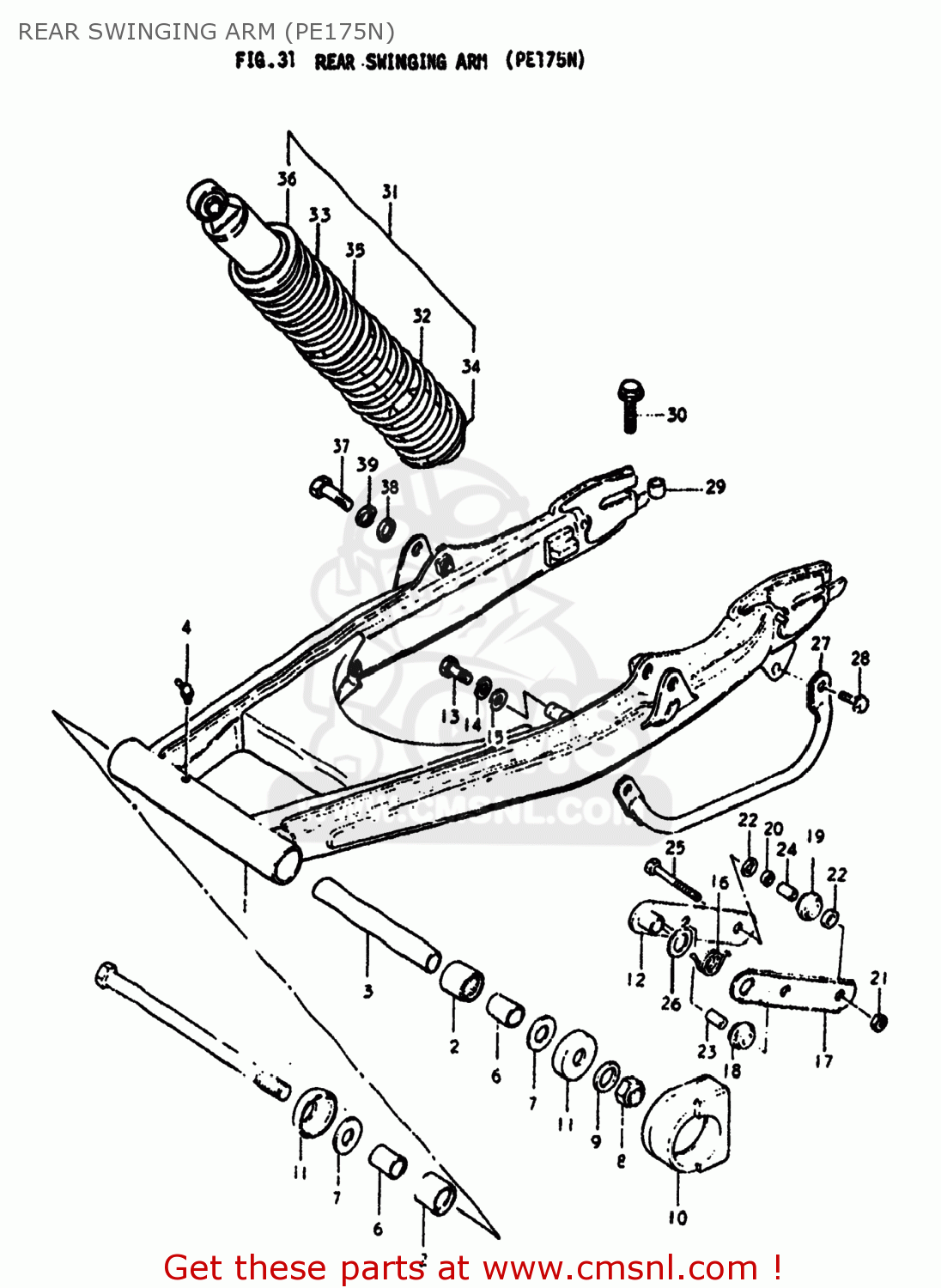

Rear swinging arm (pe175n) diagram PE175 1979 (N) USA (E03)
REAR SWINGING ARM (PE175N) PE175 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6110141850019
ref: 1
SWING ARM ASSEMBLY,REAR
€ 112.00
2
0926317011
ref: 2
09263-17027
ROLLER BEARING (17X24X2
€ 13.50
3
6128241300
ref: 3
SPACER,REAR SWING ARM PIVOT
€ 8.50
4
0835131008
ref: 4
08351-3100A
NIPPLE,GREASE
€ 10.50
5
6121141510
ref: 5
SHAFT,REAR SWING ARM
€ 9.50
6
6125141300
ref: 6
SPACER,RR SWGARM PIVOT
€ 12.50
7
0821112281
ref: 7
WASHER
€ 2.00
8
0831921128
ref: 8
08319-2112A
NUT 12MM
€ 4.00
9
0832211128
ref: 9
08322-01127
WASHER
€ 2.00
10
6127341310
ref: 10
BUFFER,CHAIN TOUCH DEFENSE
€ 12.00
11
6126241500
ref: 11
COVER,RR SWGARM DUST SEAL
€ 7.50
12
6135041301
ref: 12
TENSIONER,CHAIN
€ 25.00
13
0110706128
ref: 13
01500-06127
BOLT
€ 2.00
14
0832121068
ref: 14
08321-01067
LOCK WASHER
€ 2.50
15
0916006007
ref: 15
09160-06084
WASHER
€ 2.00
16
0944825003
ref: 16
SPRING
€ 3.00
17
6135241301
ref: 17
PLATE,CHAIN TENSIONER OUTER
€ 8.00
18
6134541100
ref: 18
RUBBER,CHAIN GUARD
€ 4.50
19
6134541501
ref: 19
ROLLER,CHAIN TENSIONER LWR
€ 6.00
20
0926310007
ref: 20
BEARING(10X14X15)
€ 21.00
21
0831921068
ref: 21
08319-2106A
NUT 6MM
€ 2.00
22
0928410004
ref: 22
SEAL,OIL(10X14.4X3.5)
€ 2.50
23
0918006067
ref: 23
SPACER(6.5X10.5X22.5)
€ 2.50
24
0918006075
ref: 24
SPACER(6.2X10X22.5)
€ 4.00
25
0110706358
ref: 25
09100-06033
BOLT
€ 2.50
26
0832211168
ref: 26
08322-01167
WASHER
€ 2.00
27
6139041510
ref: 27
GUARD
€ 8.50
28
0151708168
ref: 28
01550-08167
BOLT
€ 3.00
29
0918008085
ref: 29
09180-08203
SPACER (8.2X14X16.5)
€ 4.00
30
0151708508
ref: 30
01550-08507
BOLT
€ 3.50
31
6210041500
ref: 31
ABSORBER ASSEMBLY,REAR SHOCK
€ 101.00
32
6221141500
ref: 32
SPRING
€ 16.50
33
6221241500
ref: 33
SPRING
€ 17.50
34
6222540600
ref: 34
NO PRODUCT DESCRIPTION AVAILABLE
€ 9.50
35
6222141650
ref: 35
SPRING
€ 4.50
36
6219141650
ref: 36
GUIDE,SPRING
€ 4.00
37
0910010096
ref: 37
09100-10184
BOLT 10X40
€ 2.50
38
0832211108
ref: 38
08322-01107
WASHER
€ 2.50
39
0832121108
ref: 39
08321-01107
LOCK WASHER
€ 2.00
