PE175 1979 (N) USA (E03)

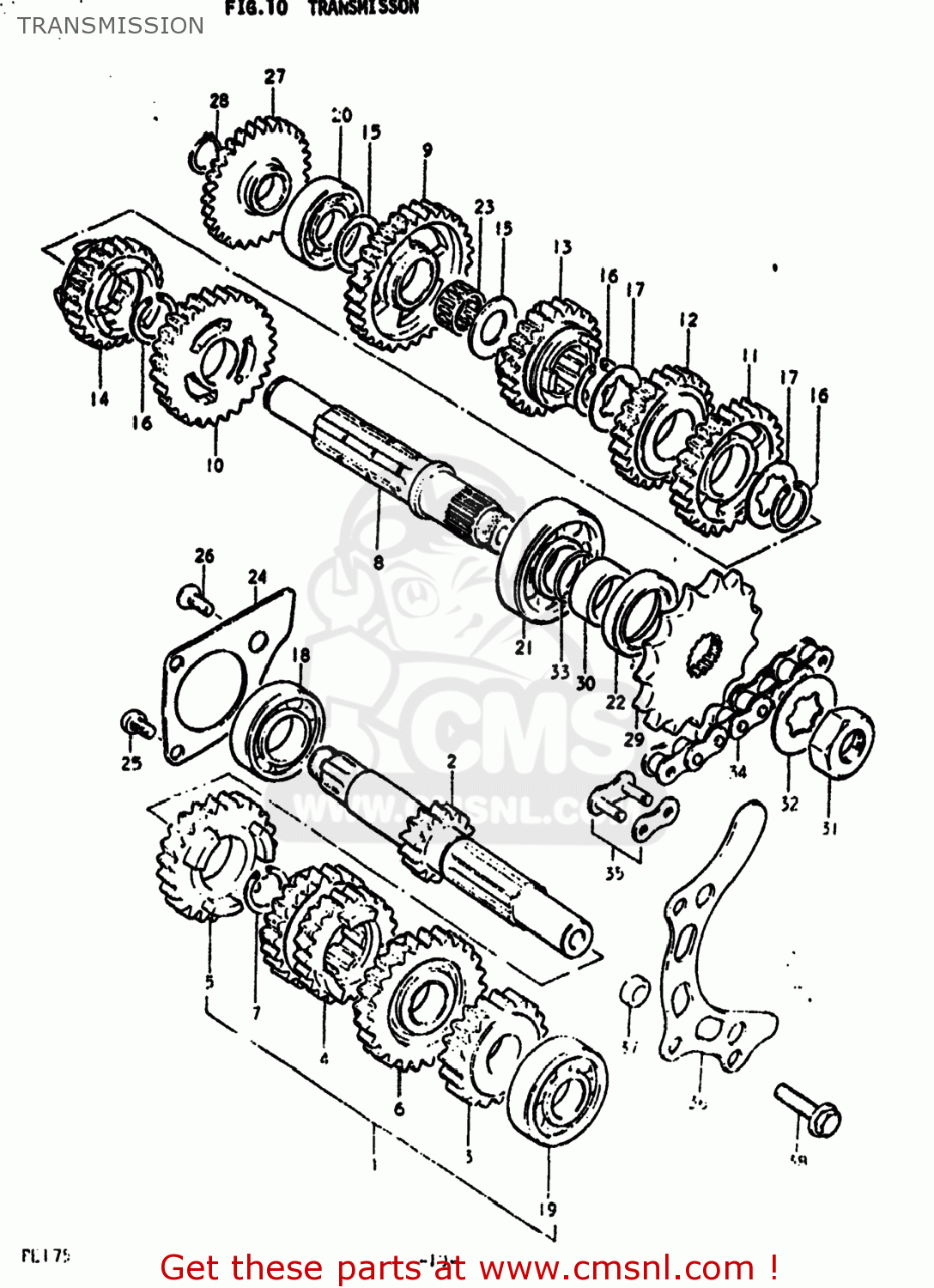

Transmission diagram PE175 1979 (N) USA (E03)
TRANSMISSION PE175 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412041502
ref: 1
24120-41503
SHAFT,COUNTER
€ 146.50
2
2412141500
ref: 2
SHAFT,COUNTER
€ 39.00
3
2422141500
ref: 3
24221-41501
GEAR,SECOND DRIVE
€ 72.50
4
2423141500
ref: 4
GEAR,THIRD DRIVE
€ 25.50
5
2425141300
ref: 5
24251-14101
GEAR,FIFTH DRIVE
€ 103.50
6
2426041502
ref: 6
GEAR,SIXTH DRIVE
€ 49.50
7
0938020007
ref: 7
CIRCLIP
€ 3.00
8-1
2413141300
ref: 8-1
24131-41303
SHAFT,DRIVE
€ 112.00
8-2
2413141301
ref: 8-2
24131-41303
SHAFT,DRIVE
€ 112.00
9
2431141500
ref: 9
GEAR,FIRST DRIVEN
€ 45.00
10
2432141500
ref: 10
GEAR,SECOND DRIVEN
€ 19.00
11
2433141500
ref: 11
GEAR,THIRD DRIVEN
€ 43.00
12
2434141303
ref: 12
GEAR,FOURTH DRIVEN
€ 66.00
13
2435141301
ref: 13
GEAR,FIFTH DRIVEN
€ 68.50
14
2436141501
ref: 14
GEAR,SIXTH DRIVEN
€ 56.50
15
0821115241
ref: 15
09181-15166
WASHER,THRUST
€ 4.00
16
0938020007
ref: 16
CIRCLIP
€ 3.00
17
0916720011
ref: 17
WASHER,LOCK
€ 2.50
18
0811362040
ref: 18
09262-20069
Bearing
€ 28.00
19
0811360020
ref: 19
BEARING
€ 14.00
20
0811362020
ref: 20
08113-62027
BEARING, RH
€ 14.50
21
0926220043
ref: 21
BEARING(20X47X14)
€ 27.00
22
0928325035
ref: 22
SEAL,OIL(25X40X7)
€ 6.50
23
0926315013
ref: 23
ROLLER BEARING (15X19X9
€ 16.00
24
2474141300
ref: 24
PLATE,COUNTERSHAFT BEARING
€ 3.00
25
0211206128
ref: 25
02112-06127
SCREW 6X12
€ 2.00
26
0212206128
ref: 26
02122-06127
SCREW
€ 3.00
27
2626041500
ref: 27
26260-41502
GEAR,KICK STARTER IDLE
€ 51.00
28
0833131159
ref: 28
08331-3115A
CIRCLIP,15MM
€ 2.00
29-1
2751141500
ref: 29-1
27511-14111
SPROCKET,ENGINE
€ 19.00
29-2
2751141510
ref: 29-2
27511-14121
SPROCKET,ENGINE
€ 27.50
30
0918020039
ref: 30
SPACER(20X25X12.5)
€ 9.50
31
0914016013
ref: 31
NUT
€ 14.00
32
0916720012
ref: 32
WASHER,LOCK
€ 2.50
33
0928020001
ref: 33
O RING(D:1,ID:19.5)
€ 2.00
34-1
2760040100
ref: 34-1
27600-28C01-116
CHAIN ASSEMBLY,DRIVE
€ 80.00
34-2
2760041530
ref: 34-2
27600-28C01-116
CHAIN ASSEMBLY,DRIVE
€ 80.00
35-1
2762040000
ref: 35-1
27620-14252
JOINT ASSEMBLY,CHAIN
€ 3.00
35-2
2762041530
ref: 35-2
27620-41531
JOINT ASSEMBLY,CHAIN
€ 3.00
36
2764141500
ref: 36
PLATE,FRONT CHAIN GUIDE
€ 45.50
37
0918006069
ref: 37
SPACER(6.5X14X7.5)
€ 3.00
38
0151706258
ref: 38
01550-06257
BOLT
€ 2.50
