CRANKCASE
PE175 1981 (X) USA (E03)

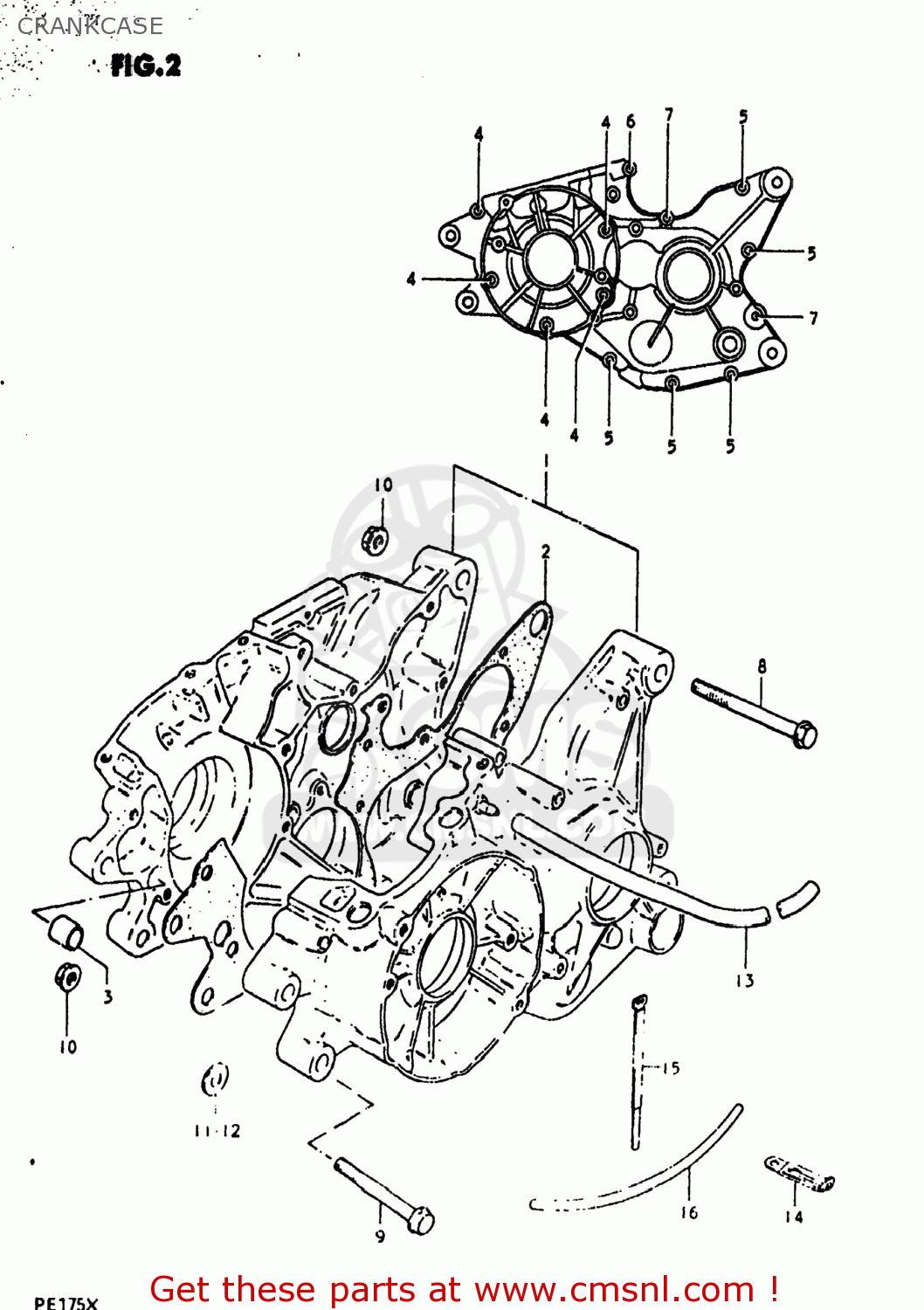

Crankcase diagram PE175 1981 (X) USA (E03)
CRANKCASE PE175 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130040860
ref: 1
CRANKCASE SET
€ 324.00
2
1148140500
ref: 2
11481-40511
GASKET,CRANKCASE (MCA)
€ 15.50
3
0920613001
ref: 3
04211-13189
PIN
€ 2.50
4
0211206458
ref: 4
02112-06457
SCREW (6X45)
€ 2.00
5
0211206508
ref: 5
02112-06507
SCREW
€ 2.50
6
0211206557
ref: 6
SCREW
€ 2.50
7
0211206608
ref: 7
02112-06607
SCREW 6X60
€ 2.50
8
0151708958
ref: 8
01550-08957
BOLT (8X95)
€ 3.50
9
0910308037
ref: 9
BOLT(8X67)
€ 6.50
10
0831931088
ref: 10
08319-3108A
NUT
€ 2.50
11
0916908022
ref: 11
WASHER
€ 4.00
12
0916908023
ref: 12
WASHER
€ 4.00
13
0934305037
ref: 13
09352-50823-00B
HOSE
€ 13.00
14
0940406412
ref: 14
09404-06432
CLAMP
€ 2.50
15
0940711301
ref: 15
09407-18301
CLAMP L:110
€ 6.00
16
0934304010
ref: 16
09352-40703-600
HOSE
€ 3.00
