FRAME COVER
PE175 1981 (X) USA (E03)

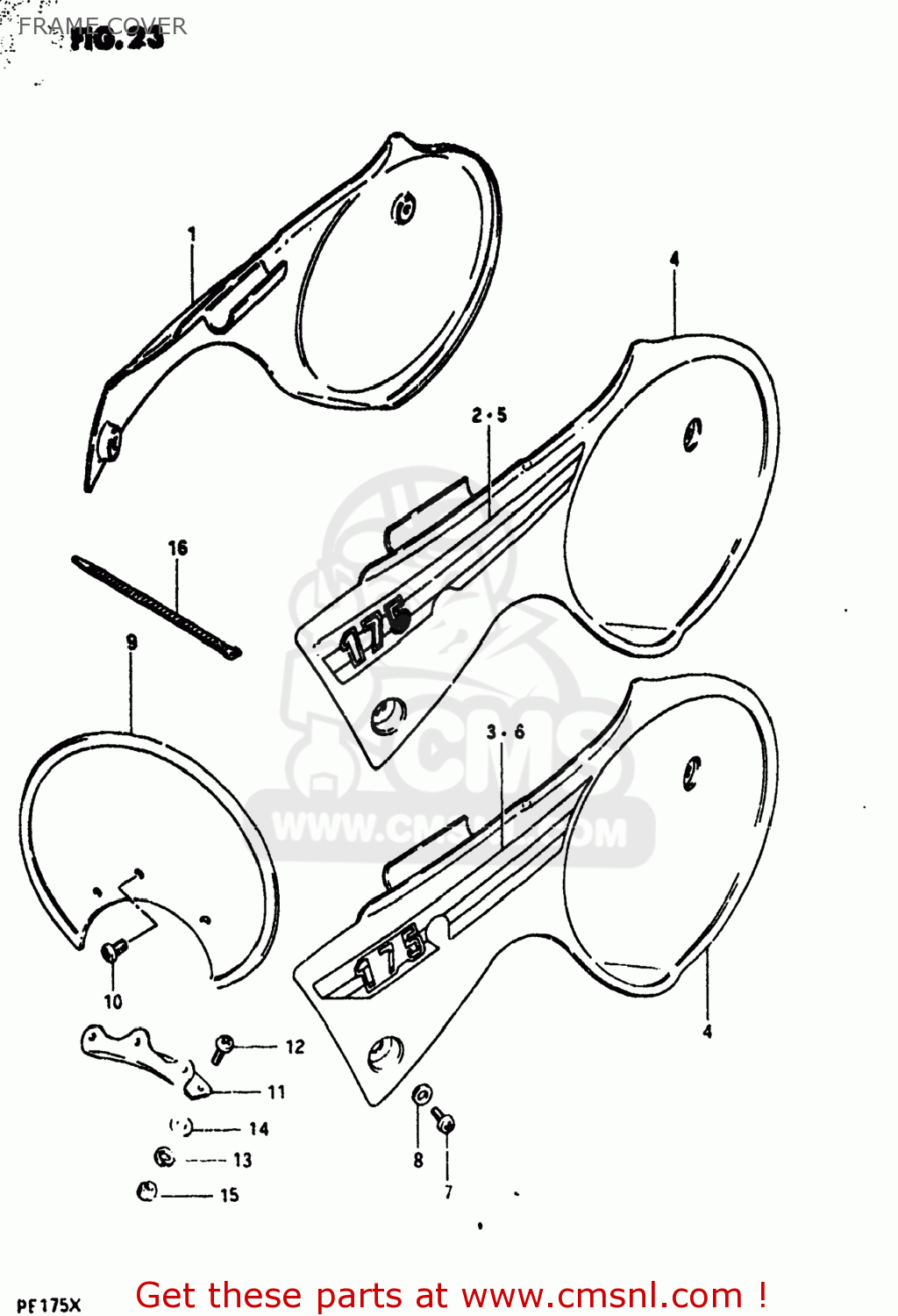

Frame cover diagram PE175 1981 (X) USA (E03)
FRAME COVER PE175 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4711140501163
ref: 1
COVER,FRAME,R(YELLOW)
€ 51.00
2
681364050074H
ref: 2
TAPE,FRAME COVER
€ 6.50
3
681364051076P
ref: 3
TAPE,FRAME COVER
€ 7.50
4
4721140501163
ref: 4
COVER,FRAME,L(YELLOW)
€ 51.00
5
681464050074H
ref: 5
TAPE,FRAME COVER
€ 6.00
6
681464051076P
ref: 6
TAPE,FRAME COVER,LEFT
€ 8.00
7
0214206128
ref: 7
02142-06127
SCREW
€ 1.50
8
0916006007
ref: 8
09160-06084
WASHER
€ 2.00
9
9491141510
ref: 9
PLATE,NUMBER,FRONT
€ 23.00
10
0214206108
ref: 10
02142-06107
SCREW
€ 2.00
11-1
9492141520
ref: 11-1
BRACKET FR NUM PLATE
€ 0.00
11-2
9492141530
ref: 11-2
BRACKET
€ 9.00
12
0211205128
ref: 12
02112-05127
SCREW
€ 2.50
13
0832121058
ref: 13
08321-0105A
LOCK WASHER
€ 2.00
14
0832221058
ref: 14
08322-01057
WASHER
€ 2.50
15
0831011058
ref: 15
08310-00057
NUT
€ 2.50
16
0940720401
ref: 16
09407-25402
CLAMP
€ 4.50
