CRANKSHAFT
PE175 1981 (X) USA (E03)

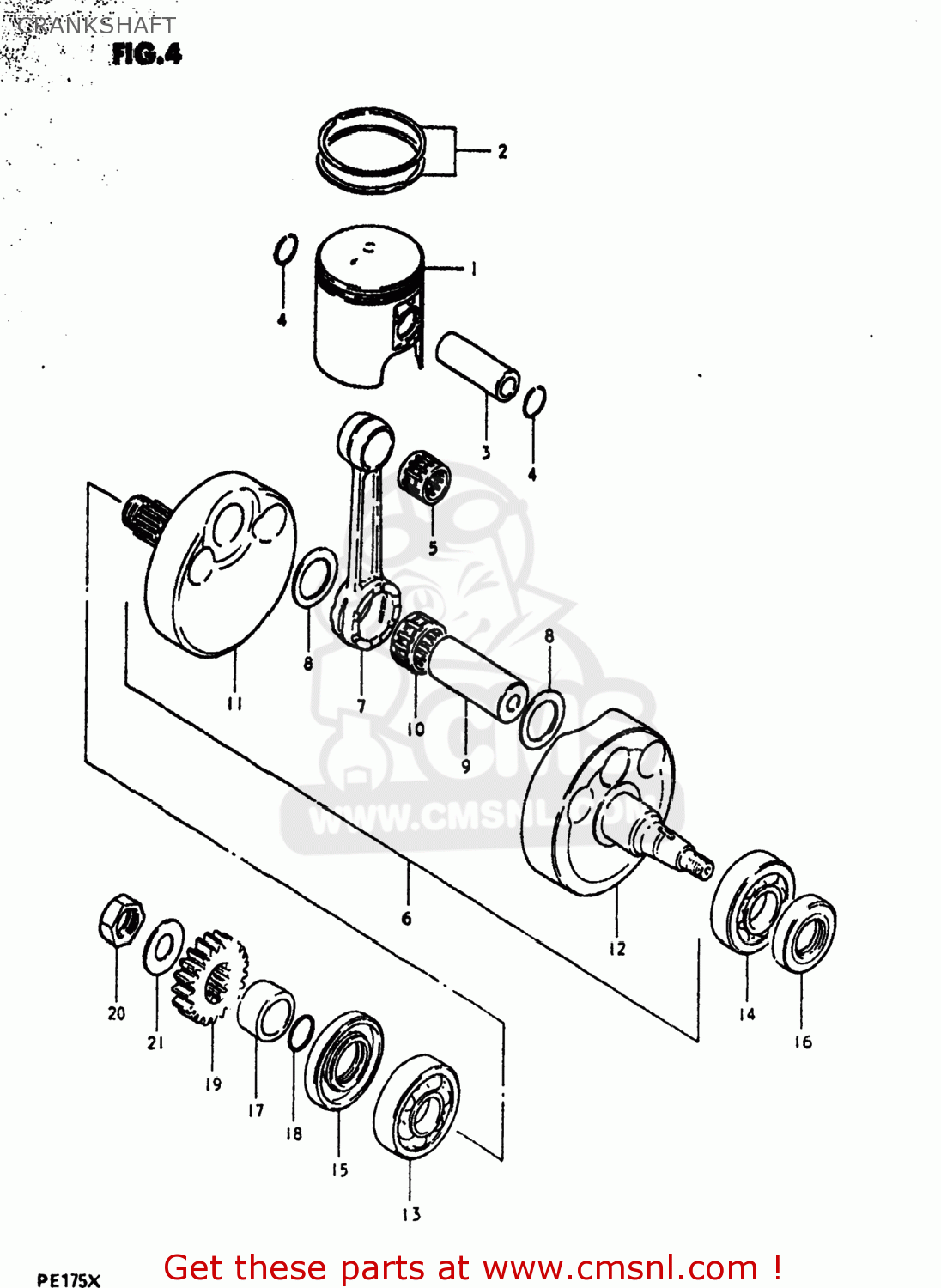

Crankshaft diagram PE175 1981 (X) USA (E03)
CRANKSHAFT PE175 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1211040500
ref: 1-1
12110-40502
PISTON
€ 60.00
1-2
1211040501
ref: 1-2
12110-40502
PISTON
€ 60.00
1-3
1211040500025
ref: 1-3
12103-40880-025
PISTON
€ 130.00
1-4
1211040501025
ref: 1-4
12103-40880-025
PISTON
€ 130.00
1-5
1211040500050
ref: 1-5
12103-40880-050
PISTON
€ 107.00
1-6
1211040501050
ref: 1-6
12103-40880-050
PISTON
€ 107.00
2-1
1214041500
ref: 2-1
RING SET,PISTON
€ 36.50
2-2
1214040530
ref: 2-2
RING SET,PISTON(STD)
€ 52.50
2-3
1214041500025
ref: 2-3
RING SET,PISTON(OS:0.25)
€ 58.00
2-4
1214040530025
ref: 2-4
RING SET,PISTON
€ 36.50
2-5
1214041500050
ref: 2-5
RING SET,PISTON(OS:0.50)
€ 61.00
2-6
1214040530050
ref: 2-6
RING SET,PISTON
€ 24.00
3
1215118001
ref: 3
12151-60D00
PIN,PISTON
€ 15.00
4
0938116001
ref: 4
RING,SNAP 16MM
€ 1.50
5
0926316005
ref: 5
09263-16015
BEARING
€ 15.00
6
1220040500
ref: 6
CRANKSHAFT ASSEMBLY
€ 0.00
7
1216141500
ref: 7
ROD,CONNECTING
€ 109.50
8
0916022010
ref: 8
WASHER(22X35X1)
€ 6.50
9
1221141500
ref: 9
12211-29001
PIN,CRANK
€ 30.50
10
0926322028
ref: 10
09263-22032
BEARING
€ 22.50
11
1222140500
ref: 11
CRANKSHAFT
€ 0.00
12
1226141501
ref: 12
CRANKSHAFT,LEFT
€ 148.50
13
0926222012
ref: 13
09262-22025
BEARING
€ 63.50
14
0926225048
ref: 14
09262-25070-0A0
BEARING
€ 31.50
15
0928929002
ref: 15
SEAL,OIL(29X47X8)
€ 15.00
16
0928325066
ref: 16
SEAL,OIL(25X44X7)
€ 7.00
17
0918020073
ref: 17
SPACER
€ 6.50
18
0928020004
ref: 18
O RING(D:2.4,ID:19.8)
€ 3.00
19
2111141500
ref: 19
GEAR,PRIMARY DRIVE
€ 31.50
20
0914016002
ref: 20
NUT
€ 4.00
21
0916416002
ref: 21
WASHER
€ 3.00
