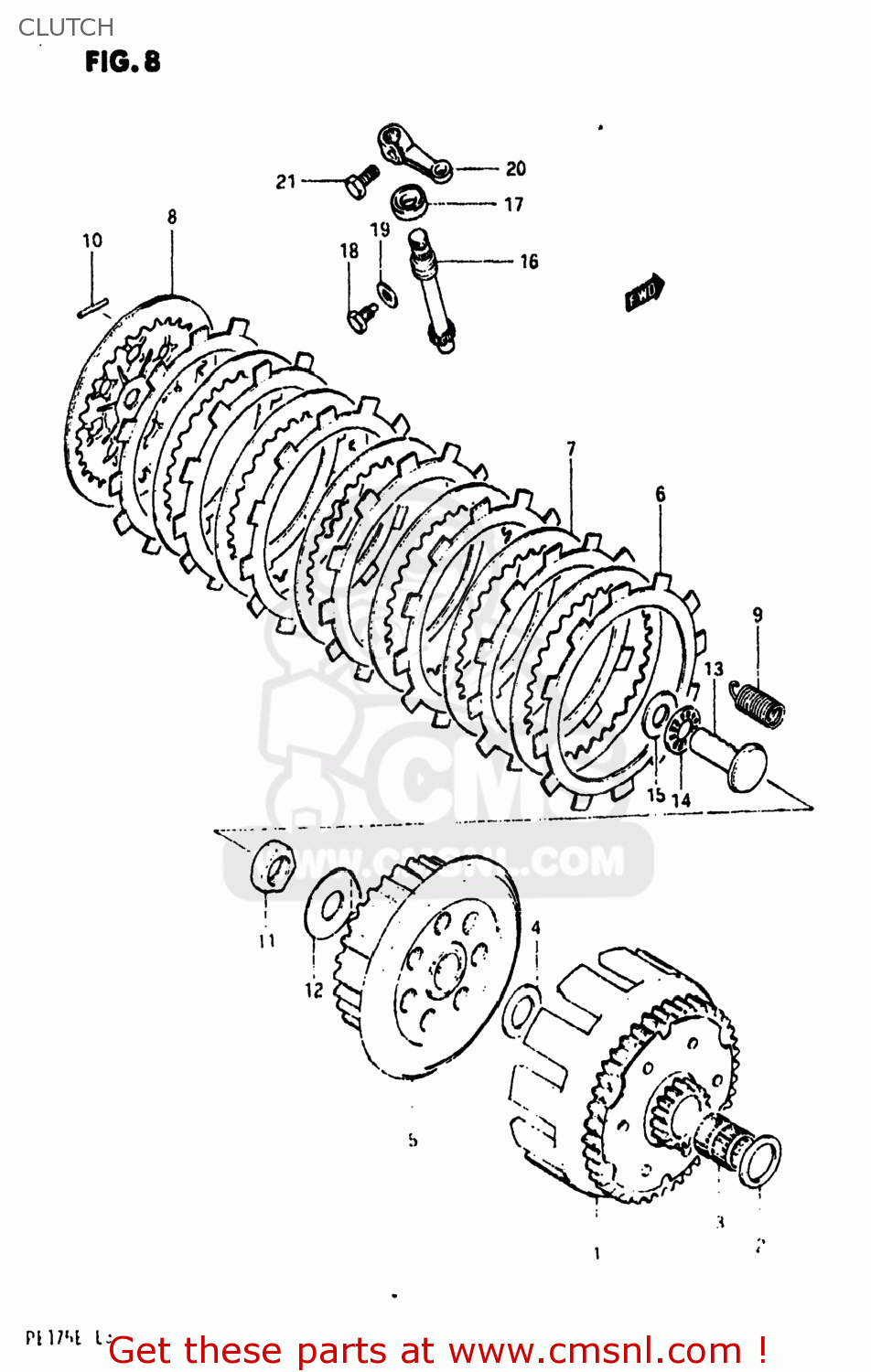

CLUTCH

ref

part #

description

quantity

1

2120041500
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVE

€ 443.50

1

2120041500
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVE

€ 443.50

2

0821120323
ref: 2

WASHER

€ 2.50

3

0926320023
ref: 3

BEARING(20X25X26)

€ 15.00

4

0821117342
ref: 4

WASHER

€ 3.00

5

2141041301
ref: 5

HUB,CLUTCH SLEEVE

€ 105.00

6

2144128301
ref: 6
21441-13A01

PLATE,CLUTCH DRIVE

€ 8.50

7-1

2145128000
ref: 7-1
21451-19A00

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

7-2

2145141701
ref: 7-2
21451-19A00

PLATE,CLUTCH DRIVEN

€ 4.50

8

2146028000
ref: 8

PLATE,CLUTCH PRESSURE

€ 21.50

9

0944312018
ref: 9

SPRING

€ 3.00

10

0926102001
ref: 10

PIN(2.5X19.8)

€ 1.50

11

0914014002
ref: 11

NUT

€ 4.00

12

0916914002
ref: 12

WASHER,LOCK

€ 1.50

13

2316528300
ref: 13
23165-46000

RACK,CLUTCH RELEASE

€ 20.00

14

0926310002
ref: 14

BEARING(10X22X2.8)

€ 8.50

15

0916010021
ref: 15
09160-10121

WASHER(10.1X21.4X0.8)

€ 3.00

16

2326141301
ref: 16

PINION,CLUTCH RELEASE

€ 27.50

17

0928410002
ref: 17

SEAL,OIL (10X17X5)

€ 3.50

18

0913506009
ref: 18

BOLT(6X12)

€ 2.00

19

0832221068
ref: 19
08322-01067

WASHER

€ 2.00

20

2327146000
ref: 20
23271-46010

ARM,CLUTCH RELEASE

€ 14.50

21

0110706168
ref: 21
01500-06167

BOLT, UPPER

€ 3.00

all assemblies
