STAND - FOOTREST
PE175 1984 (E) USA (E03)

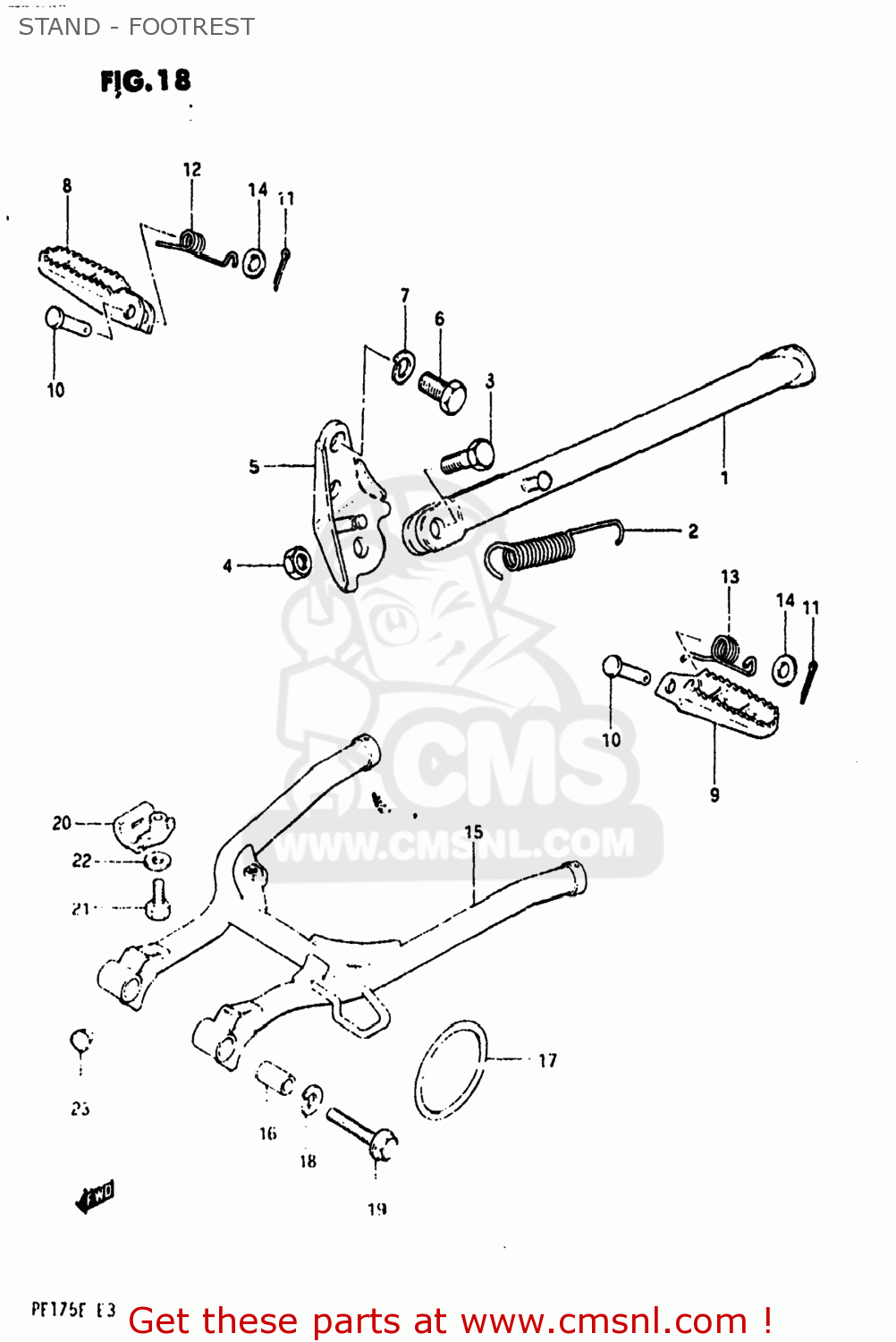

Stand - footrest diagram PE175 1984 (E) USA (E03)
STAND - FOOTREST PE175 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
423101440019F
ref: 1
42310-14400-019
STAND,SIDE
€ 79.00
2
0944317007
ref: 2
SPRING
€ 4.50
3
0910010067
ref: 3
BOLT(10X30)
€ 3.50
4
0831022108
ref: 4
08310-00107
NUT
€ 2.50
5
423301440019F
ref: 5
42330-14400-019
BRACKET,SIDE STAND
€ 97.50
6
0910010118
ref: 6
BOLT(10X19)
€ 3.00
7
0832121108
ref: 7
08321-01107
LOCK WASHER
€ 2.00
8
4355137202
ref: 8
43551-37202-019
FOOTREST,RIGHT
€ 31.00
9
4356140401
ref: 9
43561-40401-019
FOOTREST
€ 24.50
10
0920008035
ref: 10
09200-08064
PIN
€ 6.50
11
0411120208
ref: 11
04111-2020A
PIN 20X20
€ 1.50
12
0944814014
ref: 12
09448-14014-XC0
SPRING
€ 3.00
13
0944814018
ref: 13
09448-14018-XC0
SPRING
€ 4.00
14
0832221088
ref: 14
08322-01087
WASHER
€ 2.00
15
4210014402
ref: 15
STAND,CENTER
€ 65.00
16
0918010001
ref: 16
SPACER(10.5X16X30)
€ 3.50
17
4224114400
ref: 17
O RING CTR STAND
€ 8.00
18
0832121108
ref: 18
08321-01107
LOCK WASHER
€ 2.00
19
0152710508
ref: 19
01550-10507
BOLT
€ 3.50
20
4219514400
ref: 20
PROTECTOR CTR STAND
€ 6.00
21
0110706258
ref: 21
01500-06257
BOLT
€ 2.00
22
0832221068
ref: 22
08322-01067
WASHER
€ 2.00
23
0932108005
ref: 23
CUSHION
€ 2.50
