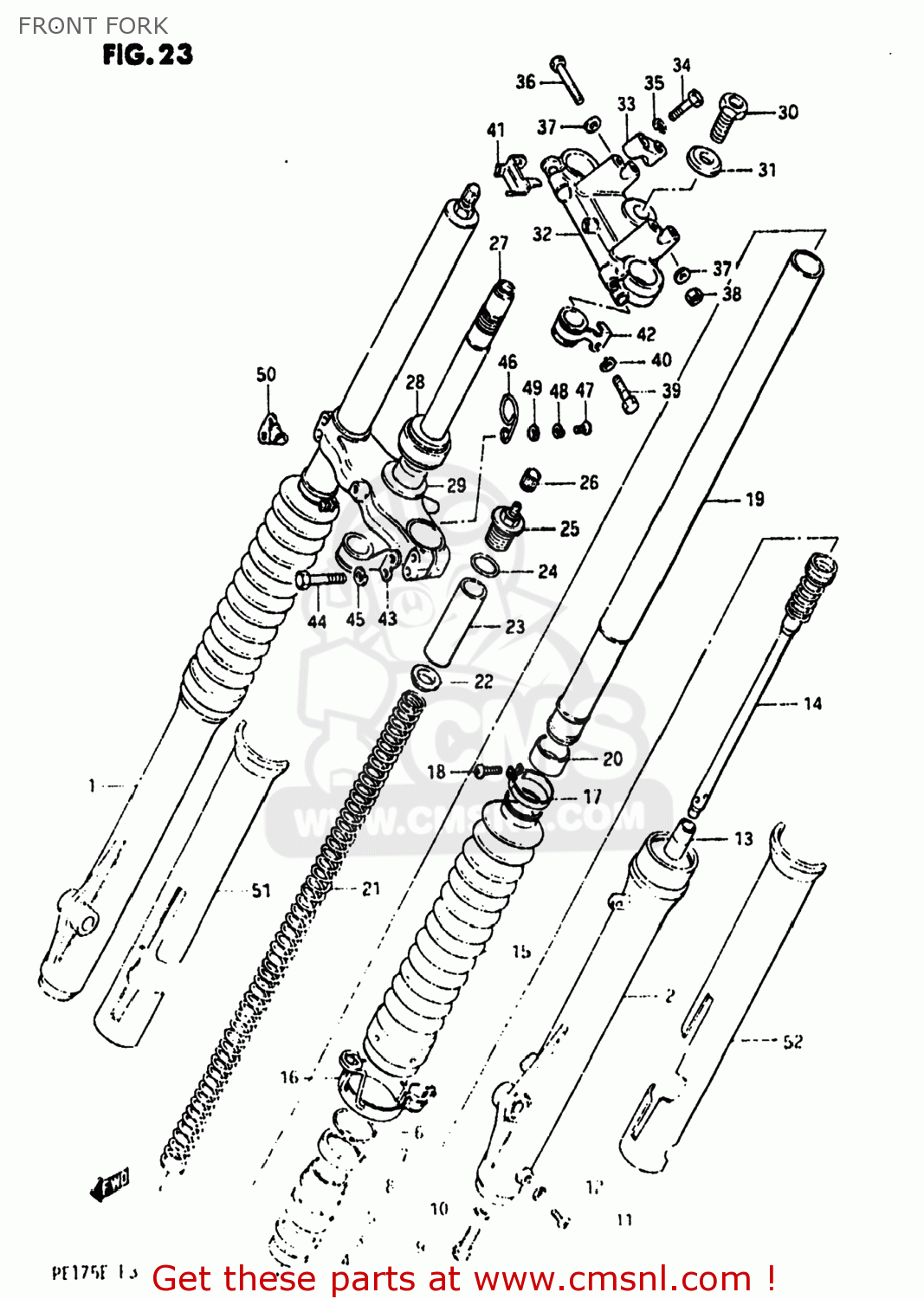

FRONT FORK

ref

part #

description

quantity

0

511001446019F
ref: 0
51100-14461-19F

DAMPER SET

€ 322.50

1

5113114400
ref: 1

TUBE,OUTER,RIGHT

€ 0.00

2

5114114400
ref: 2

TUBE,OUTER,LEFT

€ 0.00

3

5115814100
ref: 3

WASHER(40X50X2.3)

€ 2.50

4

5116714100
ref: 4
51167-13A00

METAL,SLIDE

€ 7.00

5

5115340300
ref: 5

SEAL,OIL

€ 11.50

6

5115640301
ref: 6

RING,STOPPER

€ 4.50

7

5114940301
ref: 7

CASE,DUST SEAL

€ 12.50

8

5117340301
ref: 8

SEAL,DUST

€ 12.50

9

5114740300
ref: 9

BOLT,CYLINDER

€ 5.50

10

5114840300
ref: 10

GASKET,CYLINDER (NAS)

€ 2.50

11

0211204088
ref: 11
02112-04087

SCREW

€ 1.50

12

5118303010
ref: 12

GASKET,DRAIN,PLUG (NAS)

€ 3.00

13

5119514100
ref: 13

PIECE,OIL LOCK

€ 8.50

14

5114614400
ref: 14

CYLINDER,FRONT FORK

€ 0.00

15

515711446019F
ref: 15
51571-40300

BOOT,FRONT FORK COVER

€ 31.50

16

5157214400
ref: 16

BAND,FORK COVER BOOT

€ 26.50

17

5157540300
ref: 17
51575-44B00

BAND,BOOT

€ 9.00

18

0211204108
ref: 18
02112-04107

SCREW 4X10

€ 2.00

19

5111014460
ref: 19
51110-14461

TUBE,FORK,INNER

€ 185.50

20

5112114100
ref: 20

PISTON

€ 10.50

21

5117114400
ref: 21

SPRING,FRONT FORK

€ 62.50

22

5117240300
ref: 22

GUIDE

€ 5.00

23

5117614460
ref: 23

SPACER,FRONT FORK SPRING

€ 0.00

24

5111740300
ref: 24

O RING

€ 2.50

25

5135114460
ref: 25

BOLT,STEERING STEM HEAD

€ 15.00

26

5129420400
ref: 26

CAP

€ 3.50

27

5141014460
ref: 27

STEM,STEERING

€ 0.00

28

0926530005
ref: 28
09265-30009

BEARING

€ 49.50

29

0821130402
ref: 29
09181-30184

WASHER,THRUST

€ 4.00

30

5135141320
ref: 30

BOLT

€ 8.50

31

5135641310
ref: 31

WASHER

€ 6.00

32

5131114460
ref: 32

HEAD,STEERING STEM

€ 0.00

33

5621127100
ref: 33

HOLDER,HANDLEBAR

€ 12.50

34

0110708358
ref: 34
01500-0835B

BOLT

€ 3.50

35

0832121088
ref: 35
08321-01087

LOCK WASHER

€ 2.00

36

0110708508
ref: 36
01500-08507

BOLT 8X50

€ 3.00

37

0832221088
ref: 37
08322-01087

WASHER

€ 2.00

38

0831012088
ref: 38
08310-00087

NUT

€ 2.00

39

0110710458
ref: 39
01500-1045A

BOLT

€ 2.00

40

0832121108
ref: 40
08321-01107

LOCK WASHER

€ 2.00

41

9641040630
ref: 41

BRACKET,TOOL FITTING,UPPER

€ 4.00

42

5862140500
ref: 42

GUIDE,CABLE

€ 8.00

43

5862140301
ref: 43

CLIP,CABLE

€ 14.50

44

0110708458
ref: 44
01500-08453

BOLT 8X45

€ 2.50

45

0832121088
ref: 45
08321-01087

LOCK WASHER

€ 2.00

46

5145531010
ref: 46

CLIP

€ 5.00

47

0211206148
ref: 47

SCREW

€ 2.00

48

0832121068
ref: 48
08321-01067

LOCK WASHER

€ 2.50

49

0832221068
ref: 49
08322-01067

WASHER

€ 2.00

50

9642141401
ref: 50

BRACKET,TOOL FITTING,LOWER

€ 10.50

51

5120114460
ref: 51

PROTECTOR,FRONT FORK,RIGHT

€ 18.00

52

5120214460
ref: 52

PROTECTOR

€ 15.00

all assemblies
