CRANKCASE
PE250 1981 (X) USA (E03)

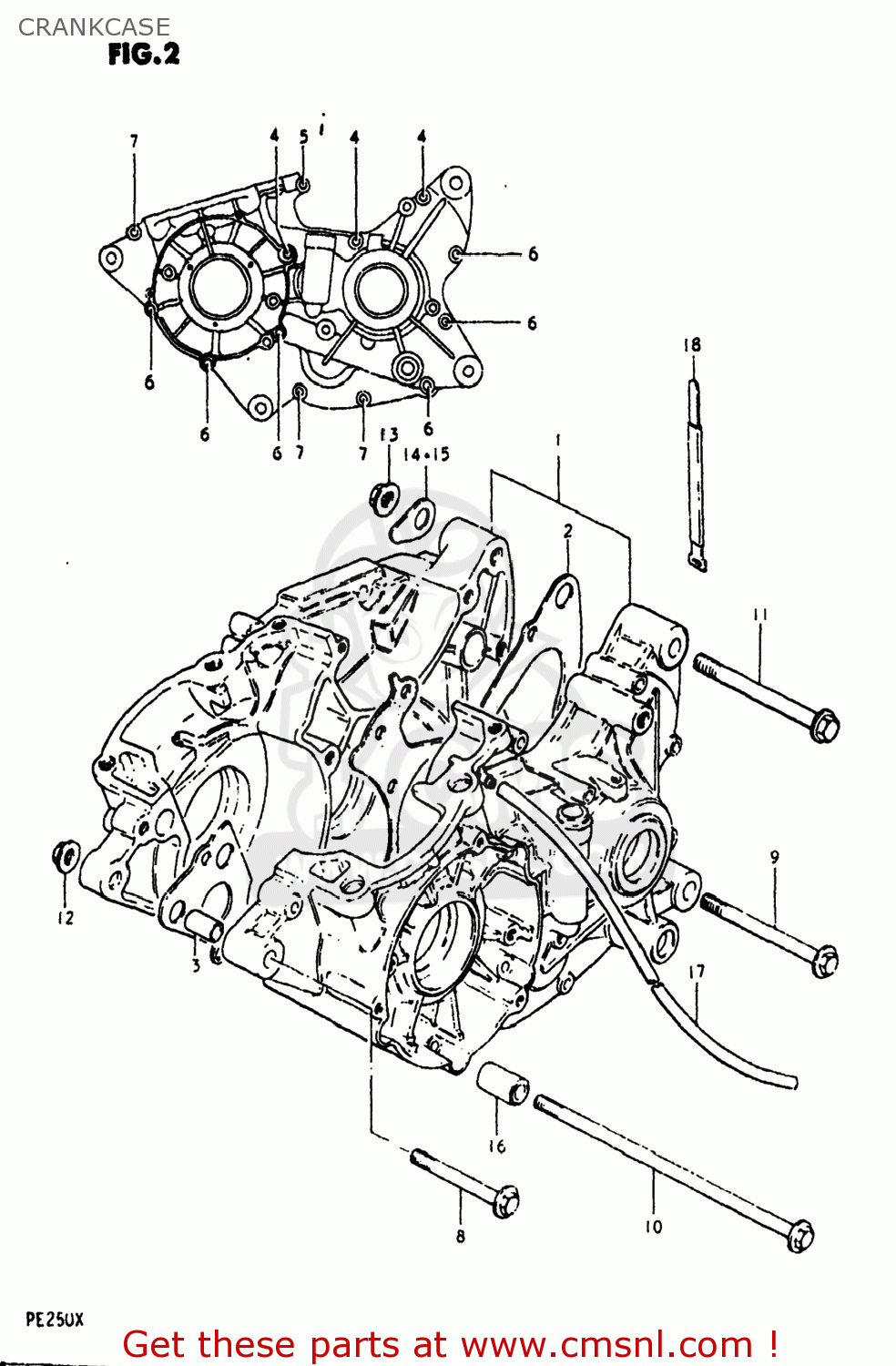

Crankcase diagram PE250 1981 (X) USA (E03)
CRANKCASE PE250 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130040870
ref: 1
CRANKCASE SET
€ 762.50
2
1148140300
ref: 2
11481-40300-H17
GASKET,CRANKCASE (MCA)
€ 20.00
3
0920613001
ref: 3
04211-13189
PIN
€ 2.50
4
0211206658
ref: 4
02112-06657
SCREW 6X65
€ 2.00
5
0211206557
ref: 5
SCREW
€ 2.50
6
0211206508
ref: 6
02112-06507
SCREW
€ 2.50
7
0211206355
ref: 7
02112-0635B
SCREW
€ 2.50
8
0910308037
ref: 8
BOLT(8X67)
€ 6.50
9-1
0910308009
ref: 9-1
09103-08070
BOLT
€ 5.00
9-2
0910308051
ref: 9-2
09103-08139
BOLT
€ 5.50
10
0910308045
ref: 10
09103-08087
BOLT
€ 12.50
11
0910310016
ref: 11
09103-10110
BOLT
€ 6.50
12
0831931088
ref: 12
08319-3108A
NUT
€ 2.50
13
0831931088
ref: 13
08319-3108A
NUT
€ 2.50
14
0916910011
ref: 14
WASHER
€ 1.00
15
0916910012
ref: 15
WASHER
€ 1.00
16
0918008080
ref: 16
SPACER(8.6X16X26)
€ 5.50
17
0934305151
ref: 17
09352-50823-00B
HOSE
€ 13.00
