RH HANDLE GRIP (PE250X)
PE250 1981 (X) USA (E03)

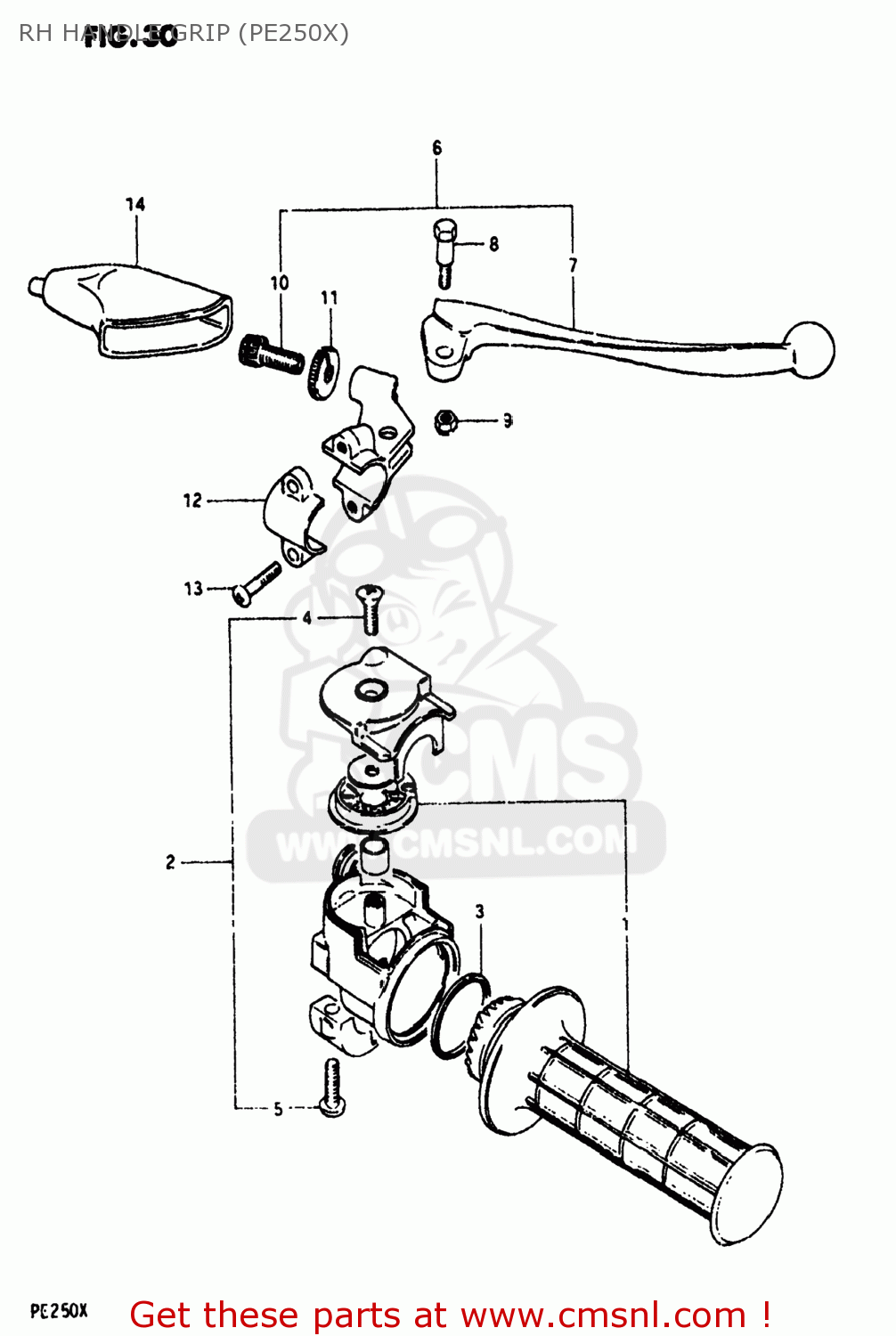

Rh handle grip (pe250x) diagram PE250 1981 (X) USA (E03)
RH HANDLE GRIP (PE250X) PE250 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5711040810
ref: 1
GRIP SET,THROTTLE
€ 28.50
2
5710040330
ref: 2
CASE ASSY,THROTTLE
€ 48.50
3
5718440300
ref: 3
V-RING,THROTTLE GRIP
€ 6.50
4
0213205168
ref: 4
02122-05167
SCREW
€ 2.00
5
0211205208
ref: 5
02112-05207
SCREW 5X20
€ 3.00
6
5730014100
ref: 6
LEVER ASSEMBLY,BRAKE
€ 0.00
7
5742029400
ref: 7
LEVER,BRAKE
€ 30.50
8
5743111011
ref: 8
57431-11013
BOLT,LEVER
€ 6.00
9
0831921068
ref: 9
08319-2106A
NUT 6MM
€ 2.00
10
5744111010
ref: 10
ADJUSTER,CABLE
€ 8.00
11
5744211010
ref: 11
NUT,CABLE ADJUSTER
€ 4.00
12
5751214100
ref: 12
BRACKET,LEVER
€ 12.00
13
0211206208
ref: 13
02112-06207
SCREW
€ 2.00
14
5734140001
ref: 14
57341-40002
COVER,CLUTCH LEVER
€ 7.50
