FRONT WHEEL
PE250 1981 (X) USA (E03)

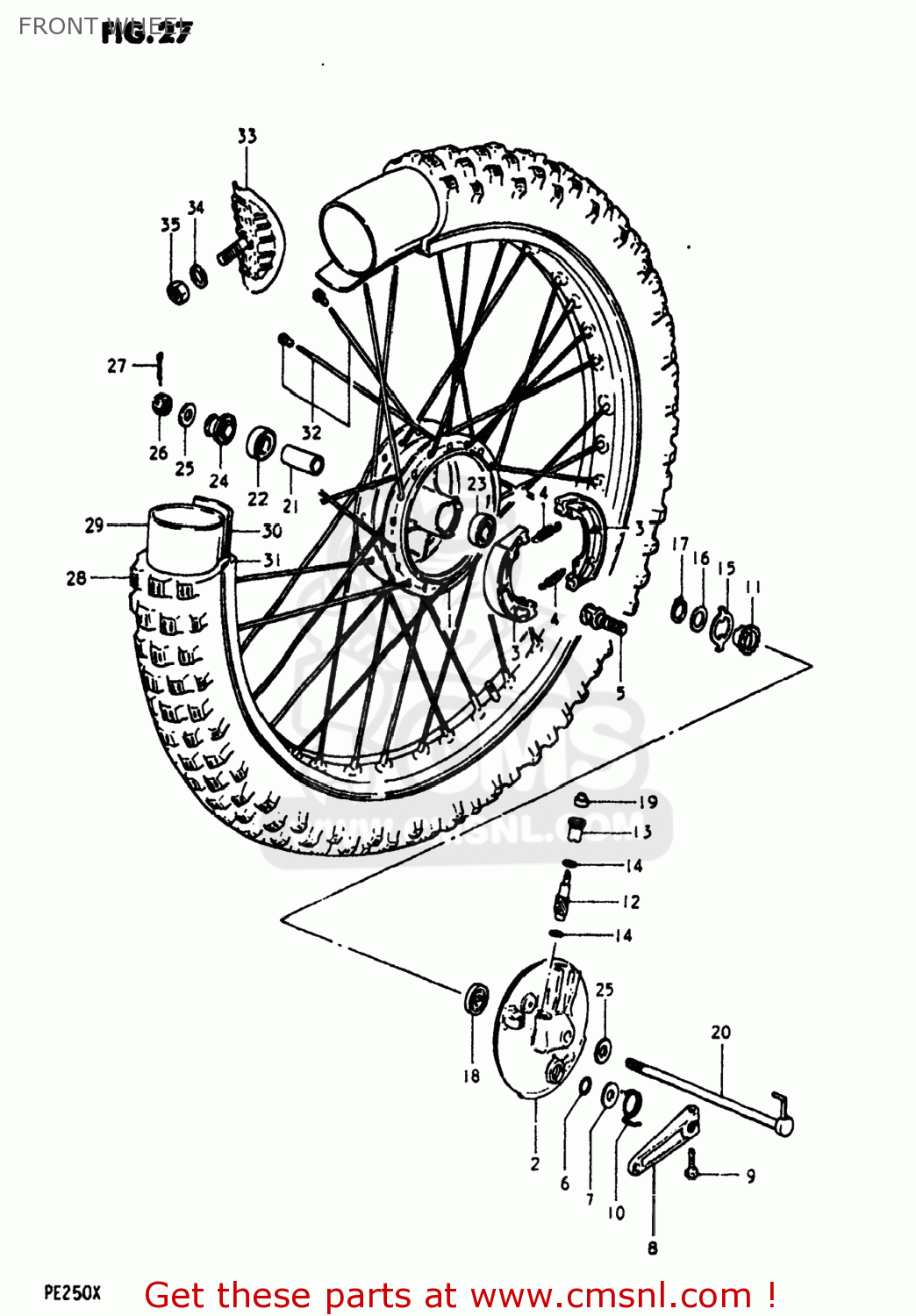

Front wheel diagram PE250 1981 (X) USA (E03)
FRONT WHEEL PE250 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411040302
ref: 1
DRUM,FRONT HUB
€ 208.00
2
5421040600
ref: 2
PANEL,FRONT HUB
€ 90.50
3
5441041410
ref: 3
64400-02830
SHOE,BRAKE
€ 35.00
4
5542041100
ref: 4
SPRING
€ 5.50
5
5444040302
ref: 5
CAM,FRONT BRAKE
€ 24.00
6
0928015001
ref: 6
09280-15003
O-RING,BOSS
€ 2.00
7
0916015001
ref: 7
09160-15048
WASHER (15X24X1.6)
€ 2.50
8
5445132400
ref: 8
54451-32401
LEVER,FRONT BRAKE CAM
€ 48.00
9
0110706258
ref: 9
01500-06257
BOLT
€ 2.00
10
0944832007
ref: 10
SPRING
€ 8.00
11
5461140600
ref: 11
54611-40601
GEAR,SPEEDOMETER
€ 15.00
12
5462140600
ref: 12
PINION,SPEEDOMETER
€ 9.00
13-1
5463211020
ref: 13-1
54632-49200
BUSHING,SPEEDOMETER PINION
€ 6.50
13-2
5463249200
ref: 13-2
BUSHING,SPEEDOMETER PINION
€ 6.50
14
0916005001
ref: 14
09160-05001-A05
WASHER (5.1X9X0.4)
€ 2.00
15
5466011031
ref: 15
DRIVER,SPEEDOMETER GEAR
€ 31.00
16
0916022001
ref: 16
WASHER(22.5X27X1)
€ 2.00
17
0833111229
ref: 17
08331-3122A
CIRCLIP
€ 2.00
18
0928526003
ref: 18
SEAL,OIL(26X38X4)
€ 22.00
19
0928906001
ref: 19
SEAL,OIL(6X10X3)
€ 4.00
20
5471040500
ref: 20
AXLE,FRONT
€ 40.50
21
0918012041
ref: 21
09180-12144
SPACER (12.6X19X52)
€ 4.50
22
0812362017
ref: 22
08133-62017
BEARING, RH
€ 15.00
23
0814362017
ref: 23
BEARING
€ 11.50
24
5474041100
ref: 24
54740-37200
SPACER,FRONT AXLE,RIGHT
€ 10.50
25
0832211128
ref: 25
08322-01127
WASHER
€ 2.00
26
0831441128
ref: 26
08314-4012A
NUT, REAR AXLE
€ 2.50
27
0411130308
ref: 27
04111-3030A
COTTER PIN
€ 1.50
28
5510014230
ref: 28
TIRE,FRONT
€ 0.00
29
5520028330
ref: 29
55200-16510
TUBE,INNER
€ 32.50
30
5526128330
ref: 30
55261-14540
PROTECTOR,WHEEL,INNER
€ 5.00
31-1
5531140400
ref: 31-1
55311-40201
RIM,FRONT WHEEL
€ 240.50
31-2
5531140410
ref: 31-2
RIM,FRONT WHEEL
€ 0.00
32-1
5532040410
ref: 32-1
SPOKE SET,FRONT
€ 39.00
32-2
5532040420
ref: 32-2
SPOKE SET,FRONT
€ 48.50
33
6527030001
ref: 33
65270-43D00
STOPPER,BEAD
€ 30.50
34
0832211088
ref: 34
08322-01087
WASHER
€ 2.00
35
0831012088
ref: 35
08310-00087
NUT
€ 2.00
