CARBURETOR
PV50 1991 (M) (E01)

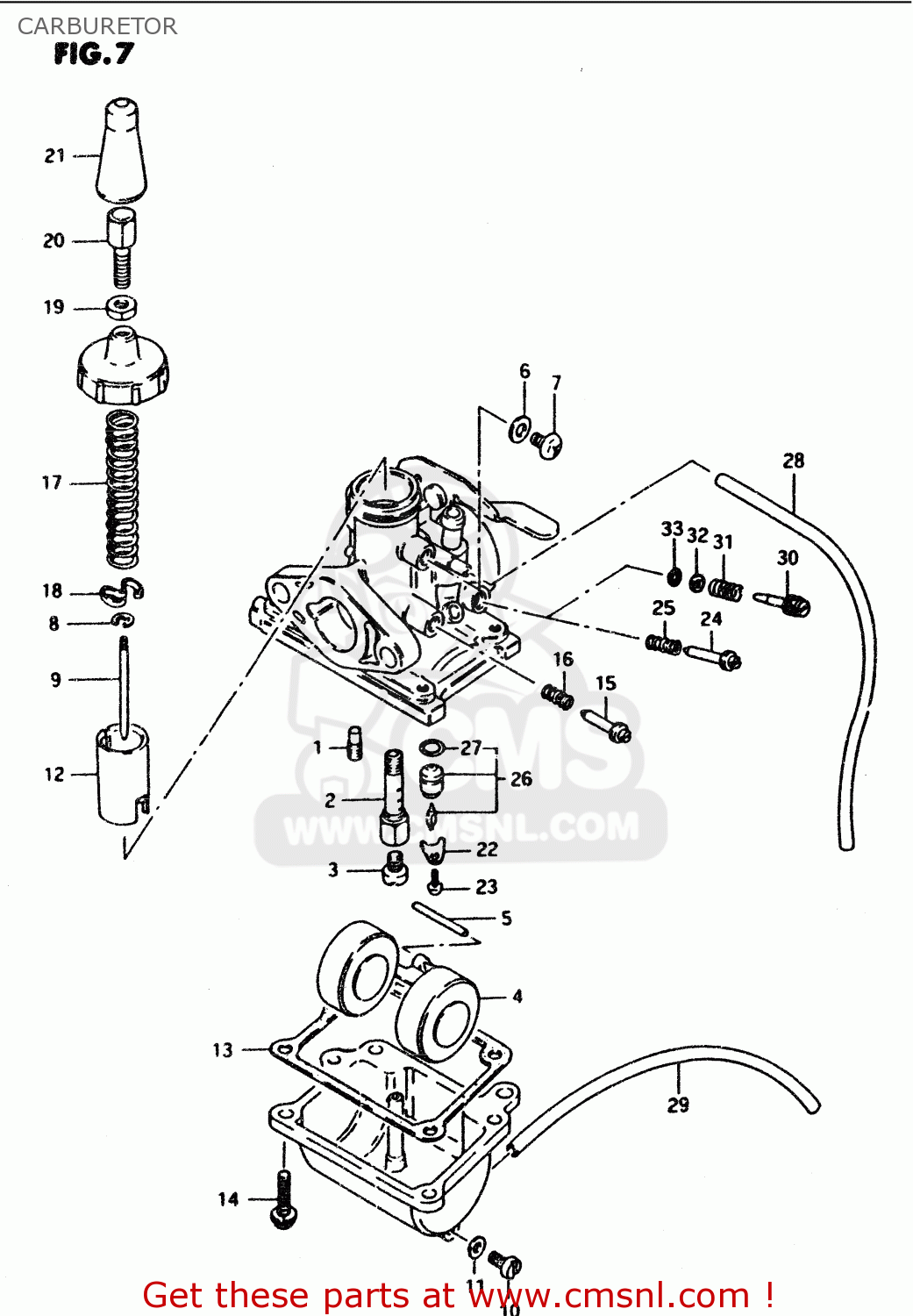

Carburetor diagram PV50 1991 (M) (E01)
CARBURETOR PV50 1991 (M) (E01)
×
prices are in EUR
ref
part #
description
quantity
0
1320017210
ref: 0
MODEL X/D/H/L E15
CARBURETOR ASSY
€ 0.00
0
1320017220
ref: 0
MODEL M E15
CARBURETOR ASSY
€ 0.00
0
1320017250
ref: 0
MODEL R E15
CARBURETOR ASSY
€ 188.00
0
1320017230
ref: 0
MODEL M P15
CARBURETOR ASSY
€ 0.00
0
1320017260
ref: 0
MODEL R P15
CARBURETOR ASSY
€ 0.00
0
1320017200
ref: 0
E43
CARBURETOR ASSY
€ 124.00
1-1
0949220006
ref: 1-1
MODEL X/D/H/L E15
JET,PILOT
€ 9.00
1-2
0949215015
ref: 1-2
MODEL M/R E15,P15
JET,PILOT(15)
€ 11.00
1-3
0949215002
ref: 1-3
E43
JET,PILOT
€ 11.00
2-1
0949400238
ref: 2-1
MODEL X/D/H/L E15
JET, NEEDLE (E-0)
€ 13.00
2-2
0949400728
ref: 2-2
MODEL M E15,P15
JET, NEEDLE (E-2)
€ 0.00
2-3
0949400258
ref: 2-3
MODEL R E15,P15
JET, NEEDLE (E-7)
€ 0.00
2-4
0949400258
ref: 2-4
E43
JET, NEEDLE (E-7)
€ 0.00
3-1
0949157002
ref: 3-1
MODEL X/D/H/L E15
JET, MAIN (57.5)
€ 14.50
3-2
0949157006
ref: 3-2
MODEL M E15,P15
JET, MAIN (57.5)
€ 14.50
3-3
0949177004
ref: 3-3
E43
JET,MAIN(77.5)
€ 5.00
3-4
0949172010
ref: 3-4
MODEL R E15,P15
JET,MAIN(72.5)
€ 7.50
4-1
1325246110
ref: 4-1
MODEL X/D/H/L E15 E4
FLOAT
€ 24.00
4-2
1325002500
ref: 4-2
MODEL M E15,P15
FLOAT
€ 16.50
4-3
1325246110
ref: 4-3
MODEL R E15,P15
FLOAT
€ 24.00
5
1325420010
ref: 5
PIN,FLOAT
€ 3.00
6
1352346110
ref: 6
GASKET,DRAIN PLUG (NAS)
€ 3.00
7
0211205066
ref: 7
SCREW
€ 2.00
8-1
1339412110
ref: 8-1
MODEL X/D/H/L/M
CLIP,NEEDLE
€ 3.00
8-2
1339440D00
ref: 8-2
MODEL R
CLIP,NEEDLE
€ 3.00
9-1
1338346790
ref: 9-1
MODEL X/D/H/L/M E15
NEEDLE, JET (3D16-3)
€ 13.00
9-2
1338317230
ref: 9-2
MODEL M P15
NEEDLE, JET (3I14-2)
€ 13.50
9-3
1338304110
ref: 9-3
MODEL R E15,P15
NEEDLE,JET
€ 22.50
9-4
1338304110
ref: 9-4
E43
NEEDLE,JET
€ 22.50
10
1324705010
ref: 10
PLUG
€ 6.00
11
1324905010
ref: 11
GASKET,DRAIN,PLUG (NAS)
€ 1.50
12-1
1355146180
ref: 12-1
MODEL X/D/H/L/M E15,
VALVE,THROTTLE
€ 26.50
12-2
1355117200
ref: 12-2
MODEL R E15,P15
VALVE,THROTTLE
€ 0.00
12-3
1355117200
ref: 12-3
E43
VALVE,THROTTLE
€ 0.00
13-1
1325102410
ref: 13-1
MODEL X/D/H/L/M
GASKET (NAS)
€ 4.50
13-2
1325146110
ref: 13-2
MODEL R
GASKET,FLOAT CHAMBER (NAS)
€ 7.00
14
1360104148
ref: 14
SCREW
€ 2.50
15
1326701010
ref: 15
SCREW,THROTTLE STOP
€ 6.00
16
1326801010
ref: 16
SPRING
€ 3.50
17
1357346710
ref: 17
SPRING,THROTTLE VALVE RETURN
€ 3.00
18
1358107910
ref: 18
PLATE
€ 6.50
19
1366116600
ref: 19
NUT
€ 5.00
20-1
1357722600
ref: 20-1
MODEL X/D/H/L E15
ADJUSTER,CABLE
€ 6.00
20-2
1357748110
ref: 20-2
MODEL M E15,P15 E43
ADJUSTER,CABLE
€ 8.00
20-3
1357722600
ref: 20-3
MODEL R E15,P15
ADJUSTER,CABLE
€ 6.00
21-1
1368133010
ref: 21-1
MODEL X/D/H/L E15
CAP,CABLE ADJUSTER
€ 8.00
21-2
1368116600
ref: 21-2
MODEL M E15,P15 E43
CAP,RUBBER
€ 7.00
21-3
1368133010
ref: 21-3
MODEL R E15,P15
CAP,CABLE ADJUSTER
€ 8.00
22
1337346710
ref: 22
PLATE,NEEDLE VALVE FITING
€ 4.50
23
0211203083
ref: 23
SCREW
€ 1.50
24-1
1326904010
ref: 24-1
MODEL X/D/H/L E15
SCREW,AIR
€ 10.00
24-2
1326904010
ref: 24-2
MODEL R E15,P15
SCREW,AIR
€ 10.00
24-3
1326904010
ref: 24-3
E43
SCREW,AIR
€ 10.00
25
1326801010
ref: 25
MODEL X/D/H/L E15 MO
SPRING
€ 3.50
26
1337046710
ref: 26
VALVE ASSY,NEEDLE
€ 44.00
27
1337446710
ref: 27
O RING
€ 4.50
28-1
1368336A00
ref: 28-1
MODEL X/D/H/L/M
HOSE
€ 8.00
28-2
1368305400
ref: 28-2
MODEL R
HOSE, AIR VENT (3.5X6.5X350)
€ 2.50
29
1368440A00
ref: 29
HOSE(3X5X650)
€ 7.50
30-1
1326917220
ref: 30-1
MODEL M E15
SCREW,AIR
€ 0.00
30-2
1326917220
ref: 30-2
MODEL M P15
SCREW,AIR
€ 0.00
31
1349409410
ref: 31
MODEL M E15,P15
SPRING
€ 3.00
32
1360647A00
ref: 32
MODEL M E15,P15
WASHER
€ 2.00
33
1329529900
ref: 33
MODEL M E15,P15
O RING,PILOT AIR SCREW
€ 4.00
