SPEEDOMETER (E15)
PV50 1991 (M) (E01)

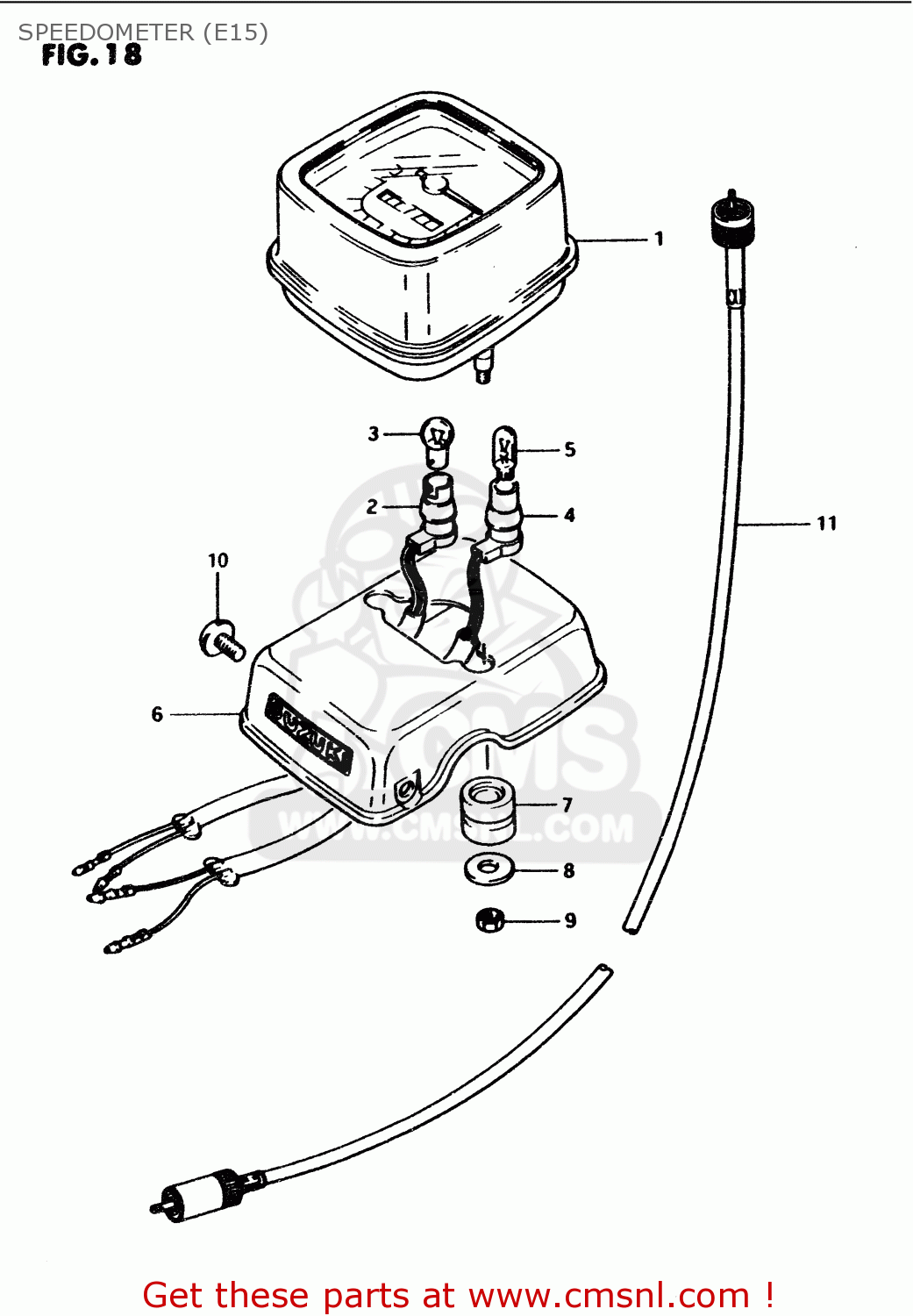

Speedometer (e15) diagram PV50 1991 (M) (E01)
SPEEDOMETER (E15) PV50 1991 (M) (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
3411017200
ref: 1-1
MODEL X/D/H/L/M
SPEEDOMETER
€ 121.00
1-2
3411017201
ref: 1-2
MODEL R
SPEEDOMETER
€ 121.00
2
3417345302
ref: 2
ARROW RIGHT34173-453
SOCKET,METER
€ 15.50
3
0947106002
ref: 3
BULB(6V/3W)
€ 2.50
4
3417345302
ref: 4
SOCKET,METER
€ 15.50
5
0947106053
ref: 5
BULB(6V,3W)
€ 2.50
6
3495017221
ref: 6
BRACKET,METER
€ 26.50
7
3418929330
ref: 7
CUSHION
€ 3.50
8
0916005017
ref: 8
WASHER (5.5X16X1.2)
€ 2.50
9
0831011057
ref: 9
NUT 5MM
€ 2.50
10-1
0214205104
ref: 10-1
MODEL X/D/H/L/M
SCREW 5X10
€ 2.50
10-2
0214205103
ref: 10-2
MODEL R
SCREW
€ 2.50
11
3491017202
ref: 11
CABLE, SPEEDOMETER
€ 60.50
