MAGNETO (MODEL X E15, MODEL D/H/L/M E43)

PV50 1991 (M) (E01)

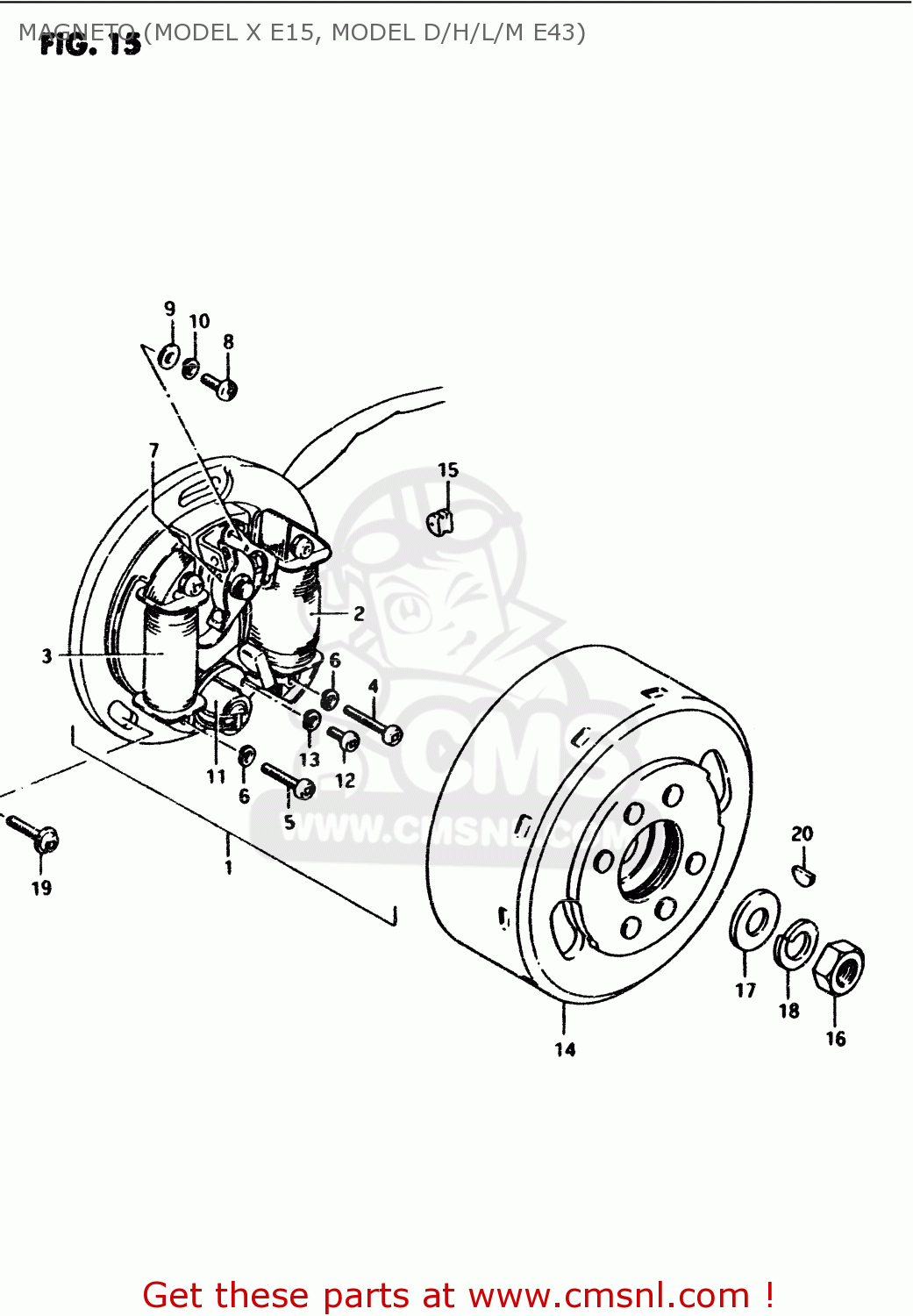

Magneto (model x e15, model d/h/l/m e43) diagram PV50 1991 (M) (E01)

MAGNETO (MODEL X E15, MODEL D/H/L/M E43) PV50 1991 (M) (E01)
MAGNETO (MODEL X E15, MODEL D/H/L/M E43) PV50 1991 (M) (E01)
MAGNETO (MODEL X E15, MODEL D/H/L/M E43) PV50 1991 (M) (E01)
prices are in EUR
ref
part #
description
quantity
1-1
3210117220
ref: 1-1
E15
STATOR ASSY
€ 0.00
1-2
3210117240
ref: 1-2
E43
STATOR ASSY
€ 0.00
2-1
3212017220
ref: 2-1
E15
COIL, LIGHTING
€ 0.00
2-2
3212046521
ref: 2-2
E43
COIL,LIGHTING
3212046521
€ 55.00
3
3214046120
ref: 3
COIL,PRIMARY
3214046120
€ 41.00
4
0211204258
ref: 4
SCREW 4X25
0211204258
€ 2.00
5
0211204208
ref: 5
SCREW
0211204208
€ 1.00
6
0832121047
ref: 6
WASHER,LOCK 4M
0832121047
€ 2.00
7
3224013020
ref: 7
POINT ASSY,CONTACT
3224013020
€ 40.00
8
0912504001
ref: 8
SCREW(4X10)
0912504001
€ 4.50
9
0832221047
ref: 9
WASHER 4MM
0832221047
€ 2.00
10
0832121047
ref: 10
WASHER,LOCK 4M
0832121047
€ 2.00
11
3234122020
ref: 11
CONDENSER
3234122020
€ 24.50
12
0211205087
ref: 12
SCREW
0211205087
€ 2.00
13
0832121057
ref: 13
LOCK WASHER
0832121057
€ 2.00
14-1
3210217220
ref: 14-1
E15
FLYWHEEL
€ 0.00
14-2
3210217240
ref: 14-2
E43
ROTOR ASSEMBLY
€ 88.50
15-1
0925904001
ref: 15-1
PLUG
0925904001
€ 3.50
15-2
3274232021
ref: 15-2
E43
GROMMET,NEUTRAL LEAD WIRE
3274232021
€ 2.50
16
0914010003
ref: 16
NUT (10MM)
0914010003
€ 3.50
17
0832221108
ref: 17
WASHER
0832221108
€ 2.50
18
0832121107
ref: 18
WASHER,LOCK,10
0832121107
€ 2.00
19
0913905011
ref: 19
SCREW(5X14)
0913905011
€ 3.00
20
0834131039
ref: 20
KEY
0834131039
€ 2.00
