CARBURETOR

RF600R 1995 (S) USA (E03)

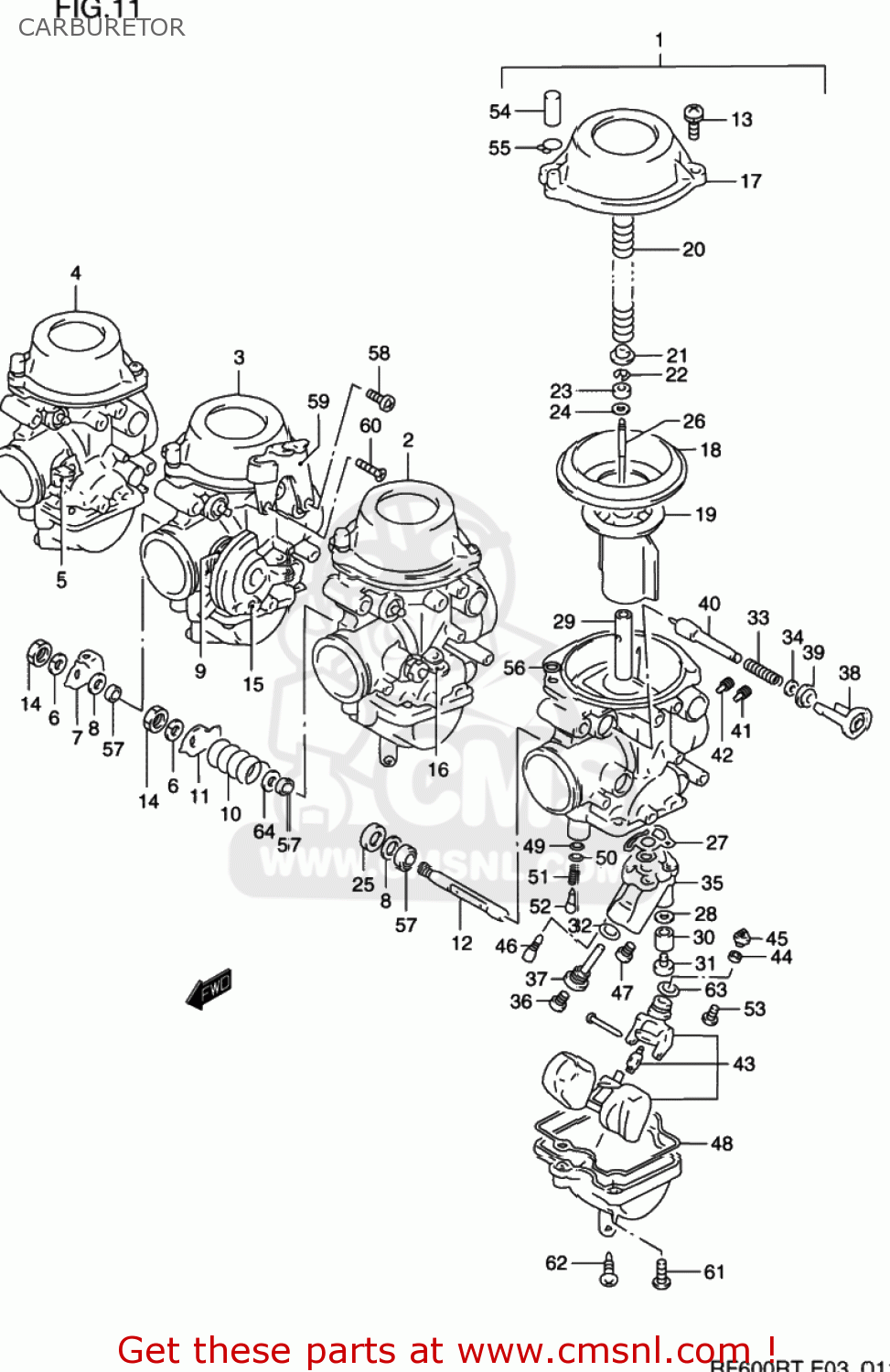

Carburetor diagram RF600R 1995 (S) USA (E03)

CARBURETOR RF600R 1995 (S) USA (E03)

CARBURETOR RF600R 1995 (S) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1320121E40
ref: 1-1

CARBURETOR ASSEMBLY,LEFT

€ 288.50

1-2

1320121EG0
ref: 1-2

CARBURETOR ASSEMBLY,LEFT

€ 338.50

1-3

1320121E50
ref: 1-3

CARBURETOR ASSEMBLY,LEFT

€ 288.50

1-4

1320121EH0
ref: 1-4

CARBURETOR ASSEMBLY,LEFT

€ 338.50

1-4

1320121EH0
ref: 1-4

CARBURETOR ASSEMBLY,LEFT

€ 338.50

2-1

1320221E40
ref: 2-1

CARBURETOR ASSEMBLY,MIDDLE,LEFT

€ 288.50

2-2

1320221EG0
ref: 2-2

CARBURETOR ASSEMBLY,MIDDLE,LEFT

€ 0.00

2-3

1320221E50
ref: 2-3

CARBURETOR ASSEMBLY,MIDDLE,LEFT

€ 288.50

2-4

1320221EH0
ref: 2-4

CARBURETOR ASSEMBLY,MIDDLE,LEFT

€ 338.50

2-4

1320221EH0
ref: 2-4

CARBURETOR ASSEMBLY,MIDDLE,LEFT

€ 338.50

3-1

1320321E40
ref: 3-1

CARBURETOR ASSEMBLY,MIDDLE,RIGHT

€ 346.50

3-2

1320321EG0
ref: 3-2

CARBURETOR ASSEMBLY,MIDDLE,RIGHT

€ 338.50

3-3

1320321E50
ref: 3-3

CARBURETOR ASSEMBLY,MIDDLE,RIGHT

€ 288.50

3-4

1320321EH0
ref: 3-4

CARBURETOR ASSEMBLY,MIDDLE,RIGHT

€ 338.50

3-4

1320321EH0
ref: 3-4

CARBURETOR ASSEMBLY,MIDDLE,RIGHT

€ 338.50

4-1

1320421E40
ref: 4-1

CARBURETOR ASSEMBLY,RIGHT

€ 288.50

4-2

1320421EG0
ref: 4-2

CARBURETOR ASSEMBLY,RIGHT

€ 338.50

4-3

1320421E50
ref: 4-3

CARBURETOR ASSEMBLY,RIGHT

€ 346.50

4-4

1320421EH0
ref: 4-4

CARBURETOR ASSEMBLY,RIGHT

€ 338.50

4-4

1320421EH0
ref: 4-4

CARBURETOR ASSEMBLY,RIGHT

€ 338.50

5

1355021E30
ref: 5

SHAFT,THROTTLE

€ 0.00

6-1

0832121087
ref: 6-1
08321-01087

WASHER,LOCK

€ 2.00

6-2

0832101087
ref: 6-2

WASHER,LOCK

€ 2.00

7

1355321E10
ref: 7

LEVER,THROTTLE

€ 0.00

8

1355747070
ref: 8

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

9

1357321E10
ref: 9

SPRING

€ 0.00

10

1357321E00
ref: 10

SPRING

€ 0.00

11

1355021E10
ref: 11

SHAFT,THROTTLE

€ 0.00

12

1355021E00
ref: 12

SHAFT,THROTTLE

€ 37.00

13

0211275163
ref: 13
02112-7516A

SCREW

€ 2.50

14

0831000083
ref: 14
08310-0008A

NUT

€ 1.50

15

1355021E20
ref: 15

SHAFT,THROTTLE

€ 76.00

16

1355321E00
ref: 16

LEVER,THROTTLE

€ 0.00

17-1

1350217E20
ref: 17-1

COVER,DIAPHRAGM

€ 60.00

17-2

1350233C00
ref: 17-2

COVER,DIAPHRAGM

€ 34.50

18-1

1350717C00
ref: 18-1
13507-17C01

DIAPHRAGM

€ 24.50

18-2

1350717C01
ref: 18-2

DIAPHRAGM

€ 24.50

19

1350118E00
ref: 19

VALVE,PISTON

€ 69.00

20

1341712D00
ref: 20

SPRING

€ 6.50

21

1338242A00
ref: 21

RING

€ 3.50

22

1339440D20
ref: 22

E RING

€ 4.50

23

1338747010
ref: 23

RING

€ 7.50

24

1338244030
ref: 24

WASHER

€ 3.50

25

1357432C00
ref: 25

RING

€ 0.00

26-1

1338321E10
ref: 26-1

NEEDLE JET (5E97-1)

€ 13.00

26-2

1338321E10
ref: 26-2

NEEDLE JET (5E97-1)

€ 13.00

26-3

1338321E30
ref: 26-3

NEEDLE JET

€ 0.00

26-3

1338321E30
ref: 26-3

NEEDLE JET

€ 0.00

27

1325133C00
ref: 27

O RING

€ 10.00

28

1333205A10
ref: 28

GASKET (NAS)

€ 3.50

29-1

0949400810
ref: 29-1

JET,NEEDLE(O-9)

€ 30.00

29-2

0949400854
ref: 29-2

JET,NEEDLE (O-9M)

€ 0.00

29-3

0949400814
ref: 29-3

JET,NEEDLE(O-8)

€ 0.00

29-4

0949400853
ref: 29-4

JET,NEEDLE (O-8M)

€ 22.50

29-4

0949400853
ref: 29-4

JET,NEEDLE (O-8M)

€ 22.50

30

1333121E40
ref: 30

RING

€ 4.50

31

1360206C20
ref: 31

SCREW

€ 4.00

32

1329433C00
ref: 32

O RING

€ 5.50

33

1341726D00
ref: 33

SPRING

€ 5.50

34

1343247090
ref: 34

WASHER

€ 2.50

35

1322021E00
ref: 35

JET BLOCK ASSEMBLY

€ 38.50

36-1

0949122025
ref: 36-1
09491-22014

JET

€ 16.50

36-2

0949122025
ref: 36-2
09491-22014

JET

€ 16.50

36-3

0949121020
ref: 36-3
09491-21019

JET,MAIN 107,5

€ 11.00

36-3

0949121020
ref: 36-3
09491-21019

JET,MAIN 107,5

€ 11.00

37-1

1338533C20
ref: 37-1

HOLDER,JET

€ 0.00

37-2

1338521E00
ref: 37-2

HOLDER,JET

€ 25.00

38

1341817C10
ref: 38

HOLDER,GUIDE

€ 14.00

39

1341817C00
ref: 39

CAP,STARTER

€ 5.00

40

1341105320
ref: 40

PLUNGER ASSY

€ 18.00

41-1

0949360004
ref: 41-1

JET,AIR(0.6)

€ 11.00

41-2

0949370009
ref: 41-2

JET,MAIN AIR(0.7)

€ 13.00

41-3

0949360004
ref: 41-3

JET,AIR(0.6)

€ 11.00

42-1

0949329002
ref: 42-1

JET,AIR

€ 9.50

42-2

0949327002
ref: 42-2

JET,AIR(1.35)

€ 15.50

43

1325021E00
ref: 43
13250-31E00

FLOAT/NEEDLE VALVE ASSEMBLY

€ 96.00

44

1333106C20
ref: 44

RING

€ 5.50

45

1337684110
ref: 45
13376-19F00

FILTER

€ 6.50

46-1

0949215017
ref: 46-1

JET,PILOT(15)

€ 19.50

46-2

0949210002
ref: 46-2

JET,PILOT(10)

€ 14.00

47

0949147001
ref: 47

JET,STARTER(47.5)

€ 16.50

48

1325833C00
ref: 48

SEAL

€ 14.50

49

1329529900
ref: 49

O RING,PILOT AIR SCREW

€ 4.00

50

1329129900
ref: 50

WASHER

€ 2.00

51

1326847070
ref: 51

SPRING

€ 5.00

52

1327947070
ref: 52

SCREW,PILOT

€ 11.50

53

1360205A10
ref: 53

SCREW

€ 4.00

54

1350817C00
ref: 54

CAP

€ 4.50

55

1367133600
ref: 55
13671-05A40

CLIP

€ 4.00

56

1325106C10
ref: 56

O RING

€ 5.00

57

1365151010
ref: 57

SEAL

€ 4.00

58

1360205148
ref: 58
13601-05148-XC0

SCREW

€ 3.50

59-1

1362721E00
ref: 59-1

BRACKET

€ 0.00

59-2

1362731E00
ref: 59-2

BRACKET

€ 11.50

60-1

1360305108
ref: 60-1
02122-0510A

SCREW

€ 1.00

60-2

0212205103
ref: 60-2
02122-0510A

SCREW

€ 1.00

61

0211205127
ref: 61

SCREW

€ 2.50

62

1324713A00
ref: 62
13247-02340

SCREW,DRAIN

€ 5.50

63

1337444080
ref: 63
13374-35C00

O-RING,NEEDLE VALVE

€ 6.00

64

1355707D00
ref: 64

RING

€ 5.50
