REAR MASTER CYLINDER
RF600R 1995 (S) USA (E03)

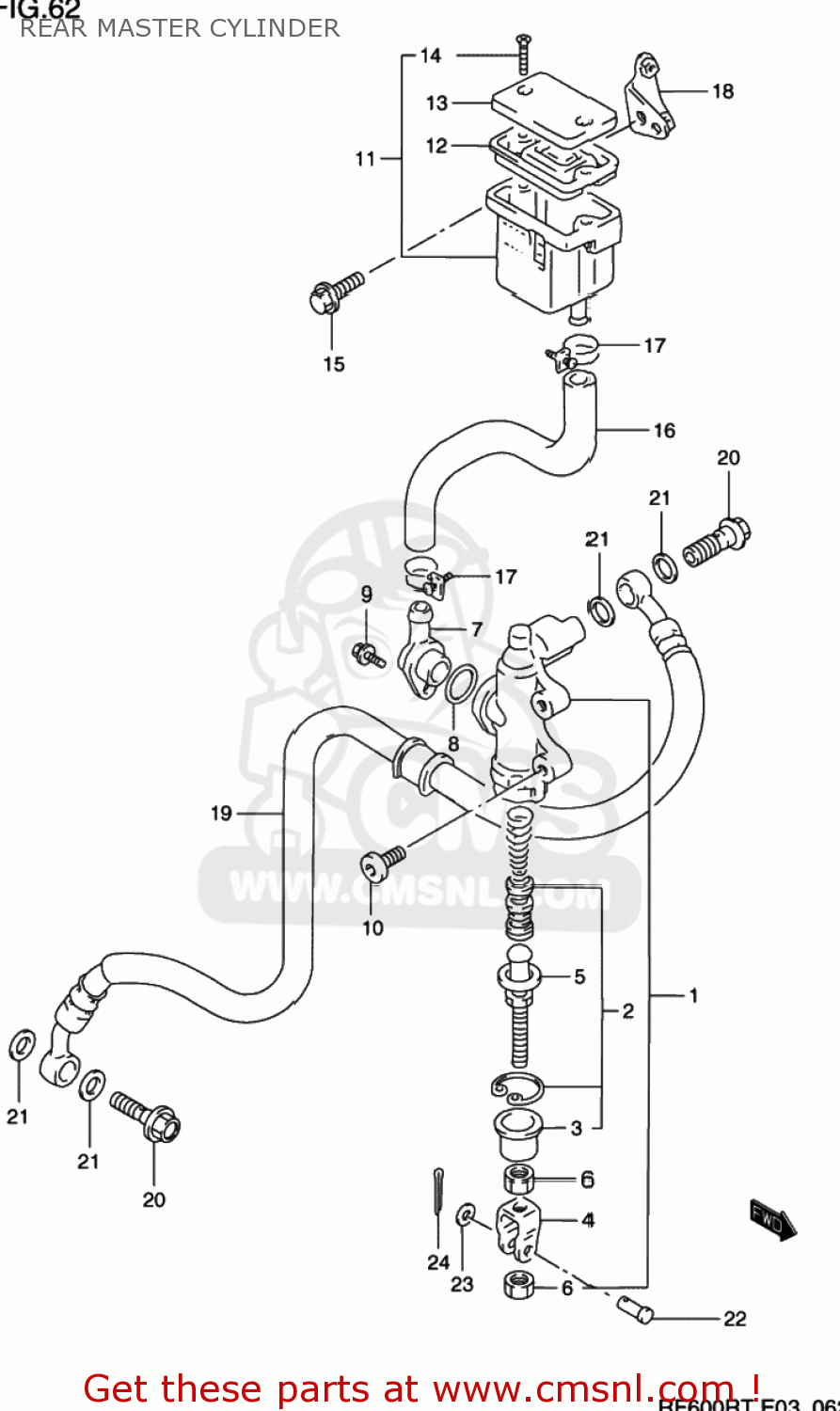

Rear master cylinder diagram RF600R 1995 (S) USA (E03)
REAR MASTER CYLINDER RF600R 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960017C01
ref: 1
CYLINDER ASSY,RR MASTER
€ 194.50
2
6960004820
ref: 2
PISTON/CUP SET
€ 31.00
3
6969100A00
ref: 3
BOOT
€ 3.50
4
6969227A30
ref: 4
YOKE
€ 12.50
5
6967048B00
ref: 5
ROD,PUSH
€ 20.50
6
6969305A00
ref: 6
NUT
€ 1.50
7
6967205A00
ref: 7
CONNECTOR
€ 4.50
8
6968634200
ref: 8
O RING
€ 3.50
9
0211274123
ref: 9
02112-7412A
SCREW
€ 2.50
10
0910608118
ref: 10
09106-08161
BOLT 8X20
€ 4.00
11
6974038B21
ref: 11
TANK ASSY,RESERVOIR
€ 85.50
12
5966704700
ref: 12
DIAPHRAGM
€ 8.00
13
5966905D00
ref: 13
CAP
€ 13.50
14
6968904A00
ref: 14
SCREW
€ 2.00
15
0155006123
ref: 15
01550-0612A
BOLT
€ 2.50
16
6973121E00
ref: 16
HOSE,RESERVOIR TANK
€ 15.00
17-1
0940016302
ref: 17-1
09400-16304
CLAMP
€ 4.50
17-2
0940113413
ref: 17-2
09401-13417
CLIP
€ 2.50
18
6975021E00
ref: 18
PLATE COMP,RESERVOIR T
€ 8.00
19-1
6948021E01
ref: 19-1
HOSE,REAR BRAKE
€ 95.50
19-2
6948031E00
ref: 19-2
HOSE,RR BRAKE
€ 90.00
20
0936010039
ref: 20
09360-10061
BOLT UNION
€ 6.50
21
0916110009
ref: 21
WASHER(10X15X1.5)
€ 2.00
22
0920006037
ref: 22
09200-06068
PIN
€ 5.00
23
0832201063
ref: 23
08322-0106B
WASHER
€ 2.00
24
0411120158
ref: 24
04111-2015A
PIN
€ 1.50
