CARBURETOR FITTINGS
RF600R 1995 (S) USA (E03)

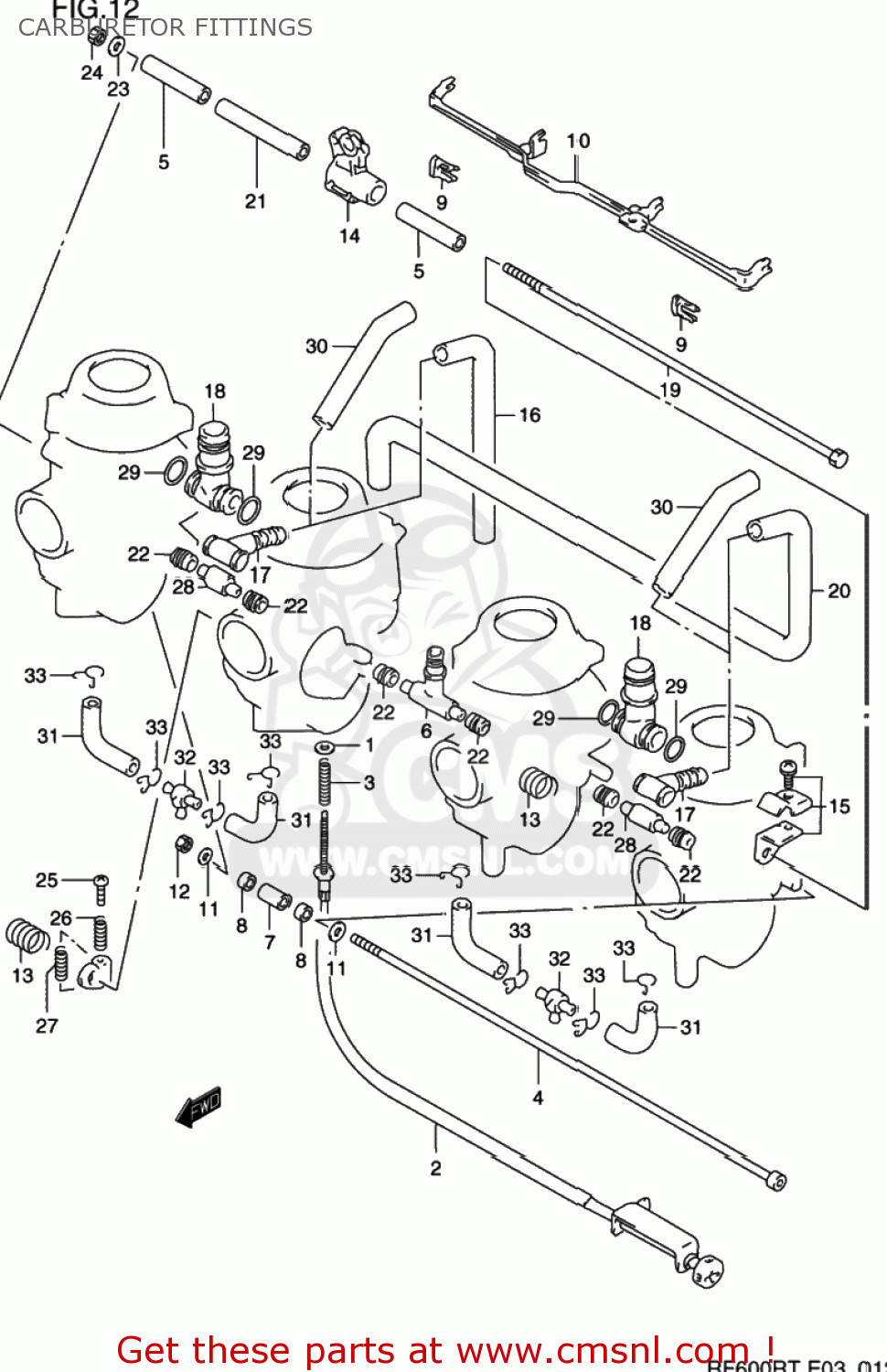

Carburetor fittings diagram RF600R 1995 (S) USA (E03)
CARBURETOR FITTINGS RF600R 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1342738300
ref: 1
WASHER
€ 1.50
2
1326721E00
ref: 2
SCREW,ADJUST
€ 62.50
3
1327133C00
ref: 3
SPRING
€ 4.50
4
1361221E00
ref: 4
BOLT
€ 0.00
5
1333121E00
ref: 5
RING
€ 8.50
6
1368521E00
ref: 6
NIPPLE
€ 13.50
7
1333121E20
ref: 7
RING
€ 4.50
8
1333121E30
ref: 8
RING
€ 3.50
9
1343917C00
ref: 9
HOLDER
€ 12.00
10
1341331E00
ref: 10
LEVER,STARTER
€ 37.00
11-1
1360600A10
ref: 11-1
08322-0105A
WASHER
€ 2.00
11-2
0832201053
ref: 11-2
08322-0105A
WASHER
€ 2.50
12-1
1360733C00
ref: 12-1
NUT
€ 2.00
12-2
0831000053
ref: 12-2
08310-0005A
NUT
€ 2.50
13
1357306C10
ref: 13
SPRING
€ 7.00
14
1341306C10
ref: 14
13427-06C00
LEVER
€ 14.50
15
1362433C00
ref: 15
BRACKET ASSY
€ 0.00
16
1368321E10
ref: 16
HOSE
€ 27.50
17
1368334C00
ref: 17
3 WAY
€ 10.50
18
1368533C00
ref: 18
NIPPLE
€ 13.00
19
1361221E10
ref: 19
BOLT
€ 12.00
20
1368321E00
ref: 20
HOSE
€ 31.50
21
1333121E10
ref: 21
RING
€ 9.50
22
1367344B00
ref: 22
SEAL
€ 6.00
23-1
1360606C00
ref: 23-1
08322-0106B
WASHER
€ 2.00
23-2
0832201063
ref: 23-2
08322-0106B
WASHER
€ 2.00
24-1
1360706C00
ref: 24-1
08310-0006A
NUT
€ 2.00
24-2
0831000063
ref: 24-2
08310-0006A
NUT 6MM
€ 2.00
25
1326744B00
ref: 25
SCREW
€ 3.50
26
1327144B00
ref: 26
SPRING
€ 4.00
27
1326896110
ref: 27
13268-96111
SPRING,THROTTLE SCREW
€ 4.50
28
1368521E10
ref: 28
PIPE
€ 7.00
29-1
1350933C00
ref: 29-1
09280-10016
O-RING
€ 3.50
29-2
0928010005
ref: 29-2
09280-10016
SEAL (D:1.9 ID:9.8)
€ 3.50
30
1368321E30
ref: 30
HOSE
€ 15.00
31-1
1368448B00
ref: 31-1
13684-48B10
HOSE
€ 19.50
31-2
1368448B10
ref: 31-2
HOSE
€ 19.50
31-2
1368448B10
ref: 31-2
HOSE
€ 19.50
32
1368548B00
ref: 32
NIPPLE
€ 9.00
33
0940110410
ref: 33
09401-10401
CLIP
€ 1.50
