CYLINDER HEAD COVER

RF600RU 1995 (S) (E22)

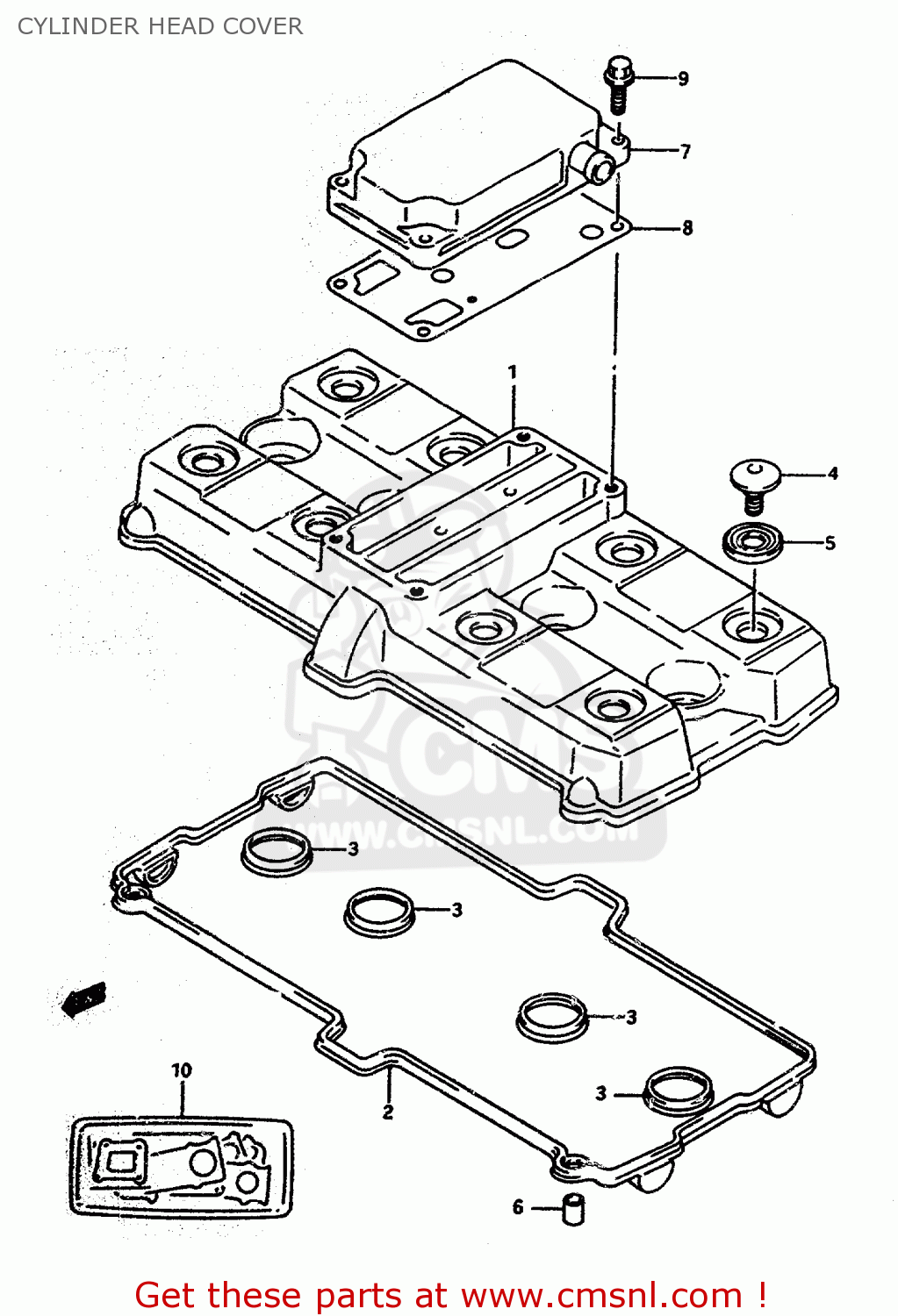

Cylinder head cover diagram RF600RU 1995 (S) (E22)

CYLINDER HEAD COVER RF600RU 1995 (S) (E22)

CYLINDER HEAD COVER RF600RU 1995 (S) (E22)

prices are in EUR

ref

part #

description

quantity

1-1

1117121E00
ref: 1-1
MODEL P/R

COVER,CYLINDER HEAD

€ 274.00

1-2

1117131E00
ref: 1-2
MODEL S/T/V

COVER,CYLINDER HEAD

€ 411.00

2

1117321E00
ref: 2

GASKET,CYL HEAD COVER NO.1

€ 31.50

3

1117817E00
ref: 3

GASKET,CYL HEAD COVER NO.2

€ 6.00

4

0910607009
ref: 4

BOLT(7X17.5)

€ 4.50

5

0916111008
ref: 5

WASHER(10.6X25.5X2.3)

€ 4.50

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7-1

1117626D00
ref: 7-1
MODEL P/R

COVER,BREATHER

€ 35.50

7-2

1117631E00
ref: 7-2
MODEL S/T/V

COVER,BREATHER

€ 43.50

8

1117717E00
ref: 8

GASKET,BREATHER COVER

€ 12.50

9-1

0155006257
ref: 9-1
MODEL P

BOLT

€ 2.50

9-2

0155006253
ref: 9-2
MODEL R/S/T/V

BOLT

€ 2.50

10-1

1140117812
ref: 10-1
MODEL P/R/S

GASKET SET (NAS)

€ 298.00

10-2

1140117813
ref: 10-2
MODEL T

GASKET SET (NAS)

€ 298.00

10-3

1140117814
ref: 10-3
MODEL V

GASKET SET

€ 298.00
