WIRING HARNESS (MODEL S/T/V)
RF600RU 1995 (S) (E22)

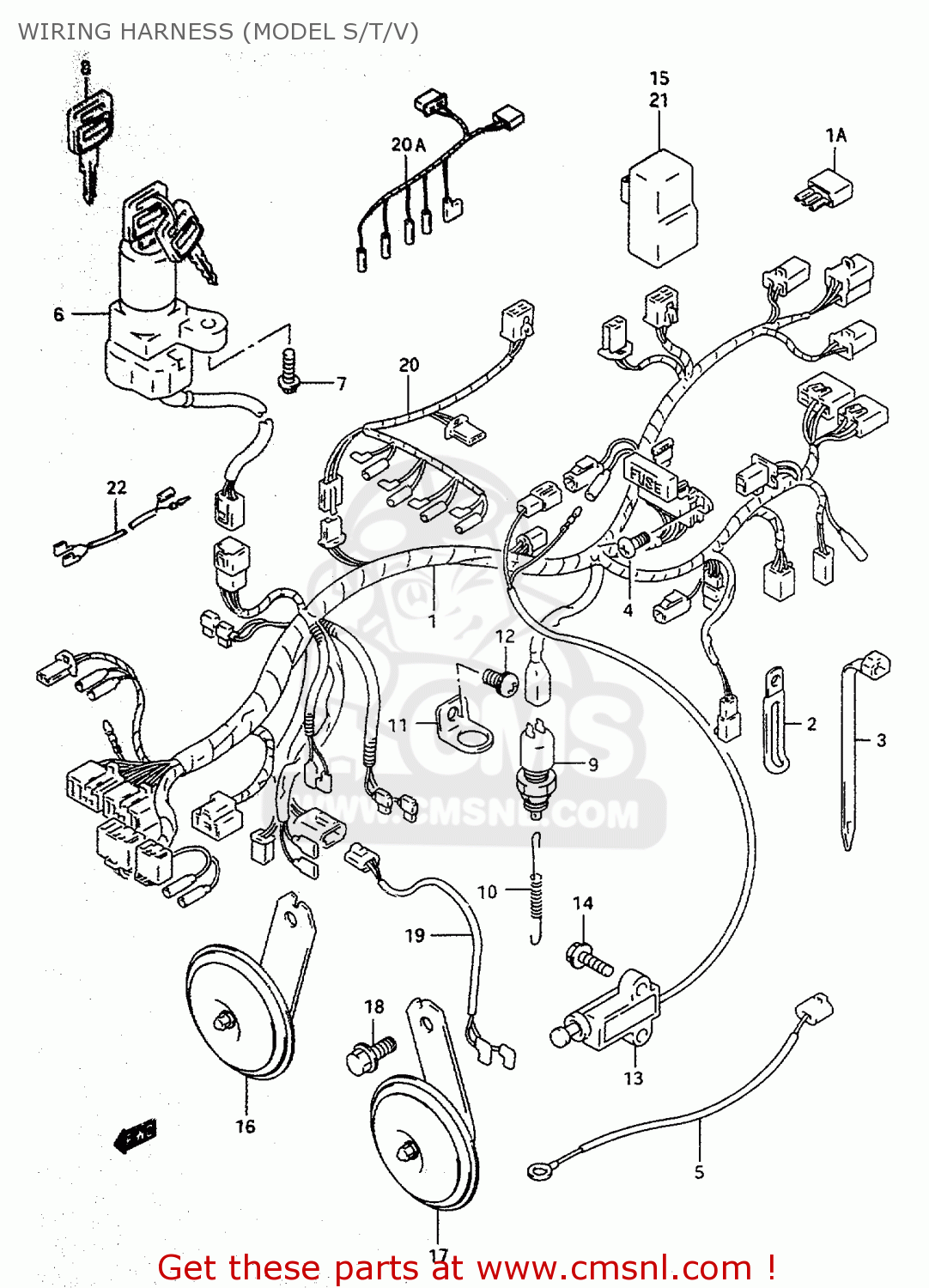

Wiring harness (model s/t/v) diagram RF600RU 1995 (S) (E22)
WIRING HARNESS (MODEL S/T/V) RF600RU 1995 (S) (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3661021E11
ref: 1
HARNESS,WIRING
€ 511.50
1A
3661138A00
ref: 1A
DIODE(STANLEY DE8804)
€ 13.00
2
0940406429
ref: 2
CLAMP(L:45)
€ 2.50
3-1
0940714403
ref: 3-1
CLAMP(L:125)
€ 2.50
3-2
0940711401
ref: 3-2
CLAMP(L:95)
€ 2.50
3-3
0940718403
ref: 3-3
CLAMP L:165
€ 2.50
4
0214206123
ref: 4
SCREW 6X12
€ 2.00
5
3685117E10
ref: 5
WIRE,OIL PRESSURE SWITCH LEAD
€ 13.50
6-1
3710026D02
ref: 6-1
LOCK ASSEMBLY,STEERING
€ 134.00
6-2
3710026D11
ref: 6-2
E24
LOCK ASSY,STEERING
€ 103.50
7
0913906026
ref: 7
SCREW(6X18)
€ 2.50
8
3714626D10
ref: 8
OPT
KEY,BLANK
€ 41.50
9
3774024A00
ref: 9
SWITCH ASSY,STOP LAMP
€ 20.50
10
0944306012
ref: 10
SPRING
€ 3.00
11
4325121E00
ref: 11
BRACKET,STOP LAMP SWITCH
€ 3.50
12
0214206083
ref: 12
SCREW
€ 1.50
13
3784044X50
ref: 13
SWITCH ASSY,SIDE STAND
€ 75.50
14
0155006203
ref: 14
BOLT
€ 2.50
15
3874024X50
ref: 15
RELAY ASSY
€ 37.50
16-1
3850221E00
ref: 16-1
MODEL S
HORN ASSEMBLY,LOW PITCH
€ 63.50
16-2
3850221E01
ref: 16-2
MODEL T/V
HORN ASSEMBLY,LOW PITCH
€ 63.50
17
3850121E00
ref: 17
E18,E25,E34,E37
HORN ASSY,HIGH
€ 54.00
18
0155008163
ref: 18
BOLT
€ 3.00
19
3685221E10
ref: 19
E18,E25,E34,E37
WIRE,HORN LEAD
€ 14.00
20
3685921E00
ref: 20
MODEL S/T
WIRE,CARBURETOR HEATER LEAD
€ 51.50
20A
3685621E00
ref: 20A
MODEL V
WIRE,CARB HEATER LEAD
€ 79.50
21
3874024X50
ref: 21
RELAY ASSY
€ 37.50
22
3685219D00
ref: 22
WIRE,CLUTCH LEAD
€ 12.00
