CYLINDER HEAD
RF600RU 1995 (S) (E22)

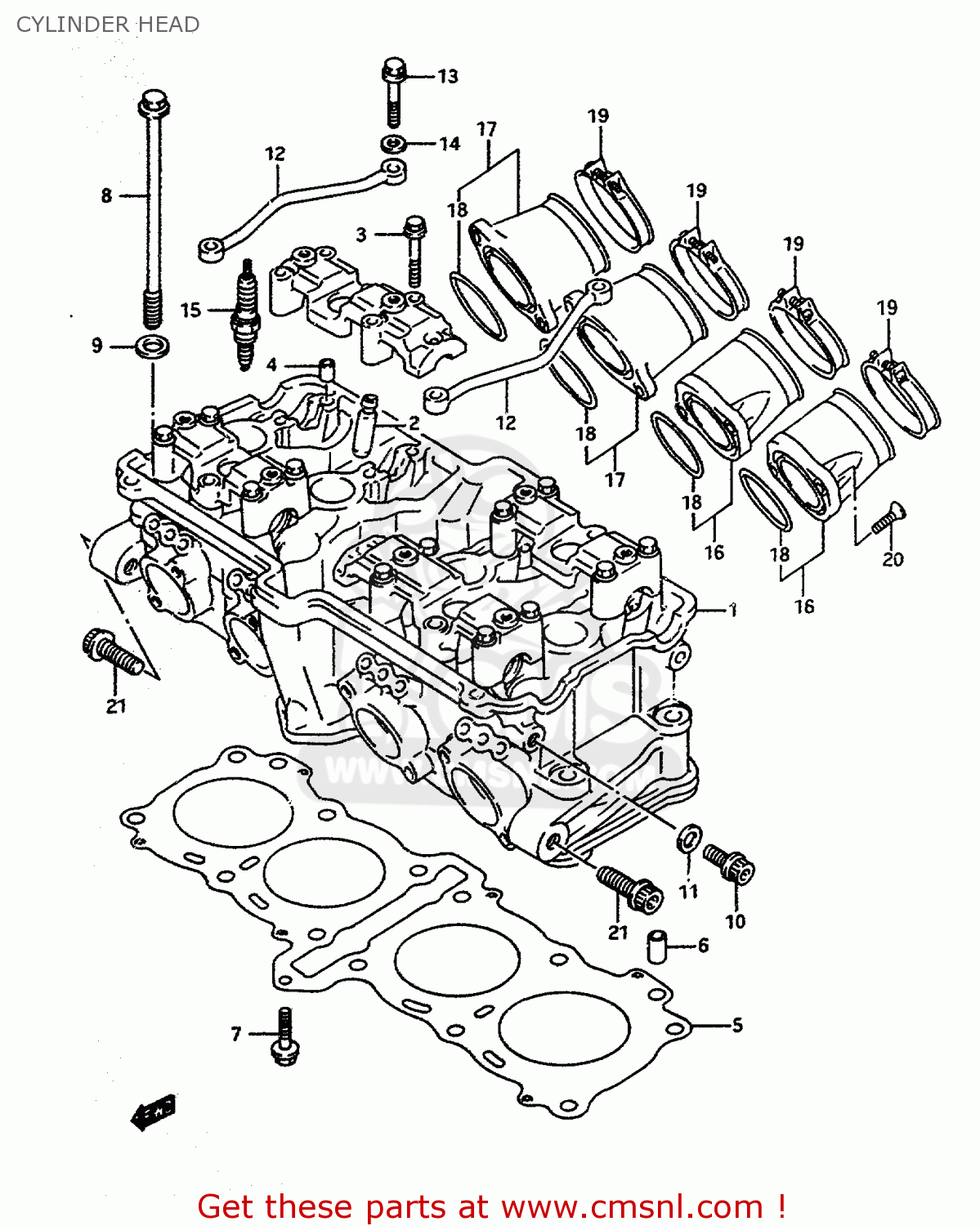

Cylinder head diagram RF600RU 1995 (S) (E22)
CYLINDER HEAD RF600RU 1995 (S) (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110021E00
ref: 1-1
HEAD ASSEMBLY,CYLINDER
€ 1,312.00
1-2
1110021E10
ref: 1-2
E18,E39
HEAD ASSEMBLY,CYLINDER
€ 1,593.00
2
1111517E70
ref: 2
GUIDE,VALVE
€ 23.00
3-1
0910306013
ref: 3-1
MODEL P
BOLT
€ 2.50
3-2
0910306165
ref: 3-2
MODEL R/S/T/V
BOLT(6X45)
€ 2.50
4
0920608001
ref: 4
PIN(6.2X8X11)
€ 2.00
5
1114118E01
ref: 5
GASKET,CYLINDER HEAD
€ 71.00
6
0421111189
ref: 6
PIN
€ 2.00
7-1
0151706305
ref: 7-1
MODEL P
BOLT 6X30
€ 2.50
7-2
0155006303
ref: 7-2
MODEL R/S/T/V
BOLT
€ 2.50
8
0910310272
ref: 8
BOLT(10X160)
€ 14.00
9
0916010082
ref: 9
WASHER(10.5X19X2)
€ 2.00
10-1
0712008165
ref: 10-1
MODEL P
BOLT
€ 3.00
10-2
0712008163
ref: 10-2
MODEL R/S/T/V
BOLT
€ 3.00
11
0916808015
ref: 11
GASKET(8.2X14X1).6 (NAS)
€ 2.50
12
1113117E00
ref: 12
PIPE,CYLINDER HEAD OIL
€ 41.00
13
0910306026
ref: 13
BOLT(6X39)
€ 2.00
14-1
0832221064
ref: 14-1
MODEL P
WASHER
€ 2.00
14-2
0832201063
ref: 14-2
MODEL R/S/T/V
WASHER
€ 2.00
15-1
0948200458
ref: 15-1
PLUG,SPARK(NGK CR9E)
€ 8.50
15-2
0948200459
ref: 15-2
PLUG,SPARK(U27ESR-N)
€ 8.50
15-3
0948200456
ref: 15-3
OPT
PLUG,SPARK(CR8E)
€ 7.00
15-4
0948200460
ref: 15-4
OPT
PLUG,SPARK(CR10E)
€ 8.50
15-5
0948200457
ref: 15-5
OPT
PLUG,SPARK(U24ESR-N)
€ 7.00
15-6
0948200461
ref: 15-6
OPT
PLUG,SPARK(U31ESR-N)
€ 8.50
16-1
1310121E00
ref: 16-1
PIPE ASSY,INTAKE NO.1
€ 43.00
16-2
1310121E11
ref: 16-2
RF600RUS/RUT/RUV E22
PIPE,INTAKE NO.2
€ 0.00
17-1
1310221E00
ref: 17-1
PIPE ASSY,INTAKE NO.2
€ 48.50
17-2
1310221E11
ref: 17-2
RF600RUS/RUT/RUV E22
PIPE ASSY,INTAKE NO.2
€ 0.00
18
0928042003
ref: 18
O RING(D:2.4,ID:41.7)
€ 8.50
19
0940252208
ref: 19
CLAMP
€ 5.50
20-1
0912606014
ref: 20-1
MODEL P/R
SCREW(6X16)
€ 2.00
20-2
0912006010
ref: 20-2
MODEL S/T/V
SCREW
€ 3.00
21-1
0712010308
ref: 21-1
MODEL P
BOLT, FRAME JOINT
€ 4.00
21-2
0712010303
ref: 21-2
MODEL R/S/T/V
BOLT
€ 4.00
