CLUTCH (MODEL R)
RF900R 1997 (V) USA (E03)

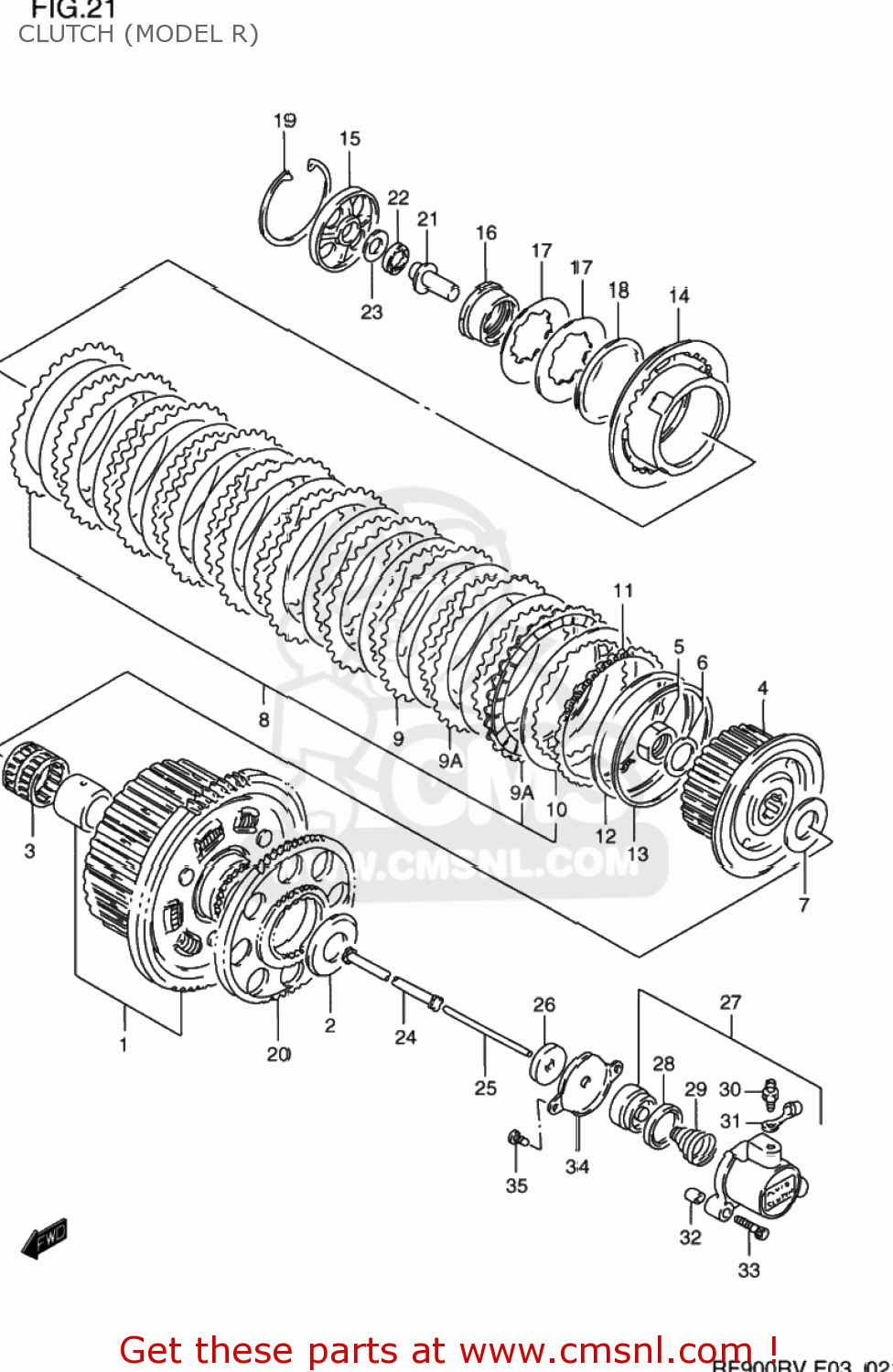

Clutch (model r) diagram RF900R 1997 (V) USA (E03)
CLUTCH (MODEL R) RF900R 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120040831
ref: 1
GEAR ASSEMBLY,PRIMARY DRIVE
€ 375.50
2
0916025067
ref: 2
WASHER(25X54X2.5)
€ 9.00
3
0926335017
ref: 3
BEARING(35X40X35.8)
€ 36.50
4
2141046E00
ref: 4
HUB,CLUTCH SLEEVE
€ 173.00
5
0915924008
ref: 5
NUT
€ 10.50
6
0916424006
ref: 6
WASHER
€ 4.00
7
0916025056
ref: 7
WASHER(25X50X2.5)
€ 9.50
8
2140040C01
ref: 8
PLATE ASSY,CLUTCH
€ 222.50
9
2144148B00
ref: 9
PLATE,CLUTCH DRIVE NO.1 (NAS)
€ 18.00
9A
2144148B10
ref: 9A
PLATE,CLUTCH DRIVE NO.2 (NAS)
€ 15.50
10
2145148B00
ref: 10
PLATE,CLUTCH DRIVEN (NAS)
€ 10.50
11
2144246E00
ref: 11
PLATE,CLUTCH DRIVE NO.2
€ 17.50
12
0916400007
ref: 12
WASHER
€ 13.00
13
2147140C01
ref: 13
SEAT,CL SLEEVE HUB WAVE WASHER
€ 15.00
14
2146240C02
ref: 14
DISC,CLUTCH PRESSURE
€ 134.50
15
2146340C01
ref: 15
LIFTER,CLUTCH PRESSURE DISC
€ 33.00
16
2161140C01
ref: 16
HOLDER,CLUTCH SPRING
€ 162.00
17
0916447001
ref: 17
WASHER
€ 9.00
18
2162340C00
ref: 18
SEAT,CLUTCH SPRING
€ 9.00
19
0938184002
ref: 19
09381-84003
CIRCLIP
€ 10.50
20
2272121E01
ref: 20
22721-21E02
GEAR,GENERATOR DRIVE
€ 192.50
20
2272121E01
ref: 20
22721-21E02
GEAR,GENERATOR DRIVE
€ 192.50
21
2312107A00
ref: 21
23121-31E00
PIECE,CLUTCH PUSH
€ 18.50
22
0926315003
ref: 22
BEARING(15X28X2)
€ 7.00
23
0916015045
ref: 23
WASHER(15.5X28X1)
€ 4.00
24
2311027A00
ref: 24
ROD,CLUTCH
€ 17.00
25
2311124A01
ref: 25
ROD,CLUTCH PUSH,L
€ 15.00
26
0928506015
ref: 26
SEAL,OIL(6X34X5.5)
€ 8.50
27
2316006B02
ref: 27
CYLINDER,CLUTCH RELEASE
€ 122.50
28
2316306B00
ref: 28
CUP
€ 5.50
29
2316405A00
ref: 29
SPRING,CLUTCH CYLINDER
€ 3.50
30
5912101A00
ref: 30
BLEEDER
€ 8.50
31
5912201A00
ref: 31
CAP,BLEEDER
€ 4.50
32
0421109129
ref: 32
PIN
€ 2.00
33
0713006253
ref: 33
07130-0625B
BOLT,CL.COVER
€ 3.00
34
2311746E00
ref: 34
COVER,CLUTCH RELEASE CYLINDER
€ 6.50
35
0211206103
ref: 35
02112-0610B
SCREW
€ 1.50
