REAR CALIPER (MODEL R/S)

RF900R 1997 (V) USA (E03)

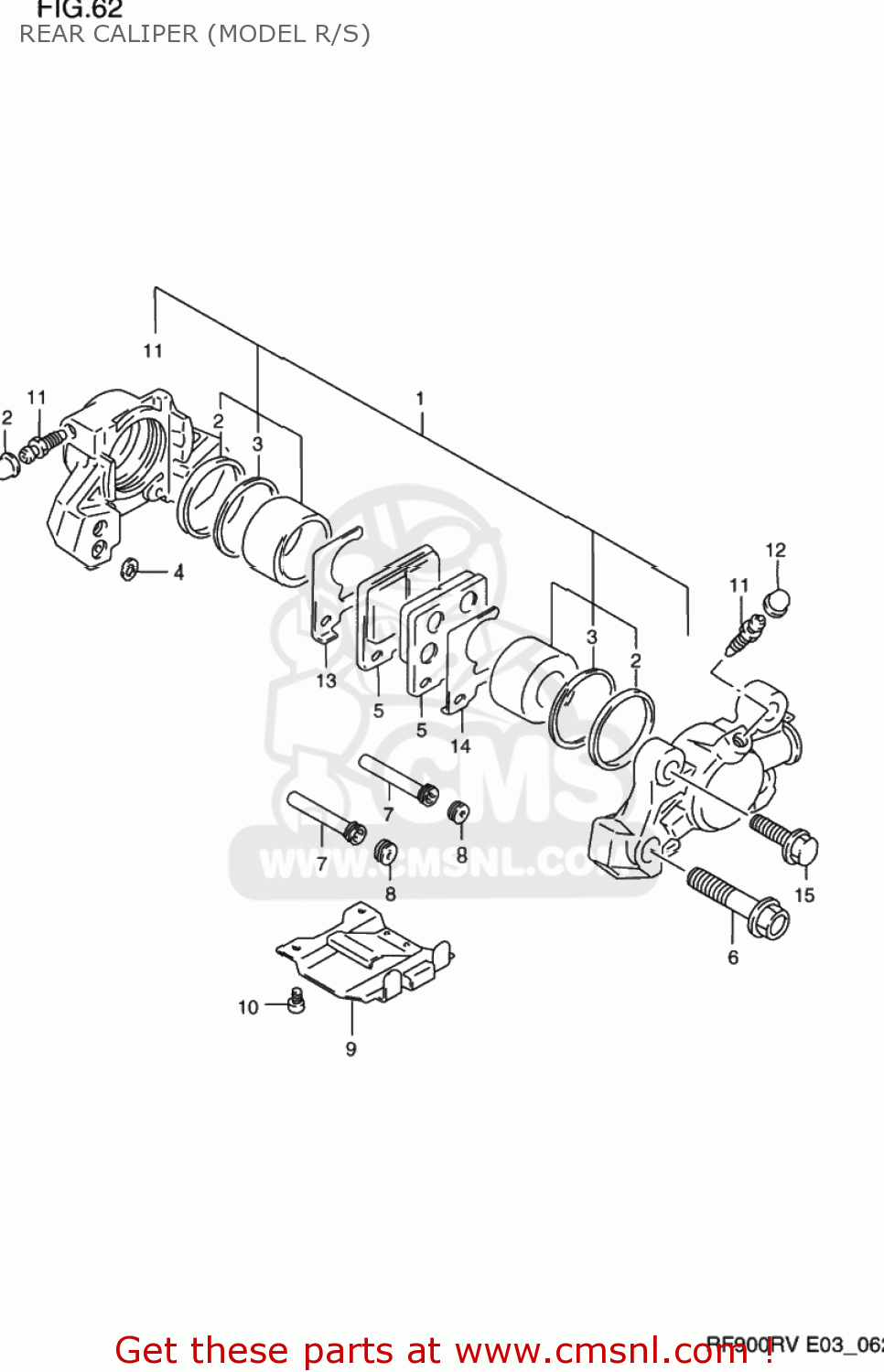

Rear caliper (model r/s) diagram RF900R 1997 (V) USA (E03)

REAR CALIPER (MODEL R/S) RF900R 1997 (V) USA (E03)

REAR CALIPER (MODEL R/S) RF900R 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity



6910031E00
ref:

CALIPER ASSEMBLY,REAR

€ 447.00

1

6910032810
ref: 1
69100-05851

PISTON SET

€ 122.50

2

5910718410
ref: 2
69107-05CF0

SEAL,PISTON

€ 17.00

3

6910832B00
ref: 3

SEAL,WIPER

€ 26.50

4

6910734200
ref: 4

SEAL,JOINT

€ 12.00

5

6913031E00
ref: 5
69100-31830

PAD,BRAKE

€ 43.00

6

5914517C00
ref: 6

BOLT

€ 7.00

7

6914131E00
ref: 7

PIN,PAD

€ 29.50

8

6914631E00
ref: 8

PLUG,PAD PIN

€ 14.00

9

6915131E00
ref: 9

COVER

€ 22.00

10

5915322D00
ref: 10

SCREW

€ 4.50

11

5912118410
ref: 11

BLEEDER

€ 8.00

12

5912218410
ref: 12
55156-66310

CAP,BREATHER

€ 6.00

13

6913331E00
ref: 13

SHIM,PAD,INNER

€ 10.00

14

6913431E00
ref: 14

SHIM,PAD,OUTER

€ 10.50

15

0155008303
ref: 15
01550-0830A

BOLT

€ 3.00
