Buy Suzuki RF Parts Online


SECOND AIR (CALIFORNIA ONLY)

RF900R 1997 (V) USA (E03)

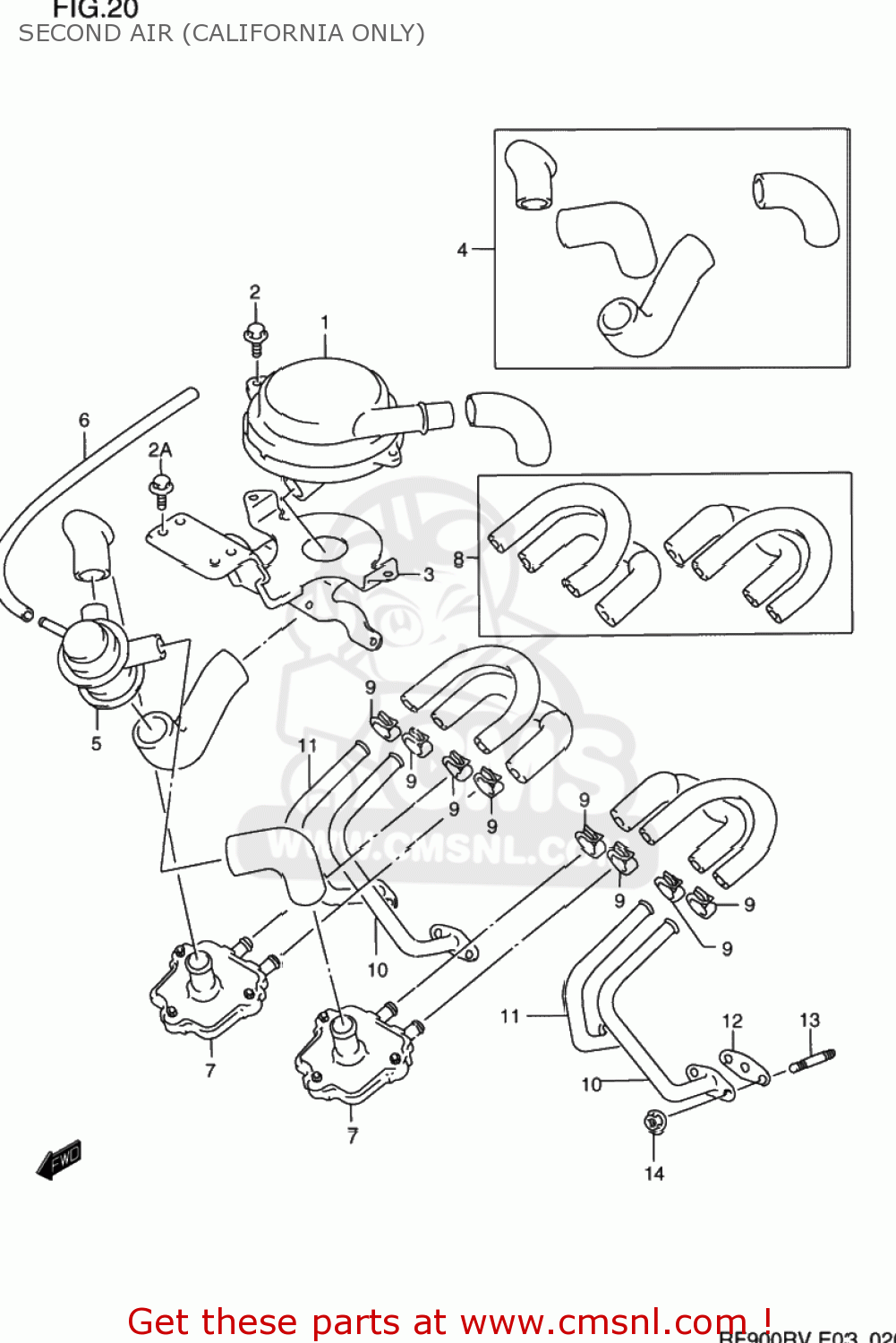

Second air (california only) diagram RF900R 1997 (V) USA (E03)

SECOND AIR (CALIFORNIA ONLY) RF900R 1997 (V) USA (E03)
SECOND AIR (CALIFORNIA ONLY) RF900R 1997 (V) USA (E03)
SECOND AIR (CALIFORNIA ONLY) RF900R 1997 (V) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1870026D01
ref: 1-1
18700-17C03
CLEANER ASSEMBLY,SECOND AIR
€ 38.00
1-2
1870017C03
ref: 1-2
CLEANER ASSEMBLY,SECOND AIR
€ 38.00
2
0155006123
ref: 2
01550-0612A
BOLT
0155006123
€ 2.50
2A
0154706123
ref: 2A
01547-0612B
BOLT
0154706123
€ 2.00
3
1875021E00
ref: 3
BRACKET COMP,SECOND AIR
€ 0.00
4
1842017810
ref: 4
HOSE SET,2ND AIR NO.2
€ 0.00
5
1851046E00
ref: 5
VALVE ASSEMBLY,SECOND AIR SWITCH
€ 0.00
6-1
0935445853600
ref: 6-1
09355-45855-600
HOSE (4.5X8.5X600)
€ 14.00
6-1
0935445853600
ref: 6-1
09355-45855-600
HOSE (4.5X8.5X600)
€ 14.00
6-2
0935545855600
ref: 6-2
HOSE(4.5X8.5X600)
0935545855600
€ 14.00
6-2
0935545855600
ref: 6-2
HOSE(4.5X8.5X600)
0935545855600
€ 14.00
7
1845048B00
ref: 7
VALVE ASSY,2ND AIR REED
1845048B00
€ 125.50
8
1841021810
ref: 8
HOSE SET,2ND AIR NO.1
€ 0.00
9
0940113413
ref: 9
09401-13417
CLIP
€ 2.50
10
1841021E00
ref: 10
PIPE COMP,SECOND AIR NO.1
€ 0.00
11
1842021E00
ref: 11
PIPE COMP,SECOND AIR NO.2
€ 0.00
12
1844145C00
ref: 12
18441-45C01
GASKET,SECOND AIR PIPE (N (NAS)
1844145C00
€ 6.00
13
0142106163
ref: 13
01421-0616A
STUD BOLT
0142106163
€ 2.00
14
0831610063
ref: 14
08316-1006B
NUT
0831610063
€ 2.50
