COWLING FITTING SET

RG125F 1993 (P) (E01 E15 E17 E18 E34)

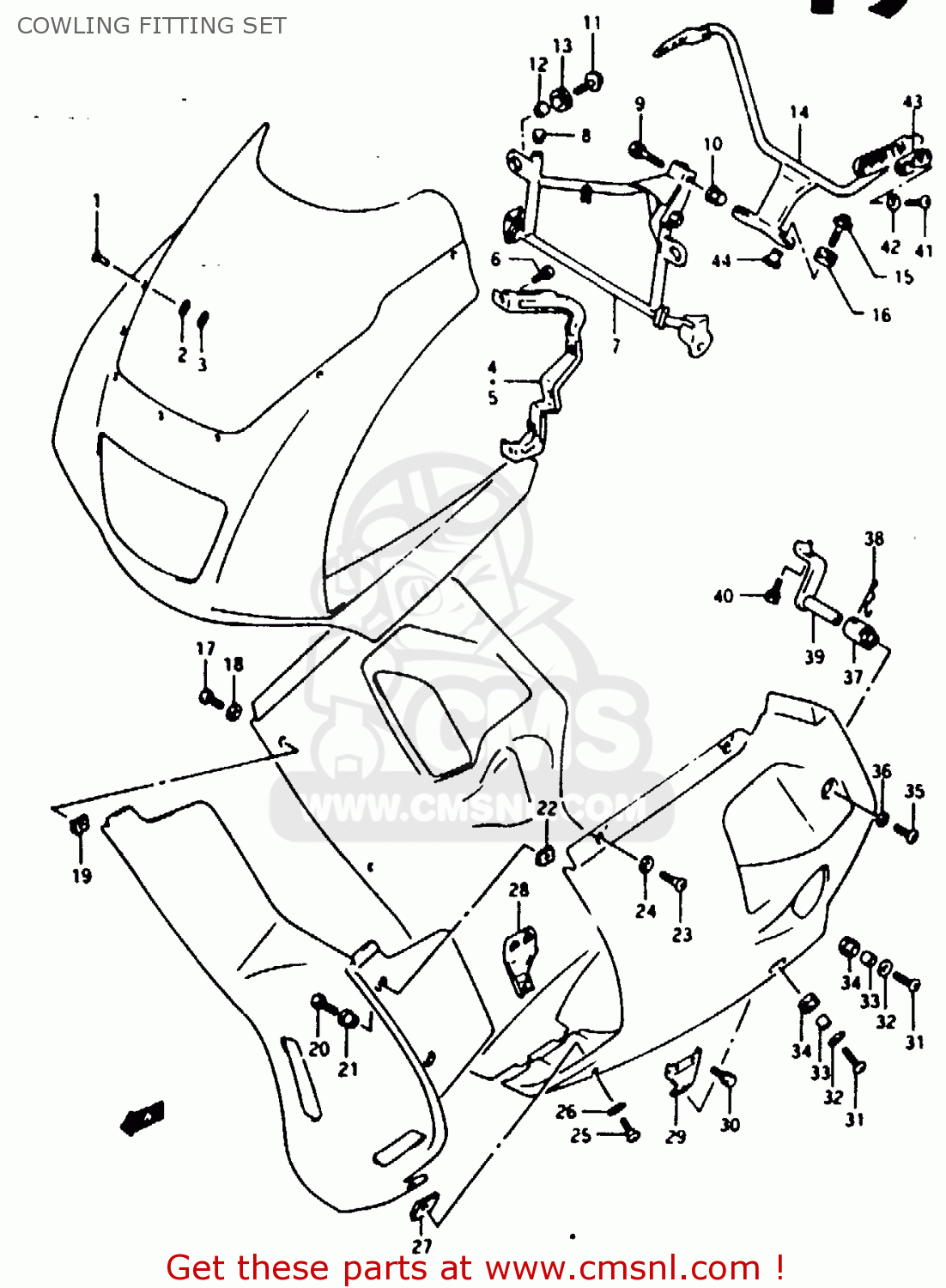

Cowling fitting set diagram RG125F 1993 (P) (E01 E15 E17 E18 E34)

COWLING FITTING SET RG125F 1993 (P) (E01 E15 E17 E18 E34)
COWLING FITTING SET RG125F 1993 (P) (E01 E15 E17 E18 E34)
COWLING FITTING SET RG125F 1993 (P) (E01 E15 E17 E18 E34)
prices are in EUR
ref
part #
description
quantity
1
9461622D00
ref: 1
PIN,WINDSCREEN
9461622D00
€ 2.50
2
0932004007
ref: 2
CUSHION
0932004007
€ 3.00
3
0914804032
ref: 3
NUT
0914804032
€ 2.50
4
9441822D00
ref: 4
BRACKET,HEADLAMP FIT,R
9441822D00
€ 26.00
5
9441922D00
ref: 5
BRACKET,HEADLAMP FIT,L
9441922D00
€ 22.50
6-1
0354105165
ref: 6-1
MODEL N/P
SCREW
€ 1.50
6-2
0354105163
ref: 6-2
MODEL R
SCREW
0354105163
€ 1.50
7
9451019D00
ref: 7
BRACE,COWLING
€ 137.50
8
0925010012
ref: 8
CAP(OD:14)
0925010012
€ 1.50
9-1
0113708355
ref: 9-1
MODEL N/P
BOLT
€ 2.00
9-2
0157008353
ref: 9-2
MODEL R
BOLT
0157008353
€ 2.00
10-1
0831321085
ref: 10-1
MODEL N/P
NUT ,8MM
€ 2.50
10-2
0831320083
ref: 10-2
MODEL R
NUT
€ 2.50
11
0911606143
ref: 11
BOLT 6X20
0911606143
€ 2.00
12
0918006114
ref: 12
SPACER (6.1X9X10)
0918006114
€ 3.00
13
0932008047
ref: 13
CUSHION
0932008047
€ 4.00
14
9452019D00
ref: 14
BRACE,RR VIEW MIRRORR
€ 87.00
15
0911606159
ref: 15
BOLT
€ 2.00
16
0932009009
ref: 16
CUSHION
0932009009
€ 5.00
17
0913905043
ref: 17
SCREW(5X16)
0913905043
€ 5.00
18
0916107009
ref: 18
WASHER(7X13X0.6)
0916107009
€ 3.00
19
9448412C11
ref: 19
NUT,RH & CTR UNDER COWLING
9448412C11
€ 6.50
20-1
0324205165
ref: 20-1
MODEL N/P
SCREW
€ 1.50
20-2
0324105163
ref: 20-2
MODEL R
SCREW
0324105163
€ 1.50
21
0916105017
ref: 21
WASHER(5.2X14X1.5)
0916105017
€ 3.00
22
0914805013
ref: 22
NUT
0914805013
€ 1.50
23
0913905044
ref: 23
SCREW(5X16)
0913905044
€ 5.00
24
0916107009
ref: 24
WASHER(7X13X0.6)
0916107009
€ 3.00
25
0913905043
ref: 25
SCREW(5X16)
0913905043
€ 5.00
26
0916107009
ref: 26
WASHER(7X13X0.6)
0916107009
€ 3.00
27
9448412C11
ref: 27
NUT,RH & CTR UNDER COWLING
9448412C11
€ 6.50
28
9474019D00
ref: 28
BRACKET, LOWER RH
9474019D00
€ 10.50
29
9475019D00
ref: 29
BRACKET, LOWER LH
9475019D00
€ 10.00
30-1
0113706167
ref: 30-1
MODEL N/P
BOLT
€ 2.50
30-2
0157006163
ref: 30-2
MODEL R
BOLT
0157006163
€ 2.50
31
0913906053
ref: 31
SCREW(6X18)
0913906053
€ 4.50
32
0916006056
ref: 32
WASHER(6.5X18X1)
0916006056
€ 2.00
33
0918006114
ref: 33
SPACER (6.1X9X10)
0918006114
€ 3.00
34
0932009016
ref: 34
CUSHION
0932009016
€ 2.50
35
0913906053
ref: 35
SCREW(6X18)
0913906053
€ 4.50
36
0916006053
ref: 36
WASHER
0916006053
€ 2.00
37
9452012C00
ref: 37
PLUG,UNDER COWL FTG,CTR
9452012C00
€ 9.00
38
9452312C00
ref: 38
PIN,UNDER COWLING FITTING PIPE
9452312C00
€ 2.50
39
9454019D00
ref: 39
BRACKET,COWLING FITTING CTR
9454019D00
€ 19.50
40-1
0113706167
ref: 40-1
MODEL N/P
BOLT
€ 2.50
40-2
0157006163
ref: 40-2
MODEL R
BOLT
0157006163
€ 2.50
41
0913606004
ref: 41
SCREW(6X12)
0913606004
€ 2.00
42
0916106023
ref: 42
WASHER(6.2X19X1.5)
0916106023
€ 3.50
43
9457622D00
ref: 43
CUSHION,RR VIEW MIRRORR
9457622D00
€ 6.00
44
0916906062
ref: 44
WASHER
0916906062
€ 3.00
