EXHAUST VALVE (MODEL R)

RG125F 1993 (P) (E01 E15 E17 E18 E34)

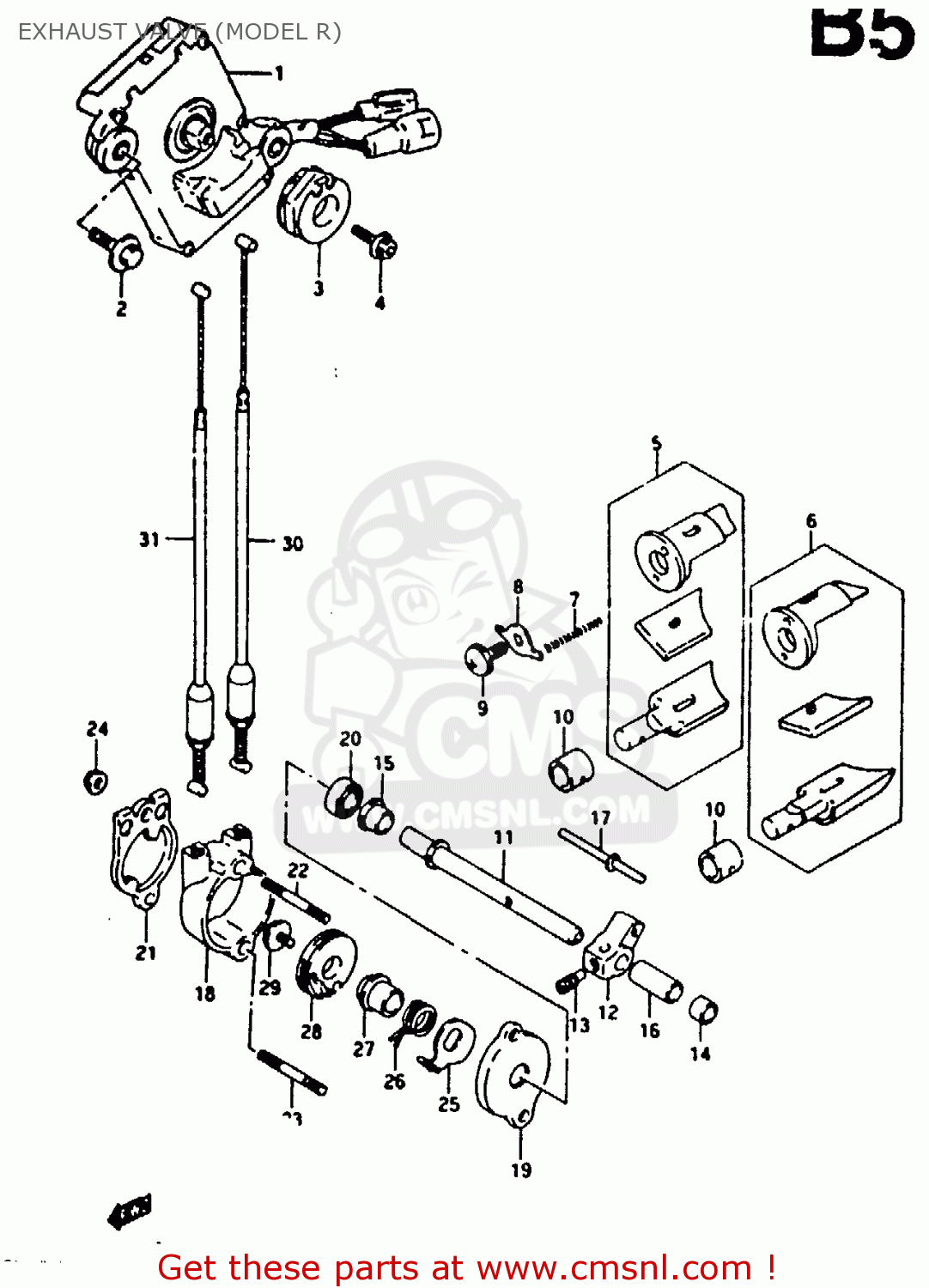

Exhaust valve (model r) diagram RG125F 1993 (P) (E01 E15 E17 E18 E34)

EXHAUST VALVE (MODEL R) RG125F 1993 (P) (E01 E15 E17 E18 E34)
EXHAUST VALVE (MODEL R) RG125F 1993 (P) (E01 E15 E17 E18 E34)
EXHAUST VALVE (MODEL R) RG125F 1993 (P) (E01 E15 E17 E18 E34)
prices are in EUR
ref
part #
description
quantity
1
3397019D10
ref: 1
ACTUATOR ASSY
3397019D10
€ 546.00
2
0911606025
ref: 2
BOLT(6X25)
0911606025
€ 2.50
3
1126920A04
ref: 3
PULLEY,CONTROLLER
1126920A04
€ 32.00
4
0712005203
ref: 4
BOLT
0712005203
€ 2.00
5-1
1120619D00
ref: 5-1
VALVE ASSY, EXHAUST RH
€ 183.00
5-2
1120619D10
ref: 5-2
E34
VALVE ASSY, EXHAUST RH
€ 199.50
6-1
1120719D00
ref: 6-1
VALVE ASSY, EXHAUST LH
€ 176.50
6-2
1120719D10
ref: 6-2
E34
VALVE ASSY, EXHAUST LH
€ 174.50
7
0944003011
ref: 7
SPRING
0944003011
€ 4.00
8
1127422D01
ref: 8
RETAINER,EXHAUST VALVE SPRING
1127422D01
€ 8.50
9
0214215123
ref: 9
SCREW
0214215123
€ 2.00
10
1126308D11
ref: 10
SPACER,EXHAUST VALVE
1126308D11
€ 13.00
11
1125819D00
ref: 11
SHAFT,EXHAUST VALVE
1125819D00
€ 29.00
12
1126400B23
ref: 12
ARM,EXHAUST VALVE SHAFT
1126400B23
€ 17.00
13
0913406013
ref: 13
SCREW(6X10)
0913406013
€ 4.50
14
0930008016
ref: 14
INCLUDED CYLINDER
BUSH(8X12X7)
0930008016
€ 3.50
15
1126512C00
ref: 15
BUSH,EXHAUST VALVE NO.2
1126512C00
€ 8.50
16
1128312C00
ref: 16
SPACER,EXHAUST VALVE SHAFT
1128312C00
€ 5.50
17
1125301B31
ref: 17
PIN,EXHAUST VALVE 48.5MM
1125301B31
€ 20.50
18
1126519D00
ref: 18
HOLDER,EXHAUST VALVE
€ 28.50
19
1123919D00
ref: 19
SPACER, HOLDER BASE
1123919D00
€ 13.00
20
0928208001
ref: 20
SEAL,OIL(8X16X5)
0928208001
€ 3.00
21
1125903D01
ref: 21
COVER,HOLDER
1125903D01
€ 19.00
22
0910806115
ref: 22
BOLT,STUD
€ 0.00
23
0142106408
ref: 23
STUD BOLT
€ 2.50
24
0831610063
ref: 24
NUT
0831610063
€ 2.50
25
1126703D00
ref: 25
LEVER,EXHAUST VALVE
1126703D00
€ 6.00
26
1128503D00
ref: 26
SPRING,EXHAUST VALVE LEVER
1128503D00
€ 6.00
27
1126803D00
ref: 27
SPACER,EXHAUST VALVE PULLEY
1126803D00
€ 9.00
28
1126619D00
ref: 28
PULLEY,EXHAUST VALVE
1126619D00
€ 18.00
29
0911805005
ref: 29
BOLT(5X12)
0911805005
€ 4.00
30
1127619D01
ref: 30
CABLE,EXHAUST VALVE NO.1
1127619D01
€ 14.50
31
1127719D01
ref: 31
CABLE,EXHAUST VALVE NO.2
1127719D01
€ 14.50
31
1126803D00
ref: 31
SPACER,EXHAUST VALVE PULLEY
1126803D00
€ 9.00
32
1126619D00
ref: 32
PULLEY,EXHAUST VALVE
1126619D00
€ 18.00
33
0911805005
ref: 33
BOLT(5X12)
0911805005
€ 4.00
34
1127619D01
ref: 34
CABLE,EXHAUST VALVE NO.1
1127619D01
€ 14.50
35
1127719D01
ref: 35
CABLE,EXHAUST VALVE NO.2
1127719D01
€ 14.50
