STAND - REAR BRAKE

RG125F 1993 (P) (E01 E15 E17 E18 E34)

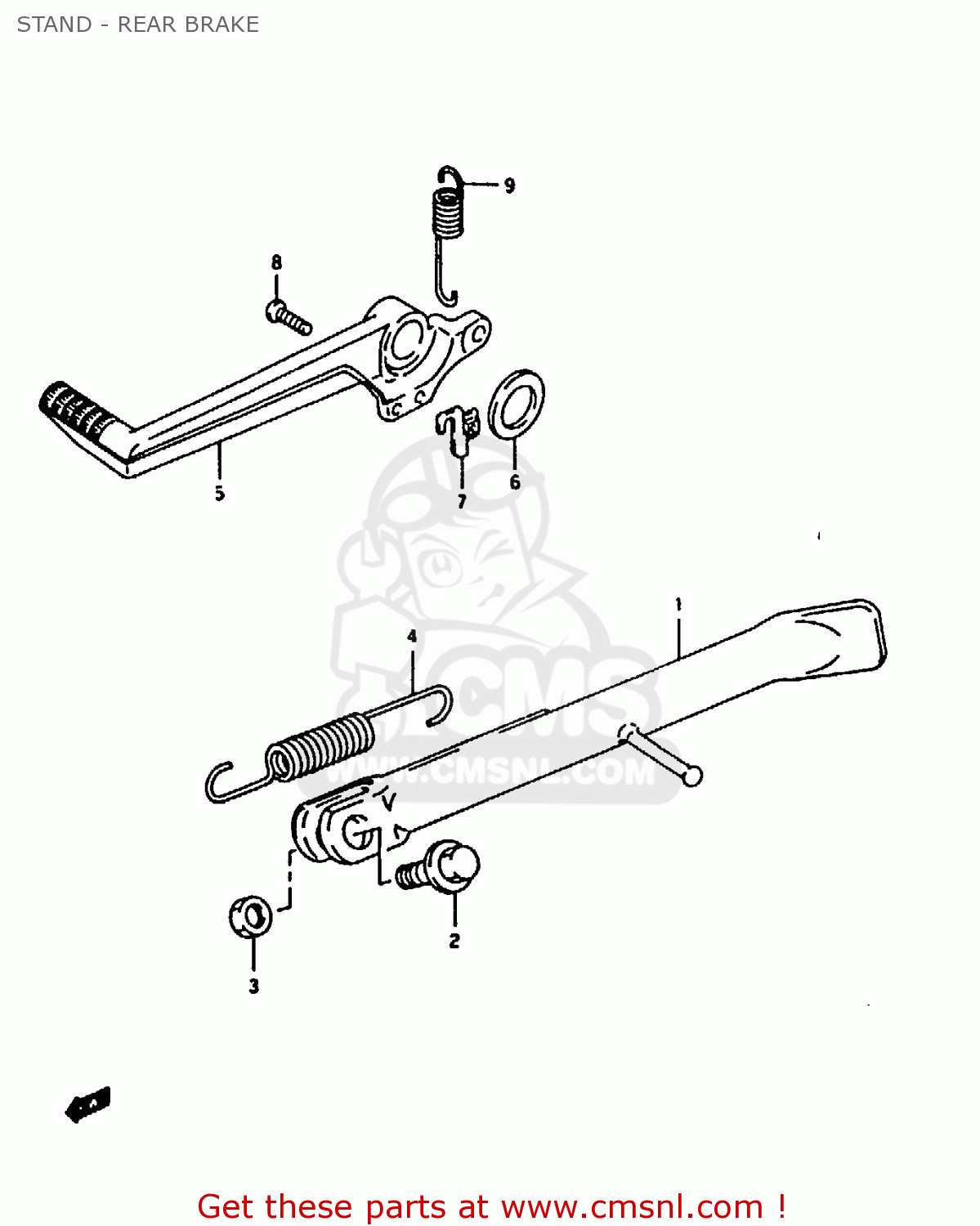

Stand - rear brake diagram RG125F 1993 (P) (E01 E15 E17 E18 E34)

prices are in EUR

ref

part #

description

quantity

1-1

4231019D00
ref: 1-1

STAND, PROP

€ 72.00

1-2

4231019D10
ref: 1-2
E2, E15, E18

STAND,PROP

€ 61.00

0911110046
ref: 2

BOLT(10X30)

€ 2.50

3-1

0831022107
ref: 3-1
MODEL N/P

NUT

€ 2.50

3-2

0915910097
ref: 3-2
MODEL R

NUT

€ 5.00

4-1

0944314063
ref: 4-1

SPRING

€ 0.00

4-2

0944314042
ref: 4-2
E2, E15, E18

SPRING

€ 7.50

4-3

0944312043
ref: 4-3
E2, E15, E18

SPRING

€ 3.50

4311119D00
ref: 5

PEDAL, BRAKE

€ 80.50

6-1

0916118003
ref: 6-1
MODEL N/P

WASHER(18.2X27X1)

€ 3.00

6-2

0916018022
ref: 6-2
MODEL R

WASHER(18X24X1)

€ 3.00

4356019D00
ref: 7

BRACKET, SPRING

€ 6.00

0211205168
ref: 8

SCREW

€ 2.50

9-1

0944313016
ref: 9-1
MODEL N

SPRING

€ 3.00

9-2

0944313030
ref: 9-2
MODEL P/R

SPRING

€ 3.00
