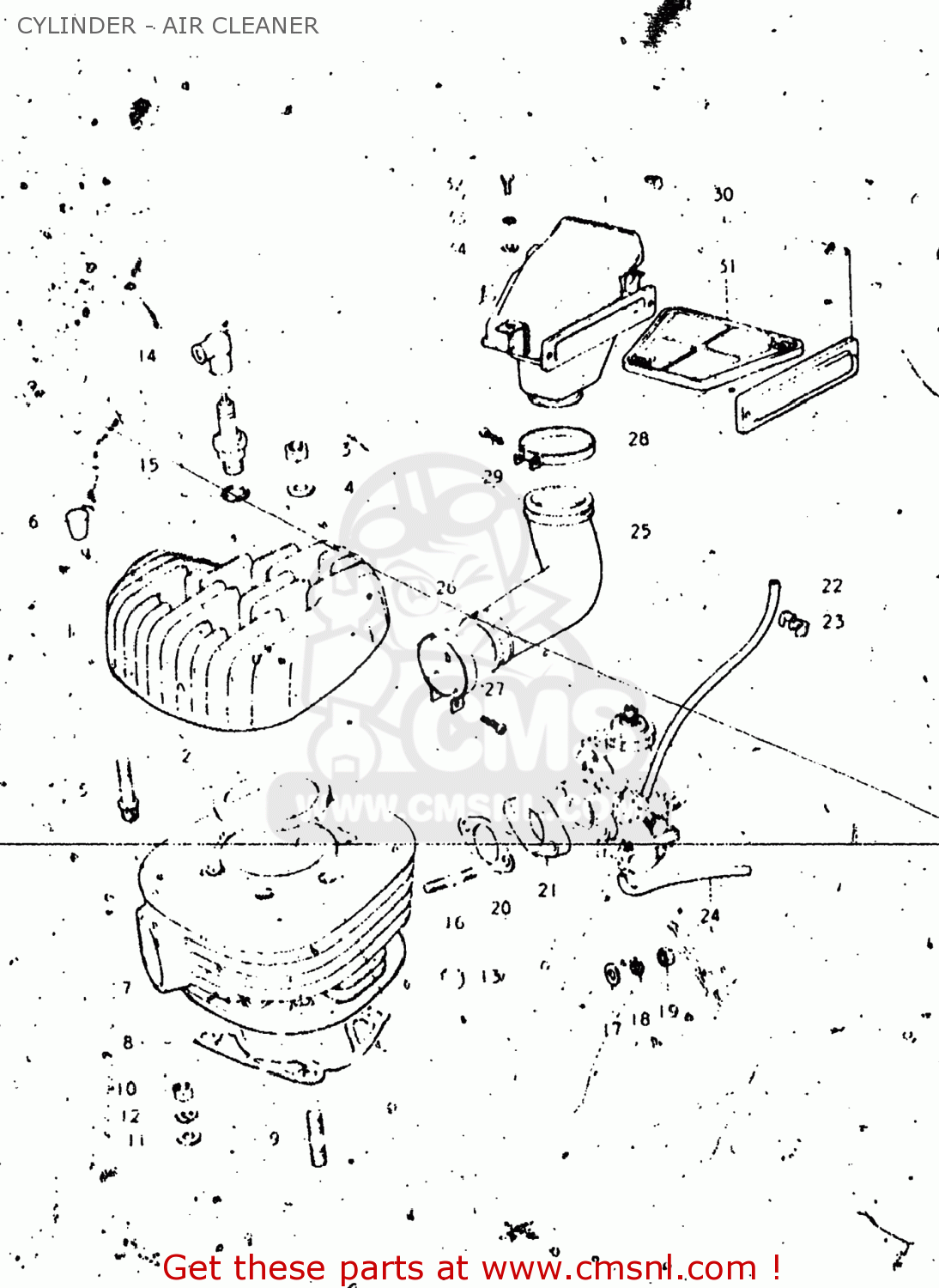

CYLINDER - AIR CLEANER - RL250 EXACTA TRIALS 1974 (L) USA (E03)

ref

part #

description

quantity

0-1

1140030830
ref: 0-1
11400-30831

GASKET SET (MCA)

€ 101.00

0-2

1140030831
ref: 0-2

GASKET SET (MCA)

€ 101.00

1

1111138001
ref: 1

HEAD,CYLINDER

€ 0.00

2

1114116300
ref: 2

GASKET,CYLINDER HEAD (NAS)

€ 13.00

3

0914008005
ref: 3
09140-08017

NUT (8MM)

€ 1.50

4

0832221088
ref: 4
08322-01087

WASHER

€ 2.00

5

0910808018
ref: 5

BOLT,STUD

€ 4.00

6

1115125000
ref: 6
11252-25000

PAD,CYLINDER HEAD

€ 5.00

7

1121038000
ref: 7

CYLINDER

€ 0.00

8

1124130000
ref: 8
11241-30001

GASKET,CYLINDER (MCA)

€ 6.00

9

0142110308
ref: 9
01421-1030A

STUD 10X30

€ 2.50

10

0831211108
ref: 10
08310-00107

NUT

€ 2.50

11

0832211108
ref: 11
08322-01107

WASHER

€ 2.50

12

0832121108
ref: 12
08321-01107

LOCK WASHER

€ 2.00

13

1125238000
ref: 13
11252-38001

PAD,CYLINDER

€ 3.50

14

3351028300
ref: 14

CAP ASSEMBLY,SPARK PLUG

€ 19.50

15-1

0948200055
ref: 15-1

SPARK PLUG

€ 5.00

15-2

0948200046
ref: 15-2

SPARK PLUG

€ 19.50

16

0142108358
ref: 16
01421-0835A

STUD BOLT

€ 2.00

17

0832211088
ref: 17
08322-01087

WASHER

€ 2.00

18

0832121088
ref: 18
08321-01087

LOCK WASHER

€ 2.00

19

0831211088
ref: 19
08310-00087

NUT

€ 2.00

20

1312530000
ref: 20

GASKET,CARBURETOR (NAS)

€ 6.50

21

1312930000
ref: 21

INSULATOR,CARBURETOR

€ 8.50

22

0934303009
ref: 22
09352-30503-600

HOSE

€ 8.00

23

0940800005
ref: 23

CLIP

€ 2.50

24

0934303013
ref: 24

HOSE

€ 8.00

25-1

1388138000
ref: 25-1
13881-38001

TUBE,AIR CLEANER OUTLET

€ 31.00

25-2

1388138001
ref: 25-2

TUBE,AIR CLEANER OUTLET

€ 31.00

26

0940200246
ref: 26
09402-52306

CLAMP

€ 6.00

27

0211105207
ref: 27
02112-05207

SCREW

€ 3.00

28

0940258304
ref: 28

CLAMP

€ 5.00

29

0321104258
ref: 29
03211-0425B

SCREW TAPP.

€ 2.00

30

1370038610
ref: 30

CLEANER ASSEMBLY,AIR

€ 37.00

31

1378038010
ref: 31

FILTER,AIR CLEANER

€ 0.00

32-1

0111206168
ref: 32-1
01500-06167

BOLT

€ 3.00

32-2

0111206128
ref: 32-2
01500-06127

BOLT

€ 2.00

33

0832121068
ref: 33
08321-01067

LOCK WASHER

€ 2.50

34

0832221068
ref: 34
08322-01067

WASHER

€ 2.00

CYLINDER - AIR CLEANER

all assemblies
