FRAME
RL250 EXACTA TRIALS 1974 (L) USA (E03)

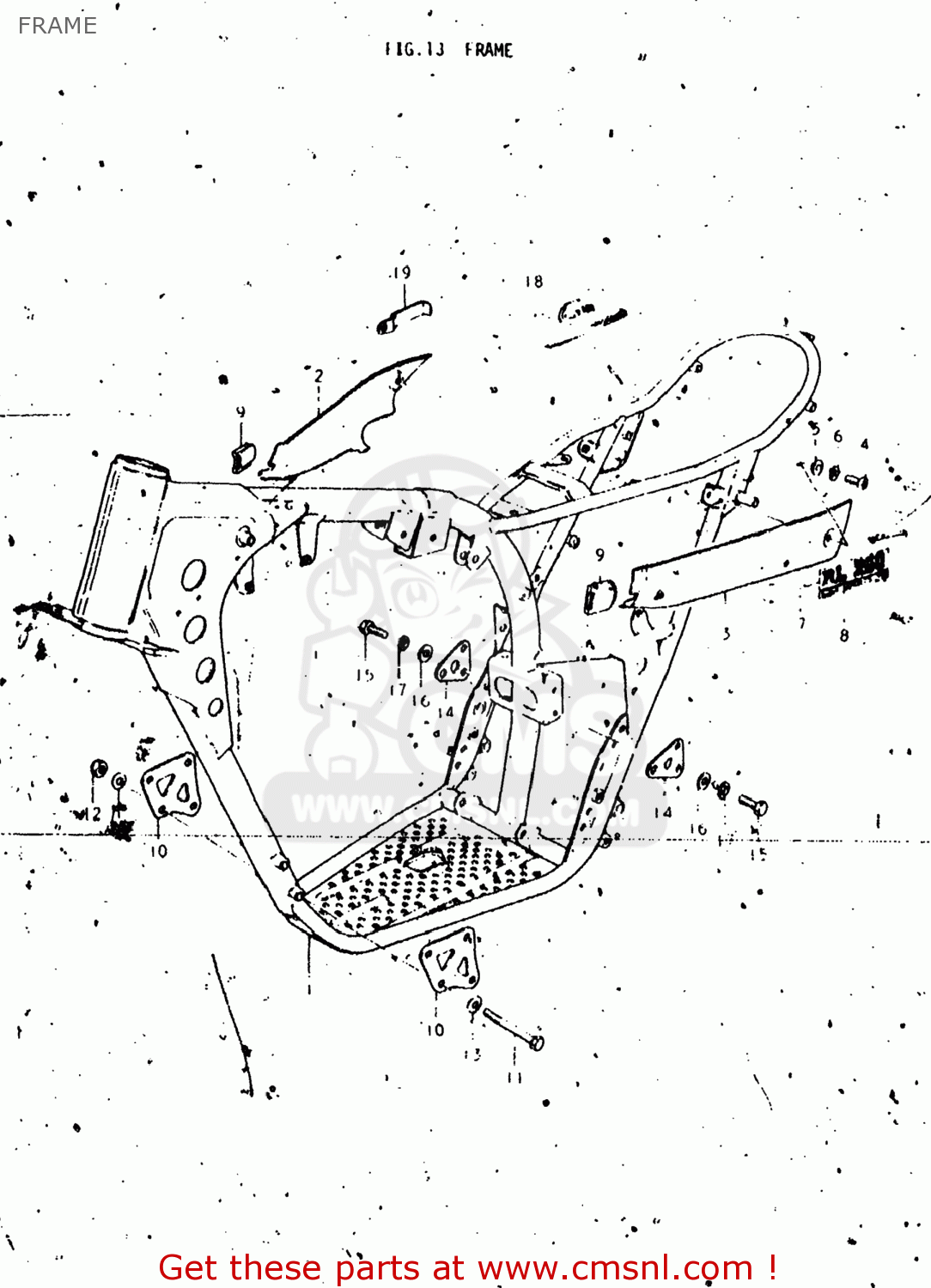

Frame diagram RL250 EXACTA TRIALS 1974 (L) USA (E03)
FRAME RL250 EXACTA TRIALS 1974 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110038000126
ref: 1
41100-38001-126
FRAME
€ 0.00
2
4711138000714
ref: 2
COVER,FRAME,RIGHT
€ 0.00
3
4721138000714
ref: 3
COVER,FRAME,LEFT
€ 0.00
4
0214106127
ref: 4
02142-06127
SCREW 6X12
€ 1.50
5
0916906010
ref: 5
WASHER
€ 3.00
6
0832121068
ref: 6
08321-01067
LOCK WASHER
€ 2.50
7
6814138000002
ref: 7
EMBLEM,FRAME COVER
€ 0.00
8
6836326200
ref: 8
LABEL,COMPANY NAME
€ 7.50
9
4711738000
ref: 9
CUSHION,FRAME COVER
€ 2.00
10
4159138000126
ref: 10
PLATE,ENGINE MOUNTING
€ 4.50
11
0112208758
ref: 11
01500-0875B
BOLT,8X75
€ 3.00
12
0915908020
ref: 12
NUT
€ 2.50
13
0832211088
ref: 13
08322-01087
WASHER
€ 2.00
14
4159238000126
ref: 14
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
15
0112708168
ref: 15
01550-08167
BOLT,LOWER
€ 3.00
16
0832211088
ref: 16
08322-01087
WASHER
€ 2.00
17
0832121088
ref: 17
08321-01087
LOCK WASHER
€ 2.00
18-1
0980000142
ref: 18-1
09800-00028
09800-00028
€ 8.00
18-2
0980000028
ref: 18-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 8.00
19
0940304302
ref: 19
CLAMP
€ 0.00
