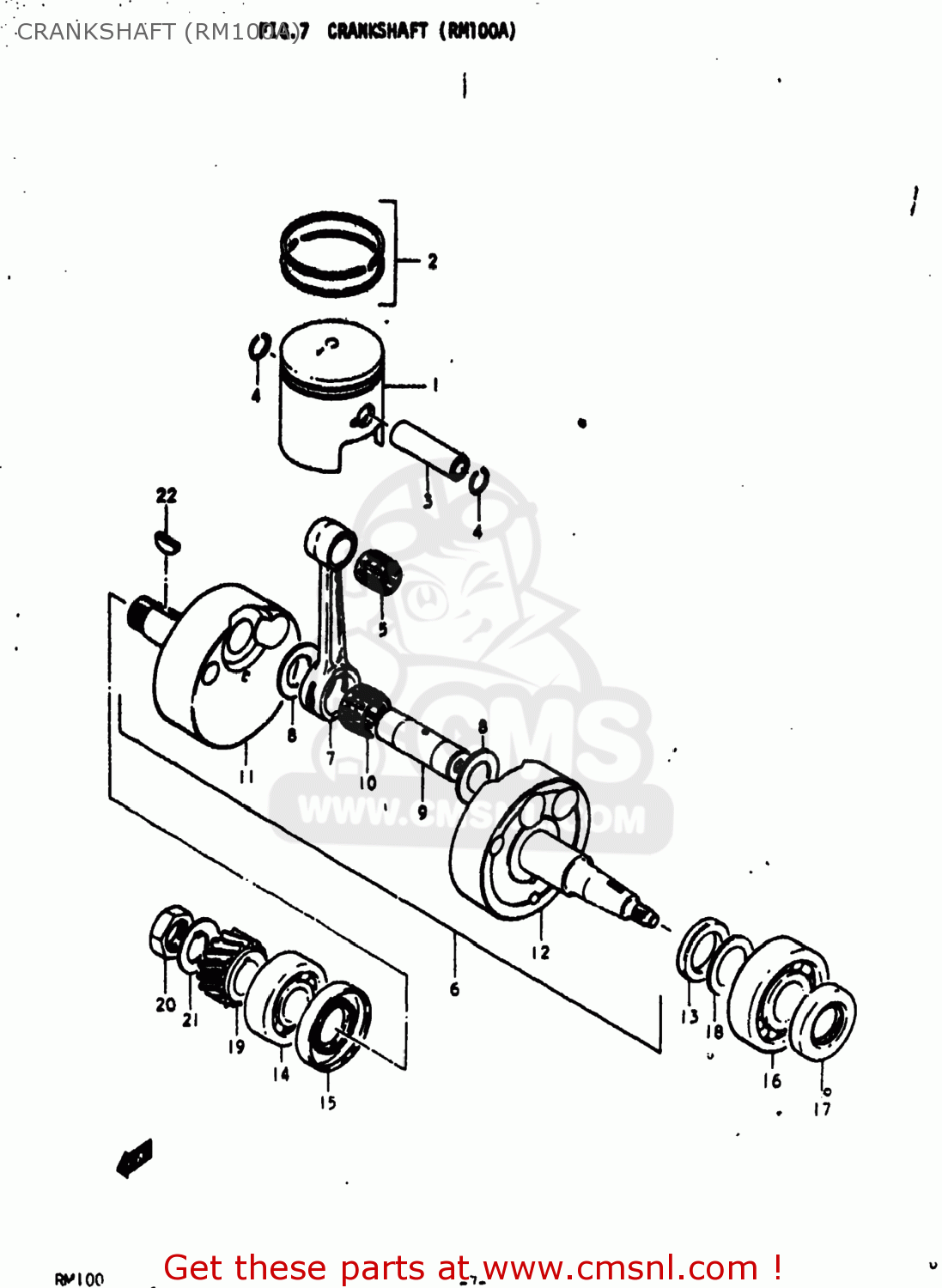

CRANKSHAFT (RM100A)

ref

part #

description

quantity

1-1

1211028614
ref: 1-1

PISTON

€ 21.50

1-2

1211028770
ref: 1-2
12110-28614-025

PISTON

€ 16.00

1-3

1211028623
ref: 1-3
12110-28614-050

PISTON

€ 123.00

2-1

1214028630
ref: 2-1

RING SET,PISTON

€ 52.00

2-2

1214028750
ref: 2-2
12140-28630-025

RING SET,PISTON

€ 16.50

2-3

1214028640
ref: 2-3
12140-28630-050

RING SET,PISTON

€ 50.50

3

1215107000
ref: 3
12151-23400

PIN,PISTON 14MM

€ 10.00

4

0938114001
ref: 4

RING,SNAP 14MM

€ 1.50

5

0926314006
ref: 5
09263-14022

BEARING

€ 10.00

6

1220041001
ref: 6

CRANKSHAFT ASSEMBLY

€ 201.00

7

1216112000
ref: 7
12161-39300

CONNECTING ROD

€ 54.50

8

0916019001
ref: 8

WASHER(19X32X1)

€ 3.50

9

1221141000
ref: 9
12211-48001

PIN,CRANK

€ 30.00

10

0926319007
ref: 10
09263-19009

BEARING

€ 15.00

11

1222128002
ref: 11
12221-28003

CRANKSHAFT

€ 64.50

12

1226141000
ref: 12
12261-41001

CRANKSHAFT,LEFT

€ 76.00

13

0918025041
ref: 13

SPACER

€ 4.50

14

0926220009
ref: 14
09262-20073

BEARING

€ 19.00

15

0928326007
ref: 15

SEAL,OIL(26X52X8)

€ 7.50

16

0926225049
ref: 16

BEARING(25X62X17)

€ 28.50

17

0928325037
ref: 17
09283-25066

OIL SEAL

€ 7.00

18

0822225366
ref: 18
08221-25363

SHIM(25X36X0.8)

€ 2.50

19

2111141000
ref: 19

GEAR,PRIMARY DRIVE

€ 43.50

20

0914018002
ref: 20

NUT

€ 3.50

21

0916418001
ref: 21

WASHER

€ 3.00

22

0834131059
ref: 22

KEY

€ 3.00
