Buy Suzuki RM Parts Online
home
FRONT FORK (RM100A
RM100 1976 (A) USA (E03)

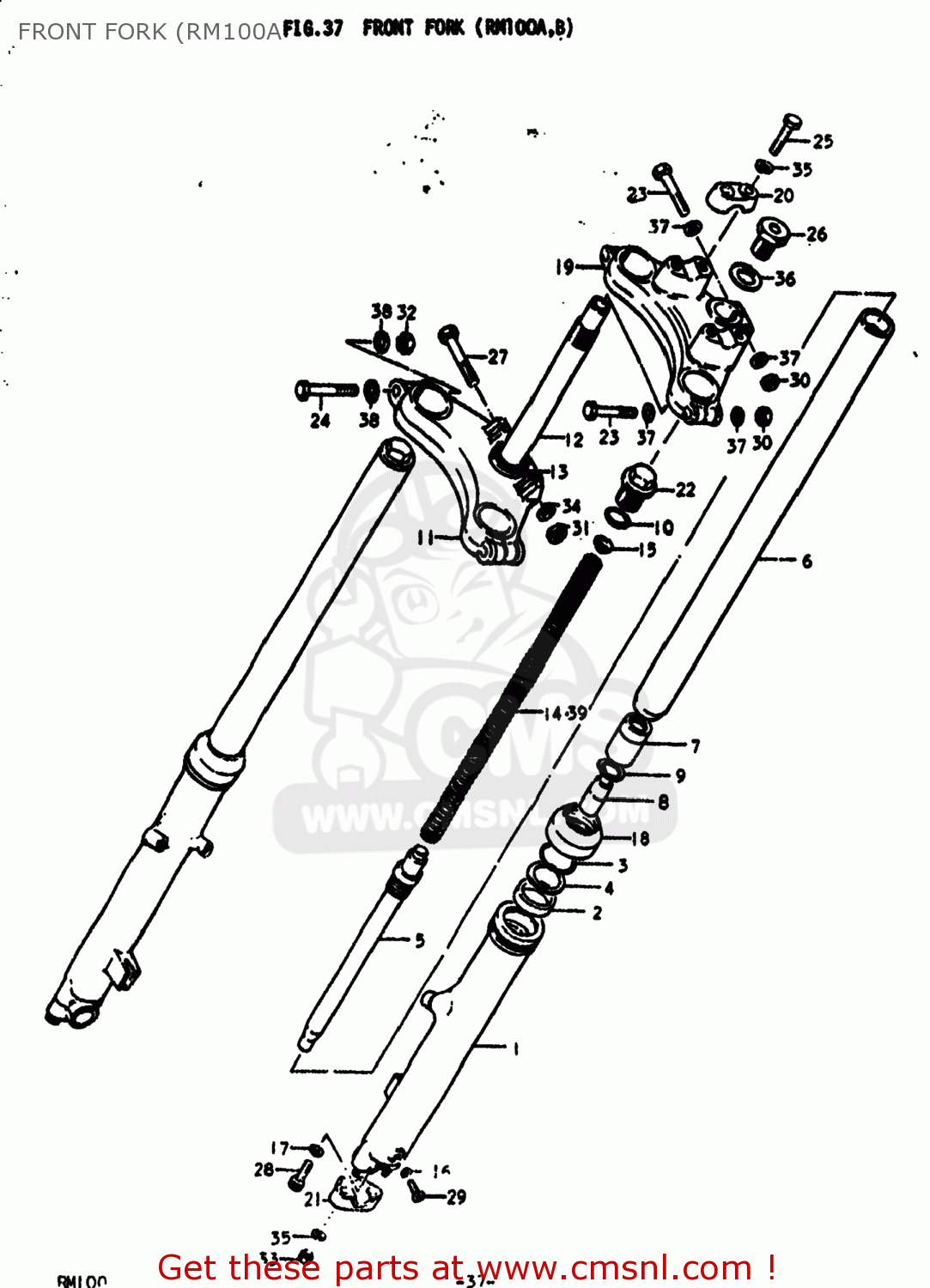

Front fork (rm100a diagram RM100 1976 (A) USA (E03)
FRONT FORK (RM100A RM100 1976 (A) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0-1
5110041600
ref: 0-1
51100-41602
DAMPER SET
€ 0.00
0-2
5110041601
ref: 0-2
51100-41602
DAMPER SET
€ 0.00
0-3
5110041602
ref: 0-3
DAMPER SET
€ 0.00
1
5114036011
ref: 1
TUBE,OUTER,LEFT
€ 87.00
2
5115308011
ref: 2
SEAL,OIL
€ 10.50
3
5115636010
ref: 3
RING,SNAP
€ 5.50
4
5115836010
ref: 4
WASHER,FRONT FORK
€ 4.00
5
5114628312
ref: 5
CYLINDER,FRONT FORK
€ 30.00
6
5111128311
ref: 6
TUBE,FORK,INNER
€ 57.50
7
5111228311
ref: 7
PISTON
€ 0.00
8
5119528311
ref: 8
PIECE,OIL LOCK
€ 6.50
9
5111828312
ref: 9
SNAP RING
€ 2.50
10
5118125010
ref: 10
51181-29400
O-RING,FORK INNER TUBE
€ 2.50
11
5141141600
ref: 11
STEM,STEERING
€ 0.00
12
5140132110
ref: 12
STEM,STEERING
€ 59.50
13
5162133001
ref: 13
RACE,STEERING OUTER LWR
€ 10.00
14-1
5117141600
ref: 14-1
SPRING
€ 9.50
14-2
5117141601
ref: 14-2
SPRING
€ 0.00
14-3
5117141602
ref: 14-3
SPRING
€ 15.00
15
5117225210
ref: 15
GUIDE,SPRING
€ 0.00
16
5118303010
ref: 16
GASKET,DRAIN,PLUG (NAS)
€ 3.00
17-1
5114834010
ref: 17-1
51148-36011
GASKET
€ 4.00
17-2
5114836011
ref: 17-2
GASKET (NAS)
€ 4.00
18
5117325010
ref: 18
SEAL,DUST
€ 10.00
19
5131141600
ref: 19
HEAD,STEERING STEM
€ 0.00
20
5621127100
ref: 20
HOLDER,HANDLEBAR
€ 12.50
21
5113216511
ref: 21
HOLDER,AXLE
€ 11.50
22
5135125011
ref: 22
BOLT,FR FORK
€ 16.50
23
0112208508
ref: 23
01500-08507
Bolt 8X50
€ 3.00
24
0112112558
ref: 24
01500-1255B
BOLT
€ 3.00
25
0122108357
ref: 25
01204-08357
Bolt
€ 3.50
26
5135128310
ref: 26
CAP
€ 6.50
27
0112210608
ref: 27
01500-1060A
BOLT
€ 3.50
28
5114731011
ref: 28
BOLT
€ 3.50
29
0211104087
ref: 29
02112-04087
SCREW
€ 1.50
30
0831221088
ref: 30
08310-00087
NUT
€ 2.00
31
0831212108
ref: 31
08310-00107
NUT
€ 2.50
32
0831211128
ref: 32
09140-12039
NUT
€ 3.00
33
0914008005
ref: 33
09140-08017
NUT (8MM)
€ 1.50
34
0832121108
ref: 34
08321-01107
LOCK WASHER
€ 2.00
35
0832121088
ref: 35
08321-01087
LOCK WASHER
€ 2.00
36
5135628310
ref: 36
WASHER,STEM HEAD
€ 2.50
37
0832221088
ref: 37
08322-01087
WASHER
€ 2.00
38
0832211128
ref: 38
08322-01127
WASHER
€ 2.00
39
5117141710
ref: 39
SPRING
€ 0.00
39
5117141710
ref: 39
SPRING
€ 0.00
