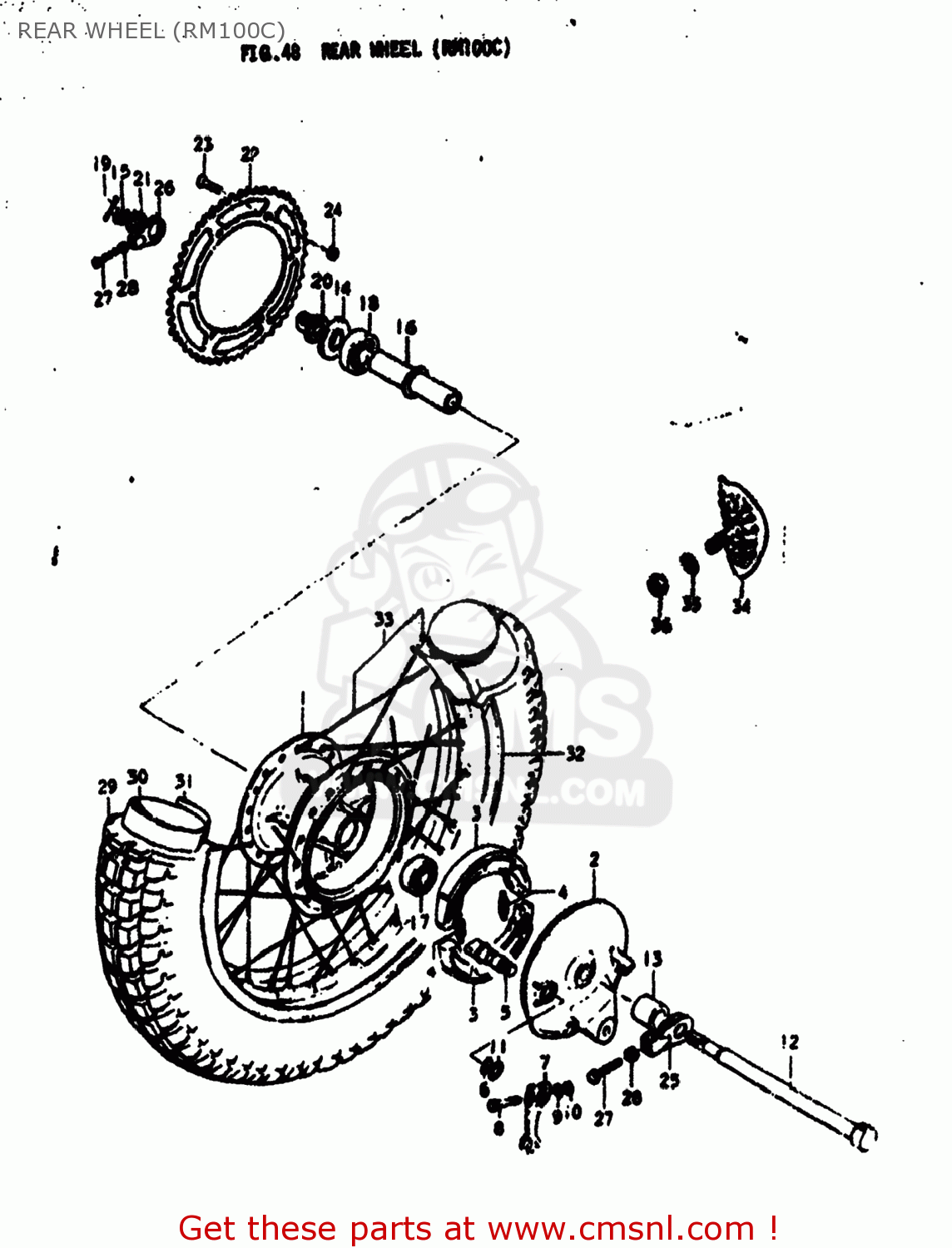

REAR WHEEL (RM100C)

ref

part #

description

quantity

1

6411041320
ref: 1

HUB COMP,REAR

€ 153.50

2

6421028305
ref: 2
64210-28004

PANEL,REAR HUB

€ 106.50

3

5441007002
ref: 3
54401-07810

SHOE,BRAKE

€ 35.00

4

0944307001
ref: 4
09443-07025

SPRING(L:34)

€ 2.50

5

5444101002
ref: 5

CAM,FR BRAKE

€ 19.50

6

0928012001
ref: 6

O RING(D:2.5,ID:11.4)

€ 2.50

7

6445128600
ref: 7

LEVER,REAR BRAKE CAM

€ 15.50

8

0910006050
ref: 8
09100-06150

BOLT

€ 1.50

9

0832221068
ref: 9
08322-01067

WASHER

€ 2.00

10

0831011068
ref: 10
08310-00067

NUT

€ 2.50

11

0916012011
ref: 11

WASHER(12.5X20X1)

€ 1.50

12

6471128001
ref: 12
64711-4130V

AXLE,REAR

€ 78.50

13

0918015038
ref: 13

SPACER(15.2X22X26)

€ 7.00

14

6475028000
ref: 14

SPACER,RR AXLE,L

€ 11.50

15

0831441128
ref: 15
08314-4012A

NUT, REAR AXLE

€ 2.50

16

6473028001
ref: 16

SPACER,RR WHEEL HUB BEARING

€ 9.00

17

0814362020
ref: 17
08143-62027

BEARING

€ 12.50

18

0812363020
ref: 18
08123-63027

BEARING

€ 19.00

19

0411130308
ref: 19
04111-3030A

COTTER PIN

€ 1.50

20

6479128001
ref: 20

SPACER,CHAIN ADJUSTER,L

€ 12.00

21

0914018005
ref: 21
09140-18501

NUT

€ 3.00

22-1

6451141010
ref: 22-1
64511-41011

SPROCKET,REAR

€ 80.00

22-2

6451141060
ref: 22-2
64511-41061

SPROCKET,REAR

€ 26.50

22-3

6451141040
ref: 22-3
64511-41041

SPROCKET,REAR

€ 34.00

23

0912008003
ref: 23
09120-08004

SCREW

€ 3.00

24

0915908021
ref: 24

NUT

€ 1.50

25

6141028004
ref: 25

ADJUSTER,CHAIN,R

€ 8.00

26

6142028003
ref: 26

ADJUSTER,CHAIN,L

€ 11.00

27

0910008146
ref: 27

BOLT(8X40)

€ 2.50

28

0831012088
ref: 28
08310-00087

NUT

€ 2.00

29

6510041311
ref: 29
65100-14130

TIRE

€ 0.00

30

6520041310
ref: 30
65200-42AA0

TUBE ASSEMBLY,WHEEL,INNER

€ 34.00

31

6526116510
ref: 31
65261-33030

PROTECTOR,WHEEL,INNER

€ 5.50

32

6531141320
ref: 32
65311-40200

RIM,REAR WHEEL

€ 119.00

33

6530041871
ref: 33
65300-41872

SPOKE SET,REAR

€ 29.50

34

6527030001
ref: 34
65270-43D00

STOPPER,BEAD

€ 30.50

35

0832211088
ref: 35
08322-01087

WASHER

€ 2.00

36

0831012085
ref: 36
08310-0008A

NUT ,8MM

€ 1.50
