CARBURETOR
RM100 1981 (X)

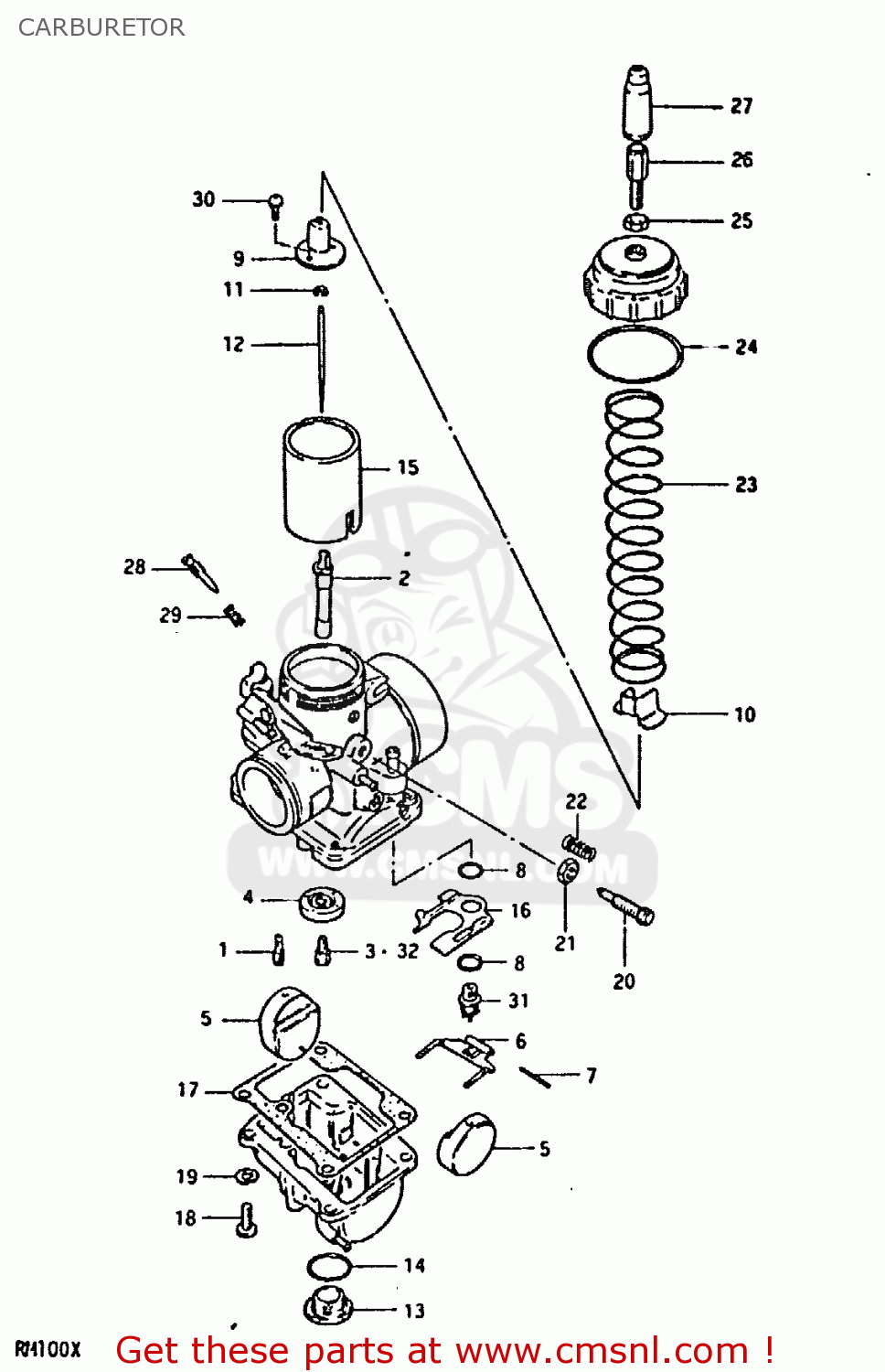

Carburetor diagram RM100 1981 (X)
CARBURETOR RM100 1981 (X)
×
prices are in EUR
ref
part #
description
quantity
0
1320040210
ref: 0
MODEL N
CARBURETOR ASSEMBLY
€ 0.00
0
1320040230
ref: 0
MODEL T
CARBURETOR ASSEMBLY
€ 0.00
0
1320041540
ref: 0
MODEL X
CARBURETOR ASSEMBLY
€ 0.00
1
0949230003
ref: 1
JET
€ 8.50
2-1
0949400226
ref: 2-1
MODEL N
JET,NEEDLE
€ 0.00
2-2
0949400249
ref: 2-2
MODEL T
JET,NEEDLE
€ 17.00
2-3
0949400296
ref: 2-3
MODEL X
JET,NEEDLE
€ 0.00
3-1
0949138003
ref: 3-1
MODEL N
JET
€ 10.00
3-2
0949150003
ref: 3-2
MODEL T
JET
€ 12.50
3-3
0949140004
ref: 3-3
MODEL X
JET
€ 11.50
4
1333140200
ref: 4
RING,MAIN JET FIXING
€ 8.00
5
1325216600
ref: 5
FLOAT
€ 17.50
6
1325340200
ref: 6
ARM,FLOAT
€ 10.00
7
1325401010
ref: 7
PIN,FLOAT
€ 3.00
8
1339216600
ref: 8
GASKET,MAIN JET HOLDER (NAS)
€ 3.00
9
1358140200
ref: 9
CONNECTOR
€ 7.00
10
1362940200
ref: 10
COVER,HOLDER
€ 4.00
11
1339410010
ref: 11
CLIP
€ 4.50
12-1
1338341620
ref: 12-1
MODEL N
NEEDLE JET
€ 0.00
12-2
1338341500
ref: 12-2
MODEL T
NEEDLE JET
€ 17.00
12-3
1338341530
ref: 12-3
MODEL X
NEEDLE JET
€ 0.00
13
1324740200
ref: 13
PLUG
€ 9.50
14
1324941320
ref: 14
GASKET,DRAIN PLUG
€ 5.00
15
1355140200
ref: 15
VALVE,THROTTLE
€ 50.00
16
1325940200
ref: 16
PLATE
€ 0.00
17
1325130110
ref: 17
GASKET,FLOAT CAHMBER (NAS)
€ 8.50
18
0211205168
ref: 18
SCREW
€ 2.50
19
0832121058
ref: 19
LOCK WASHER
€ 2.00
20
1326715110
ref: 20
ADJUSTER
€ 7.50
21
1366116600
ref: 21
MODEL N, T
NUT
€ 5.00
22
1326803110
ref: 22
MODEL X
SPRING,THROTTLE SCREW
€ 3.50
23
1357341610
ref: 23
SPRING,THROTTLE VALVE RETURN
€ 8.50
24
1326640200
ref: 24
O-RING,MIXING CHAMBER
€ 0.00
25
1366116600
ref: 25
NUT
€ 5.00
26-1
1357703010
ref: 26-1
MODEL N, T, TO 13577
ADJUSTER,CABLE
€ 8.00
26-2
1357715010
ref: 26-2
MODEL X
ADJUSTER,CABLE
€ 4.00
27
1368116601
ref: 27
CAP
€ 7.00
28
1326915010
ref: 28
SCREW,PILOT AIR
€ 10.50
29
1326801010
ref: 29
SPRING
€ 3.50
30
0211203088
ref: 30
SCREW
€ 1.50
31
1337016600
ref: 31
VALVE ASSY,NEEDLE
€ 45.00
32-1
0949136003
ref: 32-1
OPT
JET
€ 15.00
32-2
0949142001
ref: 32-2
OPT
JET,MAIN (210)
€ 11.00
32-3
0949148001
ref: 32-3
OPT
JET
€ 13.00
32-4
0949152001
ref: 32-4
OPT
JET
€ 7.50
32-5
0949154001
ref: 32-5
OPT
JET
€ 11.50
