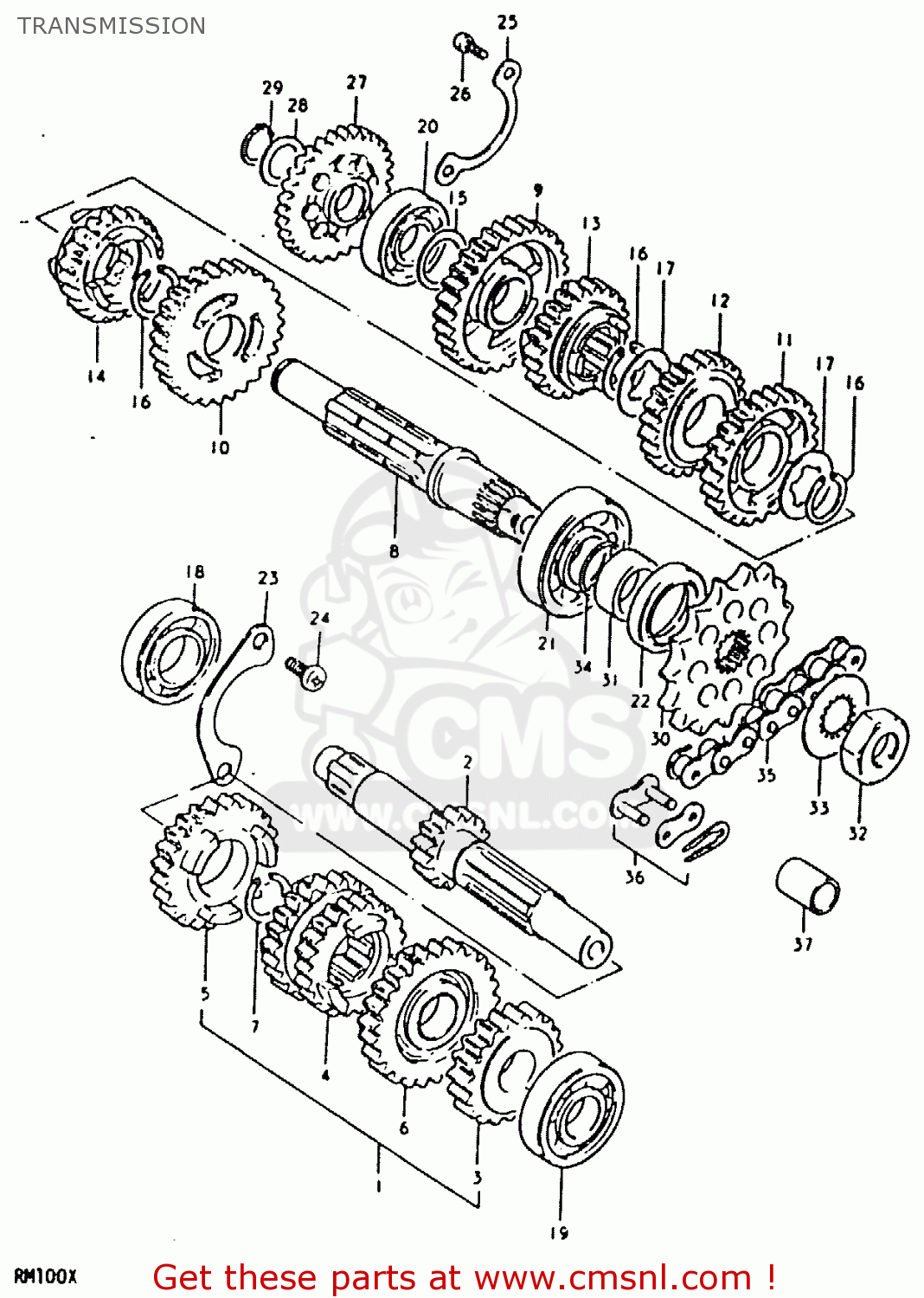

TRANSMISSION

ref

part #

description

quantity

1-1

2412040200
ref: 1-1
MODEL N, T, TO 24120

SHAFT,COUNTER

€ 134.50

1-2

2412040201
ref: 1-2
MODEL X

SHAFT,COUNTER

€ 134.50

2

2412140200
ref: 2

SHAFT,COUNTER

€ 55.00

3-1

2422141301
ref: 3-1
MODEL N, T, TO 24221

GEAR,SECOND DRIVE

€ 29.00

3-2

2422141302
ref: 3-2
MODEL X

GEAR,SECOND DRIVE

€ 29.00

4

2423141300
ref: 4

GEAR,THIRD DRIVE

€ 146.00

5

2425141300
ref: 5

GEAR,FIFTH DRIVE

€ 103.50

6

2426041301
ref: 6

GEAR,SIXTH DRIVE

€ 55.50

7

0938020007
ref: 7

CIRCLIP

€ 3.00

8-1

2413141302
ref: 8-1
MODEL N, T, TO 24131

SHAFT,DRIVE

€ 112.00

8-2

2413141303
ref: 8-2
MODEL X

SHAFT,DRIVE

€ 112.00

9

2431041300
ref: 9

GEAR,FIRST DRIVEN

€ 65.50

10

2432141300
ref: 10
TO 25321-41310

GEAR,SECOND DRIVEN

€ 17.00

11-1

2433141301
ref: 11-1
MODEL N, T, TO 24331

GEAR,THIRD DRIVEN

€ 51.50

11-2

2433141302
ref: 11-2
MODEL X

GEAR,THIRD DRIVEN

€ 51.50

12

2434141303
ref: 12

GEAR,FOURTH DRIVEN

€ 66.00

13

2435141301
ref: 13

GEAR,FIFTH DRIVEN

€ 68.50

14

2436141300
ref: 14

GEAR,SIXTH DRIVEN

€ 39.50

15

0821115241
ref: 15

WASHER,THRUST

€ 4.00

16

0938020007
ref: 16

CIRCLIP

€ 3.00

17

0916720011
ref: 17

WASHER,LOCK

€ 2.50

18

0811362040
ref: 18

Bearing

€ 28.00

19

0811360020
ref: 19

BEARING

€ 14.00

20

0811362020
ref: 20

BEARING, RH

€ 14.50

21

0926220043
ref: 21

BEARING(20X47X14)

€ 27.00

22

0928325035
ref: 22

SEAL,OIL(25X40X7)

€ 6.50

23

2474148000
ref: 23

RETAINER,CNTR SHAFT BEARING

€ 5.50

24

0211206128
ref: 24

SCREW 6X12

€ 2.00

25

2475140200
ref: 25

PLATE,DRIVESHAFT BEARING

€ 3.00

26

0211206108
ref: 26

SCREW

€ 1.50

27

2626040200
ref: 27

GEAR,KICK STARTER IDLE

€ 32.50

28

0821115241
ref: 28

WASHER,THRUST

€ 4.00

29

0833131159
ref: 29

CIRCLIP,15MM

€ 2.00

30-1

2751141701
ref: 30-1
STD

SPROCKET,ENGINE(NT:13)

€ 20.00

30-2

2751141301
ref: 30-2
OPT

SPROCKET,ENGINE

€ 19.00

30-3

2751141711
ref: 30-3
OPT

SPROCKET,ENGINE

€ 23.50

31

0918020039
ref: 31

SPACER(20X25X12.5)

€ 9.50

32

0914016013
ref: 32

NUT

€ 14.00

33

0916720012
ref: 33

WASHER,LOCK

€ 2.50

34

0928020001
ref: 34

O RING(D:1,ID:19.5)

€ 2.00

35-1

2760041311
ref: 35-1
MODEL N, TO 27600-40

CHAIN,DRIVE #428TR-13

€ 0.00

35-2

2760040220
ref: 35-2
MODEL T, X

CHAIN ASSEMBLY,DRIVE

€ 0.00

36-1

2762028310
ref: 36-1

JOINT ASSEMBLY,CHAIN

€ 4.00

36-2

2762040220
ref: 36-2

JOINT(RK)

€ 7.00

37

0932013001
ref: 37

CUSHION

€ 6.00
