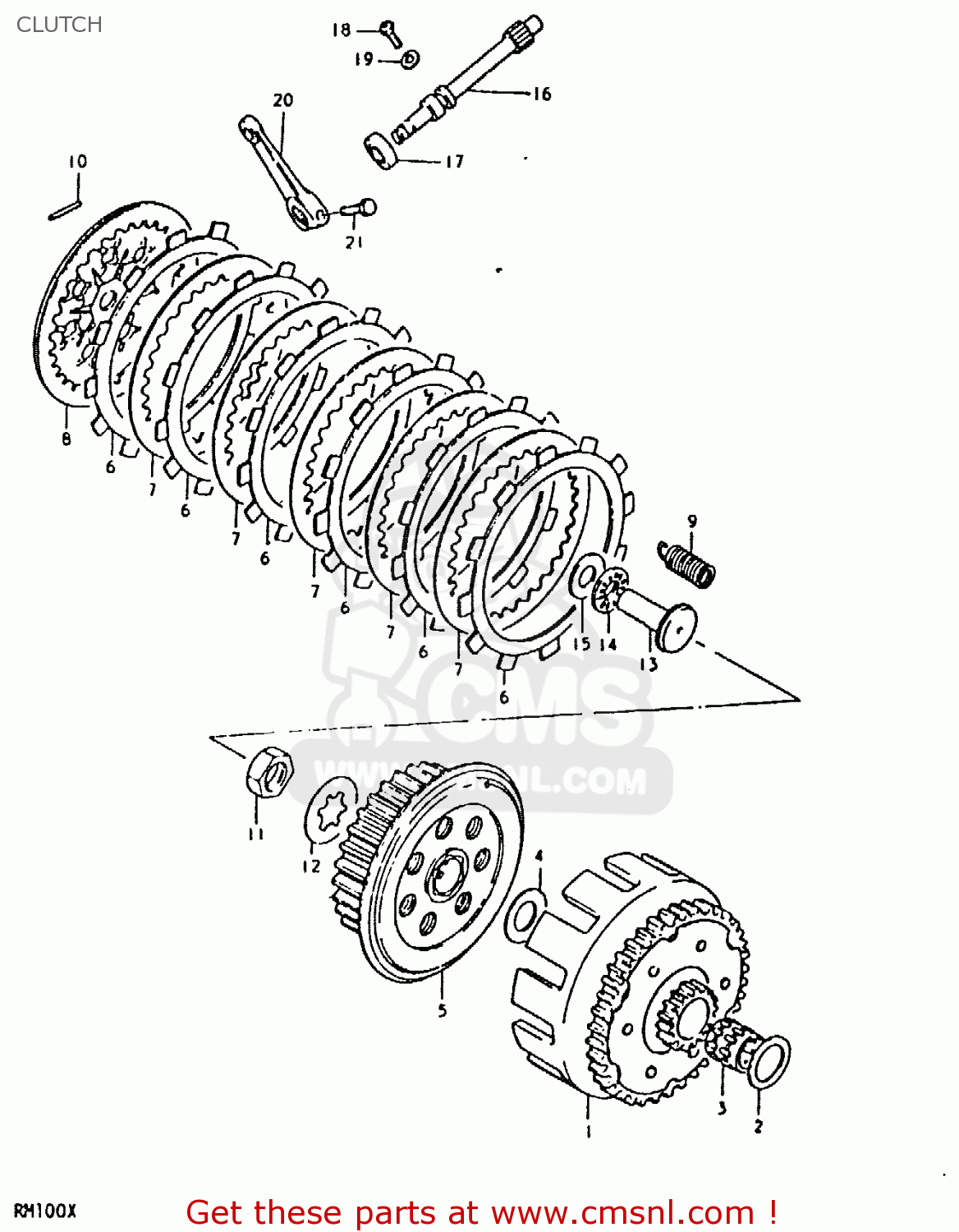

CLUTCH

ref

part #

description

quantity

1

2120040210
ref: 1
NT:60/17

GEAR ASSEMBLY,PRIMARY DRIVE

€ 0.00

2

0821120323
ref: 2

WASHER

€ 2.50

3

0926320023
ref: 3

BEARING(20X25X26)

€ 15.00

4

0821117342
ref: 4

WASHER

€ 3.00

5

2141028700
ref: 5

HUB,CLUTCH SLEEVE

€ 54.00

6

2144128300
ref: 6

PLATE,CLUTCH DRIVE

€ 8.50

7

2145141700
ref: 7

PLATE,CLUTCH DRIVEN

€ 4.50

8

2146240200
ref: 8

PLATE,CLUTCH PRESSURE

€ 15.00

9

0944312020
ref: 9

SPRING

€ 3.50

10

0926102001
ref: 10

PIN(2.5X19.8)

€ 1.50

11

0914010001
ref: 11

NUT

€ 2.50

12

0916717002
ref: 12

WASHER,LOCK

€ 2.00

13-1

2316540200
ref: 13-1
MODEL N, T

RACK,CLUTCH RELEASE

€ 20.00

13-2

2316528300
ref: 13-2
MODEL X

RACK,CLUTCH RELEASE

€ 20.00

14

0926310002
ref: 14

BEARING(10X22X2.8)

€ 8.50

15-1

0821110221
ref: 15-1
MODEL N

WASHER

€ 2.50

15-2

0916010021
ref: 15-2
MODEL T, X

WASHER(10.1X21.4X0.8)

€ 3.00

16-1

2326140200
ref: 16-1
MODEL N, T

PINION,CLUTCH RELEASE

€ 27.50

16-2

2326141301
ref: 16-2
MODEL X

PINION,CLUTCH RELEASE

€ 27.50

17

0928410002
ref: 17

SEAL,OIL (10X17X5)

€ 3.50

18

0913506009
ref: 18

BOLT(6X12)

€ 2.00

19

0832221068
ref: 19

WASHER

€ 2.00

20

2327141300
ref: 20

ARM,CLUTCH RELEASE

€ 22.50

21

0110706168
ref: 21

BOLT, UPPER

€ 3.00

all assemblies
