FRONT FORK (RM125M)

RM125 1978 (C) USA (E03)

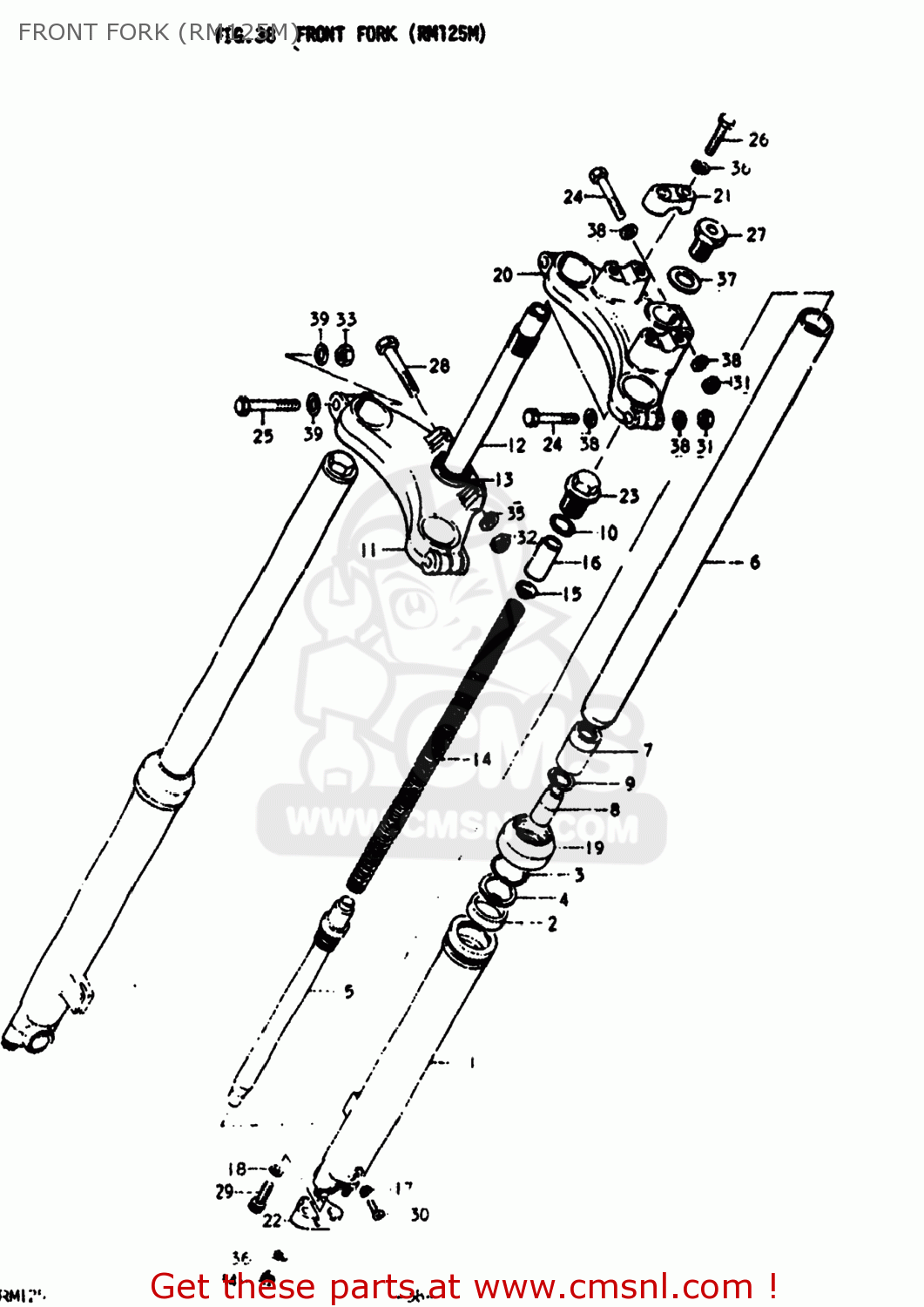

Front fork (rm125m) diagram RM125 1978 (C) USA (E03)

FRONT FORK (RM125M) RM125 1978 (C) USA (E03)
FRONT FORK (RM125M) RM125 1978 (C) USA (E03)
FRONT FORK (RM125M) RM125 1978 (C) USA (E03)
prices are in EUR
ref
part #
description
quantity
0
5110041011
ref: 0
DAMPER SET
€ 0.00
1
5114032111
ref: 1
TUBE,OUTER,LEFT
€ 49.00
2
5115334010
ref: 2
SEAL,OIL
5115334010
€ 15.00
3
5115632110
ref: 3
CIRCLIP,FORK OIL SEAL
€ 6.00
4
5115832110
ref: 4
RING,FORK BACK UP
€ 3.00
5
5114641011
ref: 5
CYLINDER,FRONT FORK
€ 20.00
6
5111141010
ref: 6
TUBE,FORK,INNER
€ 57.50
7
5111238010
ref: 7
PISTON,FORK INNER TUBE
€ 0.00
8
5119538010
ref: 8
PIECE,OIL LOCK
5119538010
€ 16.00
9
5111838010
ref: 9
RING
€ 0.00
10
5111716310
ref: 10
O RING
5111716310
€ 4.50
11
5141141010
ref: 11
STEM,STEERING
€ 45.50
12
5140132110
ref: 12
STEM,STEERING
€ 59.50
13
5162133001
ref: 13
RACE,STEERING OUTER LWR
5162133001
€ 10.00
14
5117141010
ref: 14
SPRING
€ 12.00
15
5117238010
ref: 15
GUIDE,FRONT FORK SPRING C
5117238010
€ 9.50
16
5117641010
ref: 16
SPACER,SPRING
€ 0.00
17
5118303010
ref: 17
GASKET,DRAIN,PLUG (NAS)
5118303010
€ 3.00
18
5114816510
ref: 18
GASKET (NAS)
5114816510
€ 2.00
19
5117332110
ref: 19
SEAL,DUST
5117332110
€ 13.00
20
5131141010
ref: 20
HEAD,STEERING STEM
€ 56.50
21
5621127100
ref: 21
HOLDER,HANDLEBAR
5621127100
€ 12.50
22
5113216510
ref: 22
HOLDER,AXLE
5113216510
€ 11.50
23
5135138010
ref: 23
51351-40210
BOLT,FORK
€ 14.00
24
0112208508
ref: 24
01500-08507
Bolt 8X50
€ 3.00
25
0112112558
ref: 25
01500-1255B
BOLT
€ 3.00
26
0122108357
ref: 26
01204-08357
Bolt
€ 3.50
27
5135128310
ref: 27
CAP
5135128310
€ 6.50
28
0112210608
ref: 28
01500-1060A
BOLT
0112210608
€ 3.50
29
5114716510
ref: 29
BOLT,FORK CYLINDER(10X25)
5114716510
€ 3.50
30
0211104087
ref: 30
02112-04087
SCREW
0211104087
€ 1.50
31
0831212088
ref: 31
08310-00087
NUT
€ 2.00
32
0831212108
ref: 32
08310-00107
NUT
€ 2.50
33
0831211128
ref: 33
09140-12039
NUT
€ 3.00
34
0914008005
ref: 34
09140-08017
NUT (8MM)
0914008005
€ 1.50
35
0832121108
ref: 35
08321-01107
LOCK WASHER
0832121108
€ 2.00
36
0832121068
ref: 36
08321-01067
LOCK WASHER
0832121068
€ 2.50
37
5135628310
ref: 37
WASHER,STEM HEAD
€ 2.50
38
0832221088
ref: 38
08322-01087
WASHER
0832221088
€ 2.00
39
0832211128
ref: 39
08322-01127
WASHER
0832211128
€ 2.00
