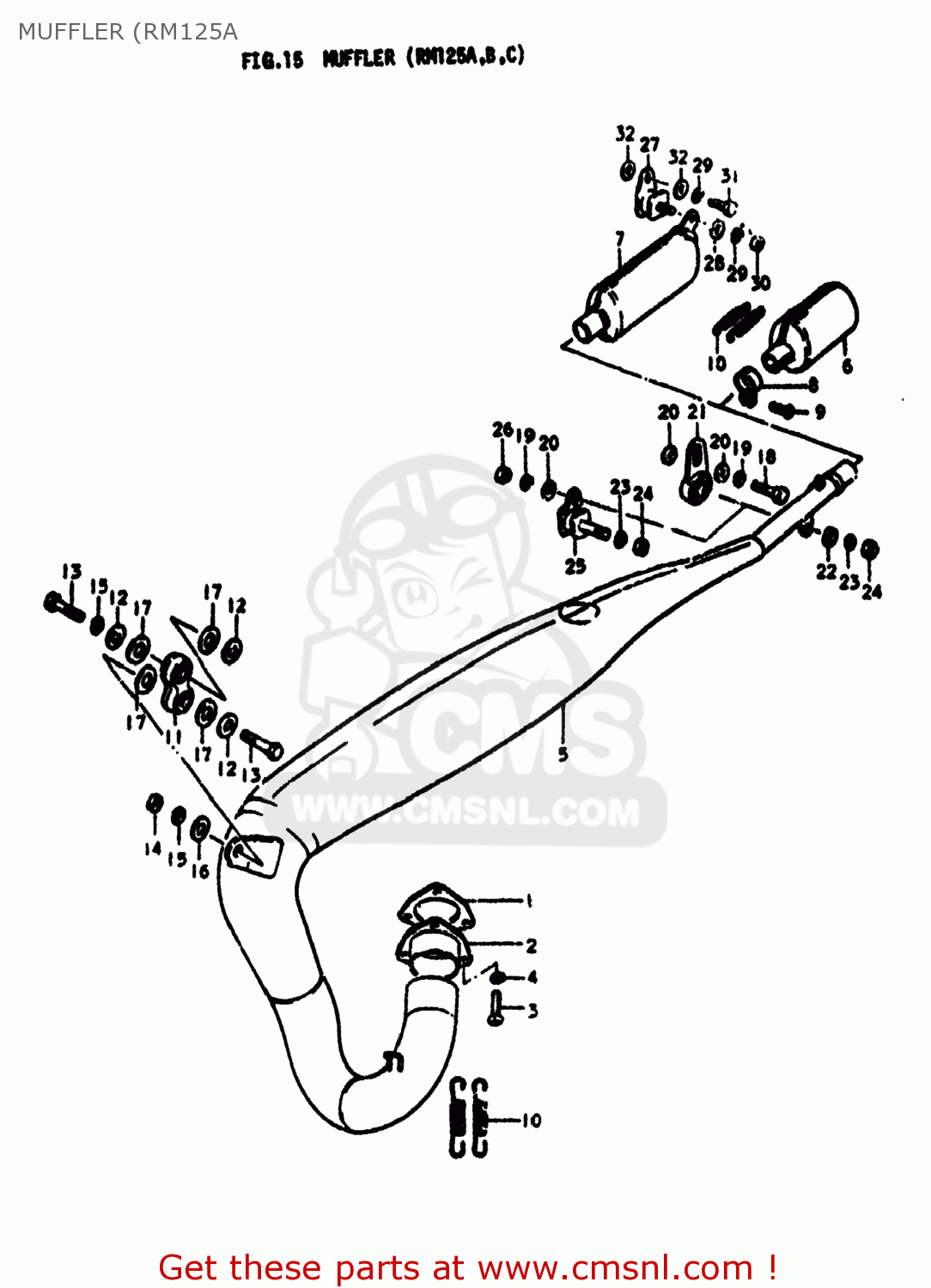

MUFFLER (RM125A

ref

part #

description

quantity

1

1418141300
ref: 1
14181-40200-H17

GASKET,EXHAUST PIPE (MCA)

€ 6.00

2

1417041300
ref: 2

FLANGE,EXHAUST PIPE

€ 44.50

3

0211206168
ref: 3
02112-06167

SCREW

€ 2.50

4

0832121068
ref: 4
08321-01067

LOCK WASHER

€ 2.50

5-1

1431041300
ref: 5-1

BODY,MUFFLER

€ 196.50

5-2

1431041301
ref: 5-2

MUFFLER ASSEMBLY,FIRST

€ 361.00

6

1433041300
ref: 6
14330-41760-H01

BODY,MUFFLER

€ 63.00

7

1433041601
ref: 7
14330-41601-H01

BODY,MUFFLER

€ 57.00

8

0940225601
ref: 8

CLAMP

€ 3.50

9

0912806006
ref: 9
09128-06057

BOLT(6X20)

€ 2.00

10

0944311002
ref: 10

SPRING

€ 4.50

11

1477040000
ref: 11

DAMPER,MUFFLER

€ 139.00

12

0916008035
ref: 12
09160-08130

WASHER

€ 2.00

13

0110708358
ref: 13
01500-0835B

BOLT

€ 3.50

14

0831012088
ref: 14
08310-00087

NUT

€ 2.00

15

0832121088
ref: 15
08321-01087

LOCK WASHER

€ 2.00

16

0832211088
ref: 16
08322-01087

WASHER

€ 2.00

17

0916113001
ref: 17

WASHER(13X28X1.6)

€ 2.50

18

0112208308
ref: 18
01500-08307

BOLT

€ 2.50

19

0832121088
ref: 19
08321-01087

LOCK WASHER

€ 2.00

20

0916008002
ref: 20
09160-08135

WASHER (8.5X29X1.6)

€ 2.00

21

1477016440
ref: 21
14700-40810

DAMPER,MUFFLER SUPPORT

€ 28.00

22

0832221088
ref: 22
08322-01087

WASHER

€ 2.00

23

0832121088
ref: 23
08321-01087

LOCK WASHER

€ 2.00

24

0831211088
ref: 24
08310-00087

NUT

€ 2.00

25

1477041320
ref: 25

DAMPER,MUFFLER SUPPORT

€ 10.00

26

0831211088
ref: 26
08310-00087

NUT

€ 2.00

27

1477041101
ref: 27

DAMPER,MUFFLER SUPPORT

€ 13.50

28

0832211088
ref: 28
08322-01087

WASHER

€ 2.00

29

0832121086
ref: 29
08321-0108A

WASHER,LOCK,8.

€ 2.50

30

0831012088
ref: 30
08310-00087

NUT

€ 2.00

31

0110708208
ref: 31
01500-08207

BOLT

€ 3.00

32

0916008010
ref: 32
09160-08054

WASHER (8.2X20X1.6)

€ 1.50

all assemblies
