REAR WHEEL (RM125M
RM125 1978 (C) USA (E03)

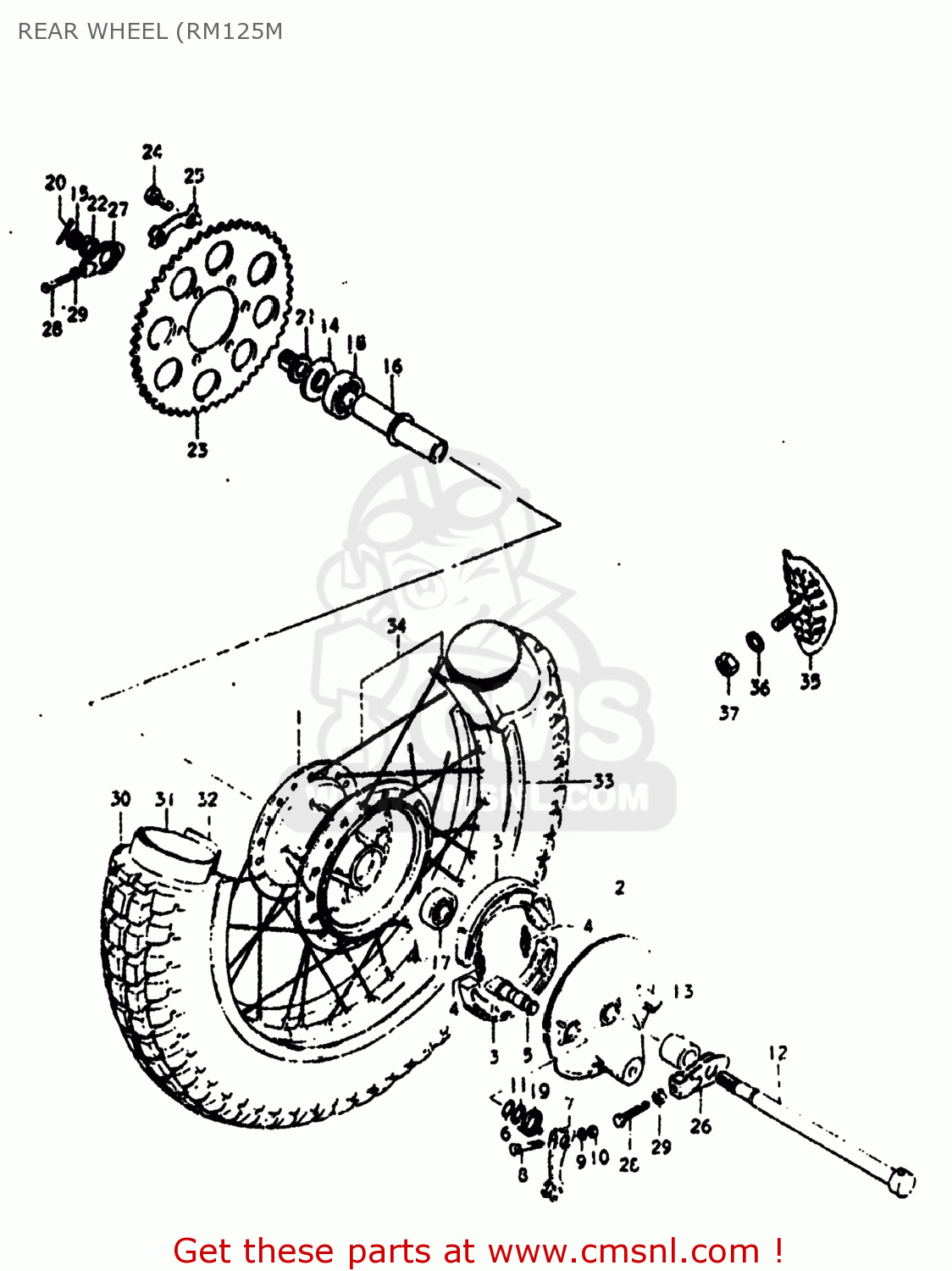

Rear wheel (rm125m diagram RM125 1978 (C) USA (E03)
REAR WHEEL (RM125M RM125 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411038001
ref: 1
64110-38002
HUB,REAR WHEEL
€ 357.00
2-1
6421028303
ref: 2-1
64210-28004
PANEL,REAR HUB
€ 106.50
2-1
6421028303
ref: 2-1
64210-28004
PANEL,REAR HUB
€ 106.50
2-2
6421028305
ref: 2-2
64210-28004
PANEL,REAR HUB
€ 106.50
3
5441007002
ref: 3
54401-07810
SHOE,BRAKE
€ 35.00
4
0944307001
ref: 4
09443-07025
SPRING(L:34)
€ 2.50
5
5444101002
ref: 5
CAM,FR BRAKE
€ 19.50
6
0928012001
ref: 6
O RING(D:2.5,ID:11.4)
€ 2.50
7-1
6445128000
ref: 7-1
LEVER,REAR BRAKE CAM
€ 14.50
7-2
6445128600
ref: 7-2
LEVER,REAR BRAKE CAM
€ 15.50
8
0910006050
ref: 8
09100-06150
BOLT
€ 1.50
9
0832221068
ref: 9
08322-01067
WASHER
€ 2.00
10
0831111068
ref: 10
08310-00067
NUT
€ 2.50
11
0916012011
ref: 11
WASHER(12.5X20X1)
€ 1.50
12
6471128001
ref: 12
64711-4130V
AXLE,REAR
€ 78.50
13
0918015038
ref: 13
SPACER(15.2X22X26)
€ 7.00
14
6475028000
ref: 14
SPACER,RR AXLE,L
€ 11.50
15
0831431128
ref: 15
08314-3112A
NUT 12MM
€ 2.00
16
6473028001
ref: 16
SPACER,RR WHEEL HUB BEARING
€ 9.00
17
0814362020
ref: 17
08143-62027
BEARING
€ 12.50
18
0812363020
ref: 18
08123-63027
BEARING
€ 19.00
19
0944827003
ref: 19
SPRING
€ 7.00
20
0411130308
ref: 20
04111-3030A
COTTER PIN
€ 1.50
21
6479128001
ref: 21
SPACER,CHAIN ADJUSTER,L
€ 12.00
22
0914018005
ref: 22
09140-18501
NUT
€ 3.00
23-1
6451141000
ref: 23-1
64511-41001
SPROCKET,REAR
€ 47.50
23-1
6451141000
ref: 23-1
64511-41001
SPROCKET,REAR
€ 47.50
23-2
6451141330
ref: 23-2
64511-41331
SPROCKET,REAR
€ 94.50
23-2
6451141330
ref: 23-2
64511-41331
SPROCKET,REAR
€ 94.50
23-3
6451141310
ref: 23-3
64511-41311
SPROCKET,REAR
€ 88.00
23-3
6451141310
ref: 23-3
64511-41311
SPROCKET,REAR
€ 88.00
23-4
6451141320
ref: 23-4
64511-41321
SPROCKET,REAR
€ 43.00
23-5
6451128300
ref: 23-5
64511-28301
SPROCKET,REAR
€ 69.00
24
0910008094
ref: 24
BOLT(8X30)
€ 2.50
25
0916908013
ref: 25
WASHER
€ 2.50
26-1
6141028002A
ref: 26-1
61410-28004
ADJUSTER,CHAIN
€ 8.00
26-2
6141028003
ref: 26-2
61410-28004
ADJUSTER,CHAIN
€ 8.00
27-1
6142028002
ref: 27-1
61420-28003
ADJUSTER,CHAIN
€ 11.00
27-2
6142028003
ref: 27-2
ADJUSTER,CHAIN,L
€ 11.00
28
0910008099
ref: 28
09100-08146
BOLT
€ 2.50
29
0831211088
ref: 29
08310-00087
NUT
€ 2.00
30-1
6510028310
ref: 30-1
TIRE
€ 0.00
30-2
6510041310
ref: 30-2
65100-14110
TIRE
€ 50.00
31-1
6520018010
ref: 31-1
65200-44AA0
TUBE ASSEMBLY,WHEEL,INNER
€ 35.00
31-2
6520041310
ref: 31-2
65200-42AA0
TUBE ASSEMBLY,WHEEL,INNER
€ 34.00
32
6526116510
ref: 32
65261-33030
PROTECTOR,WHEEL,INNER
€ 5.50
33
6531128322
ref: 33
RIM,REAR WHEEL
€ 86.00
34-1
6530028860
ref: 34-1
SPOKE SET,REAR
€ 39.50
34-2
6530041830
ref: 34-2
65300-41831
SPOKE SET,REAR
€ 33.50
35
6527030001
ref: 35
65270-43D00
STOPPER,BEAD
€ 30.50
36
0832211088
ref: 36
08322-01087
WASHER
€ 2.00
37
0831211088
ref: 37
08310-00087
NUT
€ 2.00
